Walnuts Infrared Optical Sorter / Walnut optical sorting machines

Home Infrared Color Sorter

Walnuts Infrared Optical Sorter / Walnut optical sorting machines

Near Infrared walnuts color sorter
Near Infrared walnuts color sorter
Near Infrared walnuts color sorter
Near Infrared walnuts color sorter

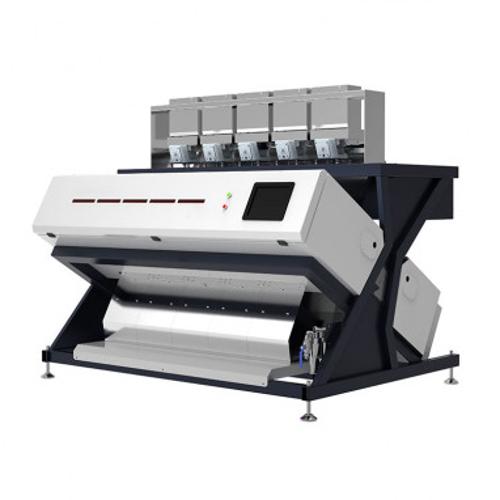

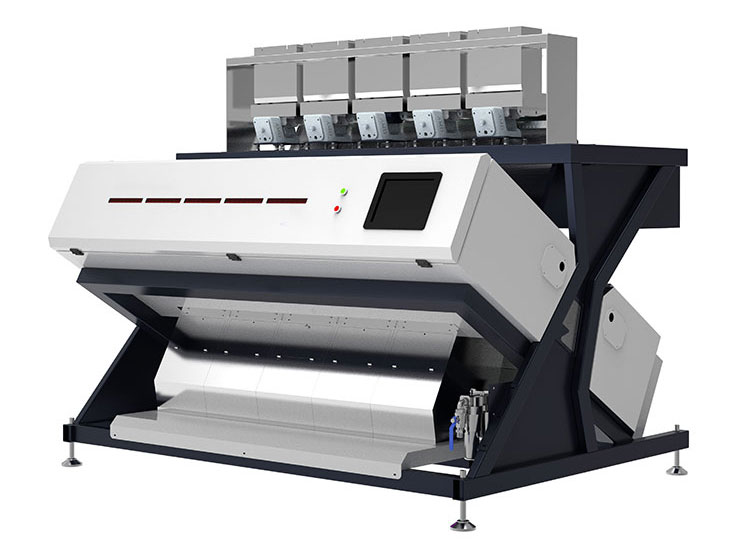

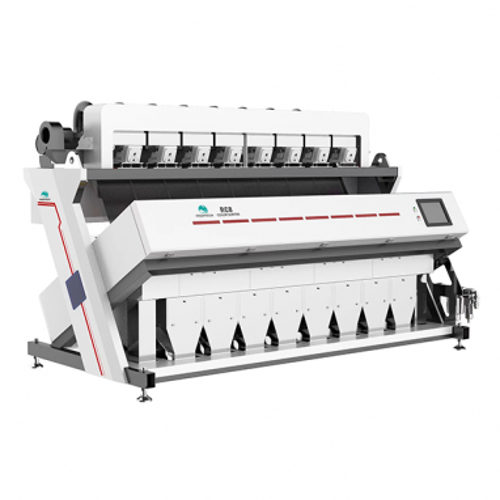

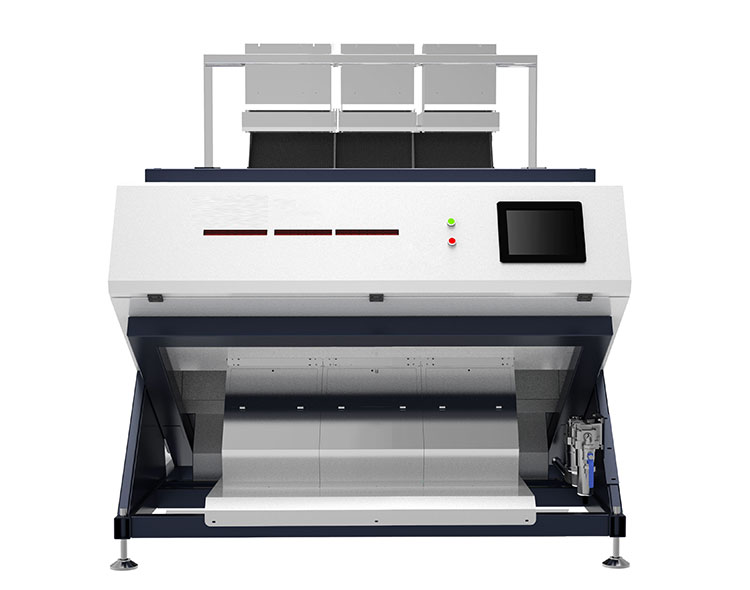

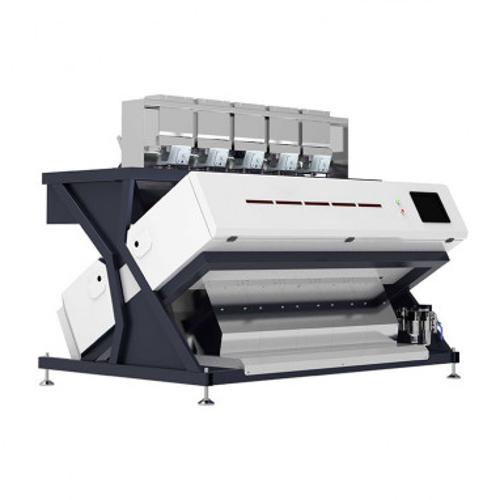

Walnuts Infrared Optical Sorter / Walnut optical sorting machines

NIR walnuts color sorter machine can separate kernel from shell even they are same colors .Big capacity with high accuracy with Infrared cameras.
  • Payment:

    T/T,L/C
  • Product Origin:

    Hefei,China
  • Shipping Port:

    Shanghai / Ningbo
  • Lead Time:

    Within 7-20 days
  • Product Name:

    Infrared walnuts color sorter
  • Warranty:

    2 years
  • Machine Function:

    Color/material/shape/size sorting
  • Certificate:

    CE

How to separate the shell from the kernel if they don't have color difference?



InGaAs technology - shell and foreign material removal.HIGHTECH Infrared Walnuts Optical Sorter is the machine with RGB and Infrared function.The machine is designed for the processor who need the highest standard quality and safety.



HIGHTECH Infrared Walnuts Optical Sortercould offer the perfect solution.RGB with InGaAs technology - shell and foreign material removal



Enhanced InGaAs technology can detect defects which cannot be seen in the visible spectrum providing much better separation of good product from foreign material of the same colour. Product modes can be pre-defined for effective shell removal from all types of nuts.



Walnuts Infrared  Optical Sorter Specification

Model

I1

I3

I5

Product Output(t/h)

0.5~1.5

1.5~3

2.5~4.5

Sorting Accuracy(%)

≥99

≥99

≥99

Weight(kg)

600

1028

1460

Power(kW)

2.5

3.7

5.9

Dimension L×W×H(mm×mm×mm)

1064×1707×1827

1554×1707×1827

2184×1707×1827

(Power Supply)(V/Hz)

220/50(110/60)

220/50(110/60)

220/50(110/60)


Our Advantages

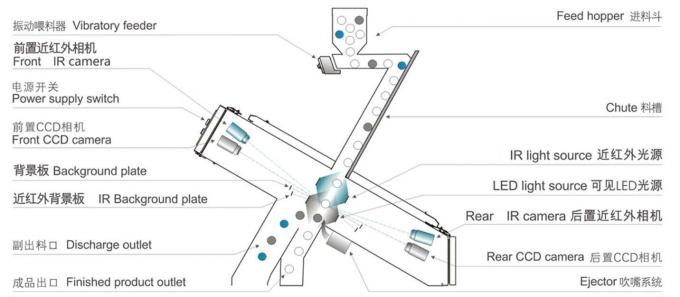

Based on prism splitting dual-band infrared light spectroscopy technology, it can effectively realize the separation of kernel shells from various nuts such as walnuts, almonds, peach kernels, pine nuts, and hazelnuts.

Perfect integration of visible-infrared composite technology, infrared and visible light are independently set, for black objects that cannot be recognized by infrared, visible light can be eliminated simultaneously.

Equipped with a high-performance halogen lamp constant temperature cooling system, the product stability is higher, and the sorting effect is more stable

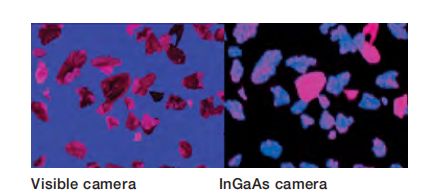

InGaAs technology enhancing difficult-to-detect foreign materials

InGaAs technology enhances visibility of defects so the high-definition cameras can detect them. Visibility is enhanced even for those defects that are the same color as good products, such as sclerotia in Walnuts





HIGHTECH provides sophisticated color sorting solutions for nut processors with stringent safety and quality requirement.



Our advanced optical sorting technology delivers superior performance in removing the challenging defects and foreign material from many types of nuts and dried fruit including peanuts,almonds,pistachios,

walnuts,pecans,cashews,pine nuts,hazelnuts,macadamia,Brazil nuts and raisins.



Our intelligent software that analyzes the pre-defined size, shape, and color of your product. It then removes unwanted product that does not meet these parameters. Typical applications include removing undersized, oversized, and broken particles





Packaging & Shipping

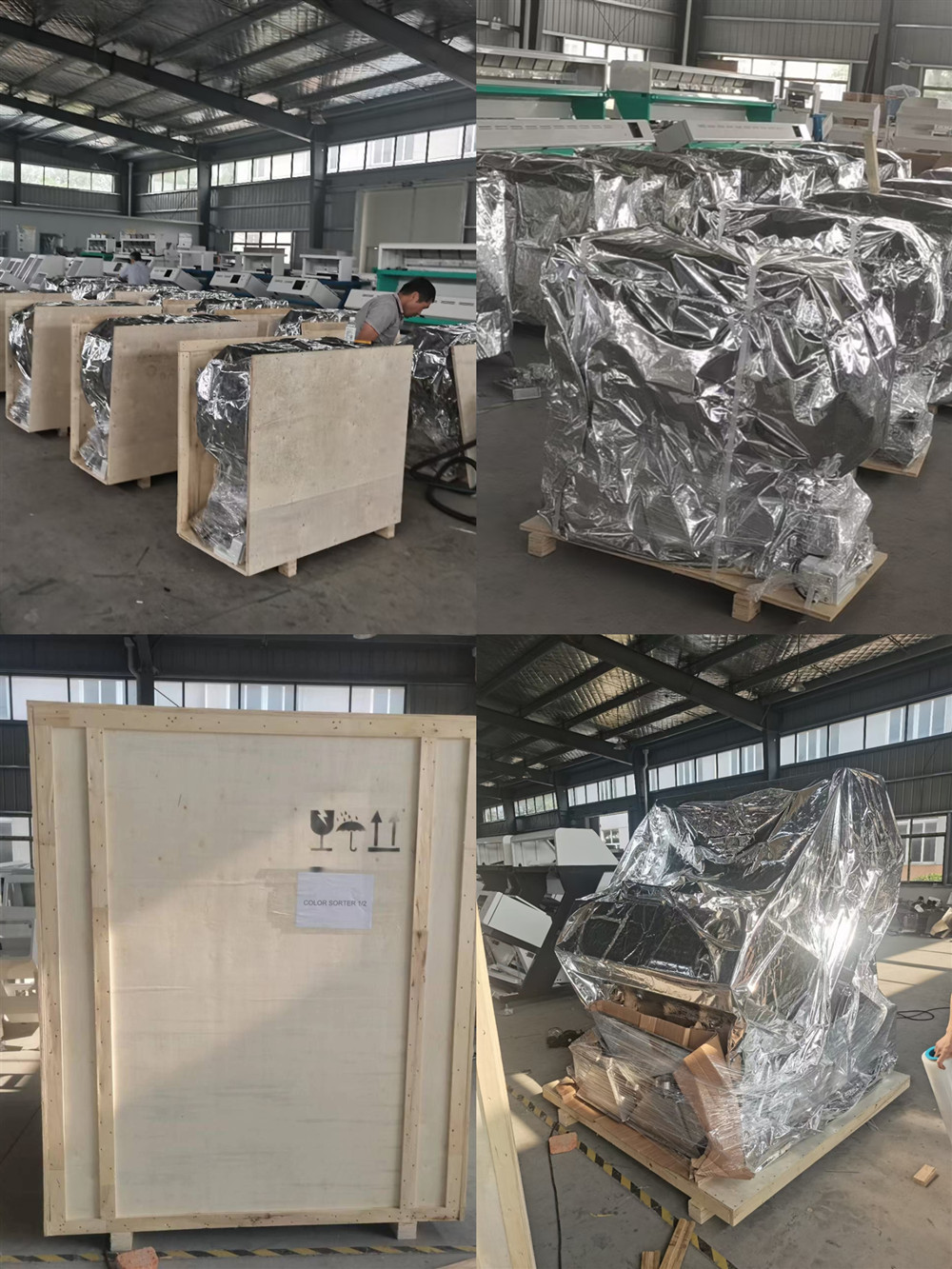

Machines to be carefully packaged to endure transp

Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.

Delivery Time: 10- 20 Days after order confirmed.

Payment Terms: TT, Letter of Credit.

Commissioning and Installation

1. On Site Installation and Training Service by our professional engineer ;

2. Study and Learn the Machine Operation in Our Factory.

3. Responsive in 24 hours: Telephone, Email, Video or On Site Solutions by our Technical Experts.

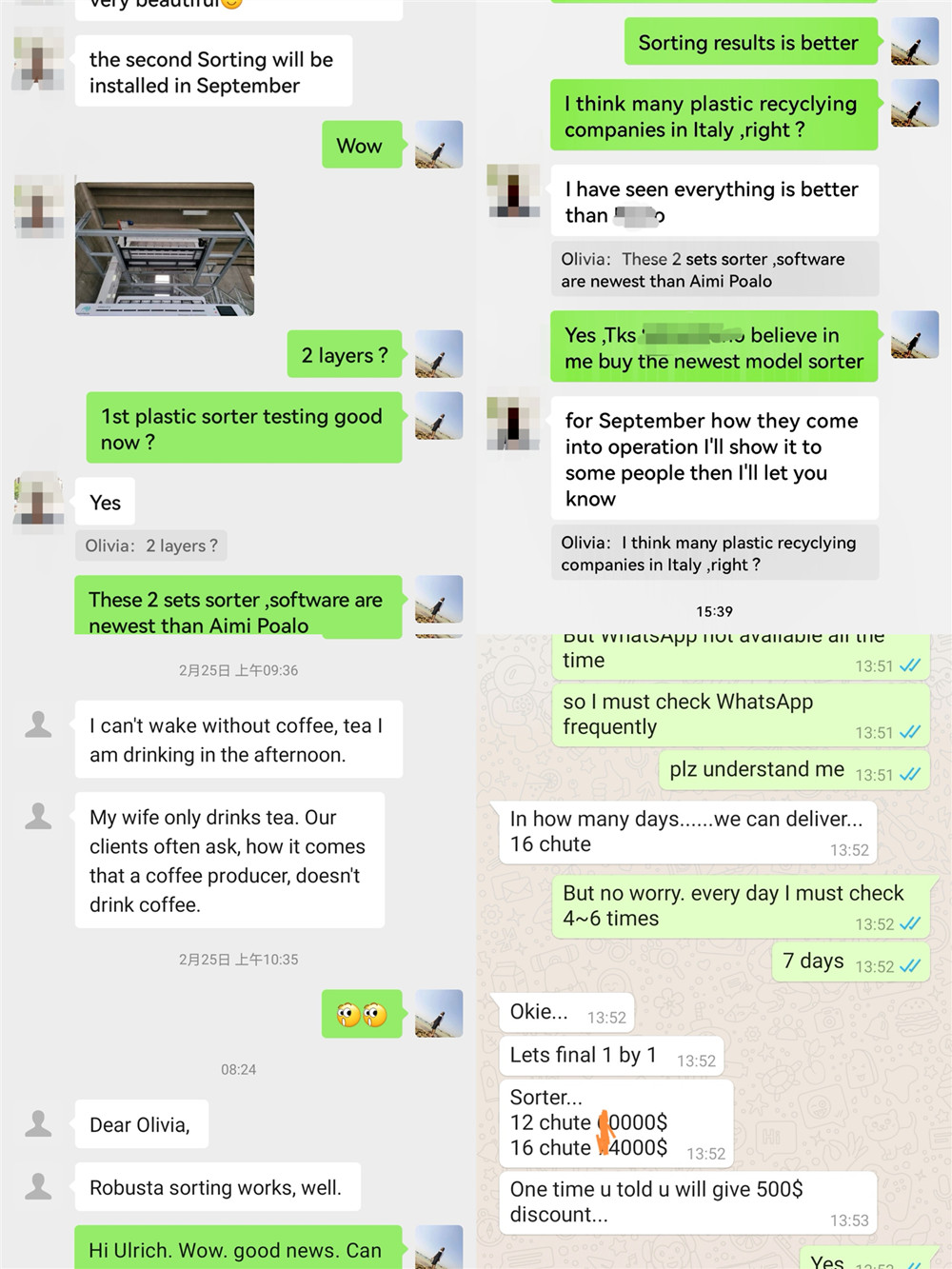

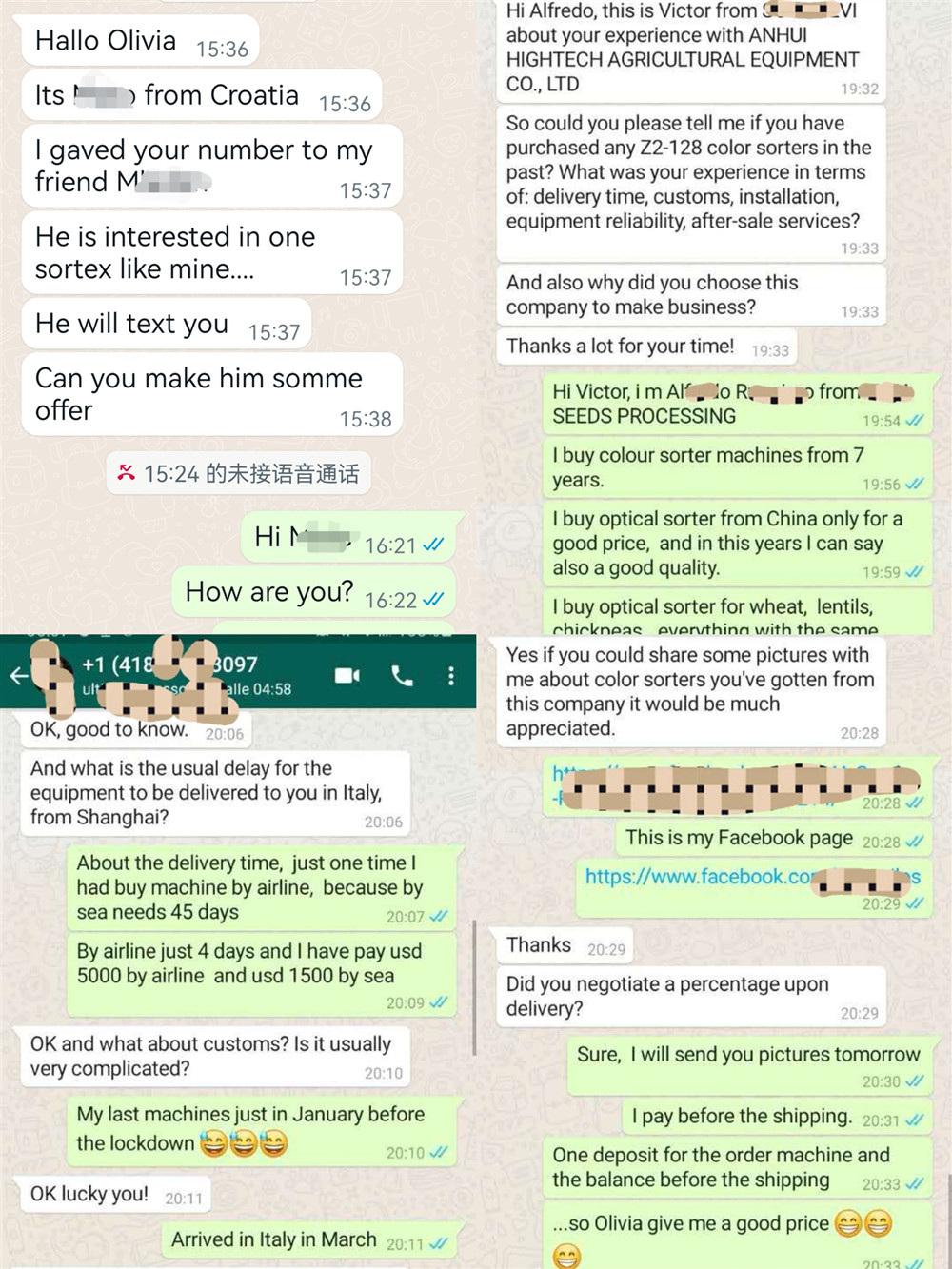

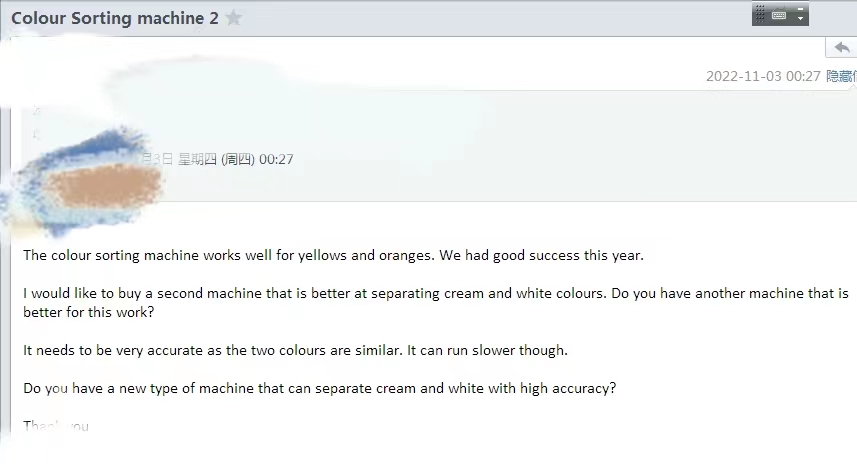

Customer feedback is the driving force behind our progress:

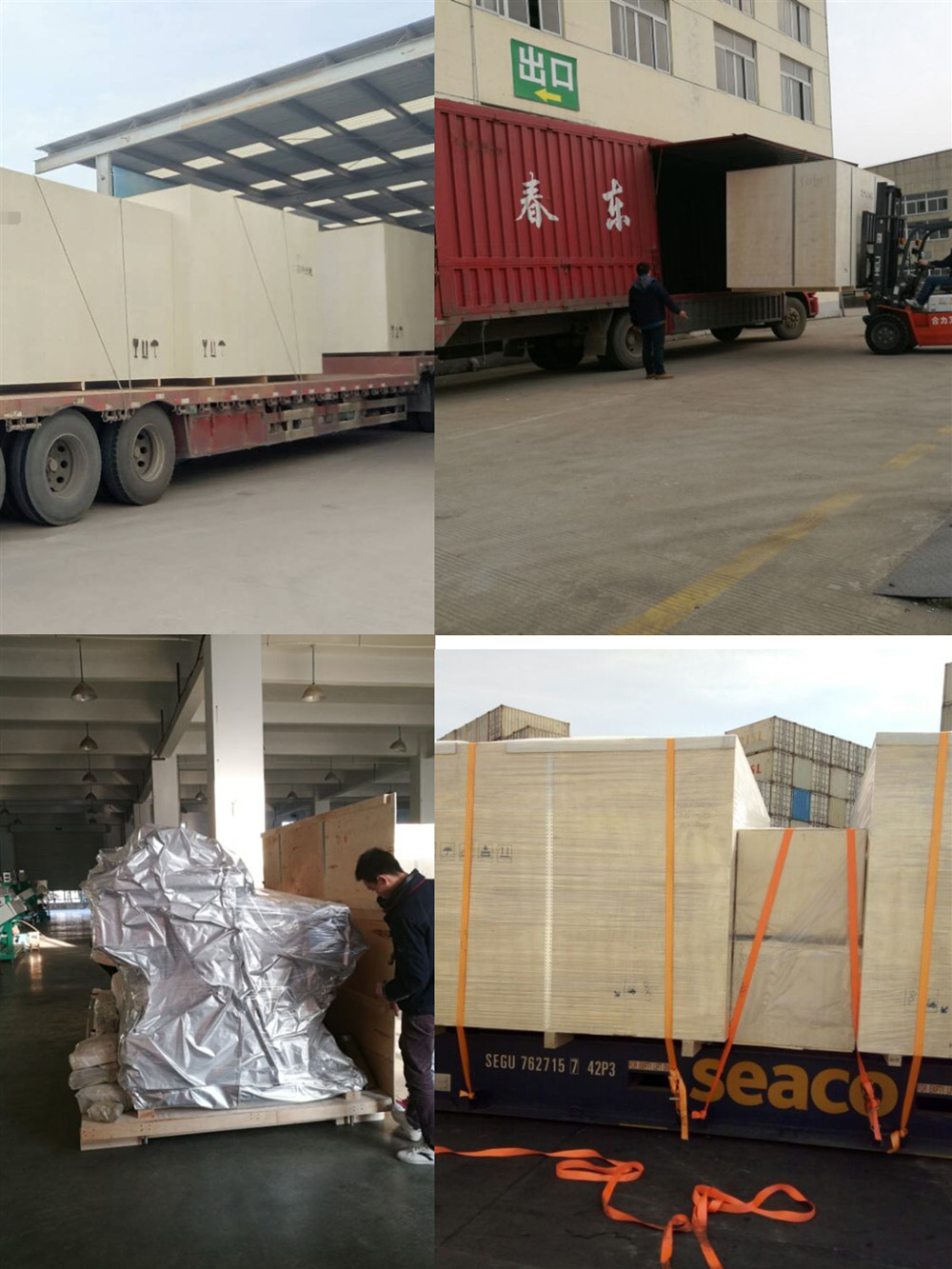

Plywood Case is Suitable for Sea/Road/Air Transport:



Frequently Asked Questions by Customers:

1. How to use the machine?

We will supply the Installation instructions and videos for guiding you how to set color sorter.



2. How long about the guarantee period?

Two years. And we supply lifelong software upgrade services for our customers.



3. Can you supply the air compressor, air tank and air filters?

Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.



4. Is oversea service available?

Yes, we will send engineer go abroad when you need it.



5.How to calculate Installation personnel cost?

On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.



6. If you have agent in our country?

We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.
