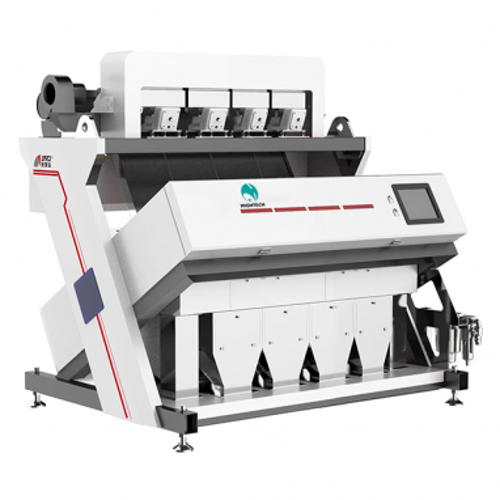

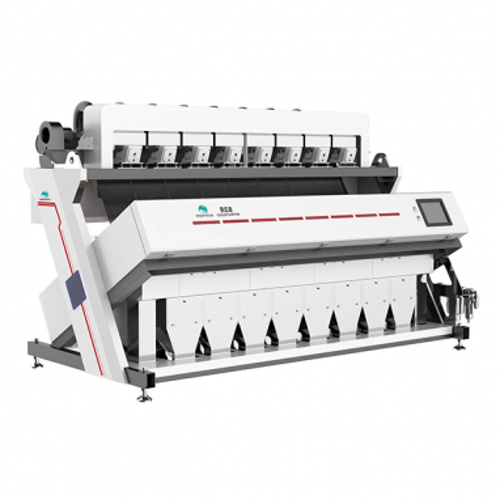

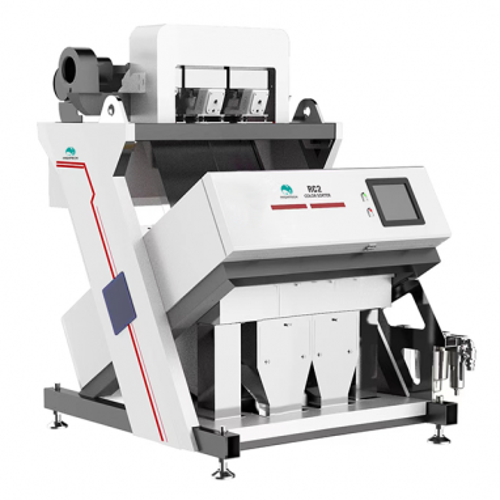

Coffee Sorting Machine/ Coffee Bean Sorter Machine
Payment:
T/T,L/CProduct Origin:
Hefei,ChinaShipping Port:
Shanghai / NingboLead Time:
Within 7-20 daysProduct Name:
Coffee bean color sorterWarranty:
2 yearsMachine Function:
Color/material/shape/size sortingCertificate:
CEThe methodology behind color sorting machines is similar. The color of each coffee bean is quickly measured using a type of CCD camera system and depending on this wavelength measurement the bean is either allowed to flow downward or is shot with a puff of air into the reject pile. The more specific thrichromatic roasted coffee bean color sorting machines detect and eliminate coffee beans that are white, unripe, broken, insect damaged, and black.
Products Features
Product Description:
(1) Most advanced LED optical technique; imported LED light; durable and stability.
(2) Phoenix lens Brand Industrial customized 5400 Pixels Cameras.
(3) One billion times High Frequency&quality imported Ejectors.
(4) CCD chip from Japan & processor from USA, ARM chip from UK.process chip photos.
(5) Warranty period one year with free spare parts.
Parameter Table
Model | Z1-64 | Z2-128 | Z2-192 | Z4-256 | Z5-320 | Z6-384 | Z7-448 | Z10-640 | Z12-768 |
Type | 6SZM-64 | 6SZM-128 | 6SZM-192 | 6SZM-256 | 6SZM-320 | 6SZM-384 | 6SZM-448 | 6SZM-640 | 6SZM-768 |
Output(t/h) | 0.5-1 | 1.5-4 | 3-6 | 5-10 | 6-10 | 7-12 | 8-15 | 13-24 | 18-30 |
Sorting Accuarcy(%) | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
Optimized Carryover (Bad:Good) | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 |
Weight (kg) | 400 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1400 | 1600 |
Resolution(mm2) | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 |
Power(kw) | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 4.5 | 6.0 | 8.0 |
Dimensions (LxWxH)(mm) | 1070*1650 x2010 |
1370x1650 x2010 |
1684x1650 x2010 |
1998x1650 x2010 |
2312x1650 x2010 |
2626x1650 x2010 |
2930x1650 x2010 |
4100x1650 x2010 |
2670x3000 x2010 |
Power Supply(V/Hz) | 220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
1. The above data is based on the 2% contamination, and real output depends on the material and its contamination.
2. If products update, no further notice. Please refer to the real machine.
From optical sorting to color vision sorting,and then to multidimensional fusion sorting. From computational intelligence to perceptual intelligence, and then to the iteration of cognitive intelligence, every technological revolution of HT is changing the world we are familiar with.
HT has grown for more than 20 years, and has gone deep into the processing industries such as beans, seeds,nuts, wheat and grains, focusing on advanced technical research on material sorting. HT' S new series of deep learning equipment brings multiple value experiences to customers for multi scenario applications.
New intelligent algorithm & communication architecture,AI deep self-learning
Hardware platform architecture,standardization, modularization,high stability and low failure rate
The effect is not trivial,output increased by 15%,the accuracy is increased by 10%,bring out ratio reduced by 20% .
Pure and extraordinary sorting performance
Expandable design can be equipped with multi-dimensional cameras.
Network cloud platform
More information about color sorter
Separate Materials By Color
Color sorters are intensively effective in sorting materials of different colors. Rice, grains, millets, and cereals are examples you might need to sort based on colors.
Separate Materials By Sizes
It is prevalent to sort foods by size. In general, a color sorter can sort products by sizes of 0.1mm to 100mm.
Separate Materials By Shapes
Sorting by shape is very useful to classify food like tea leaves and seafood. You can set the parameters you want and let the machine do the work.
Separate Materials By Types
In some cases, you might need to sort materials like nuts, seeds, and beans by type. To classify them efficiently and pick only the healthy ones.

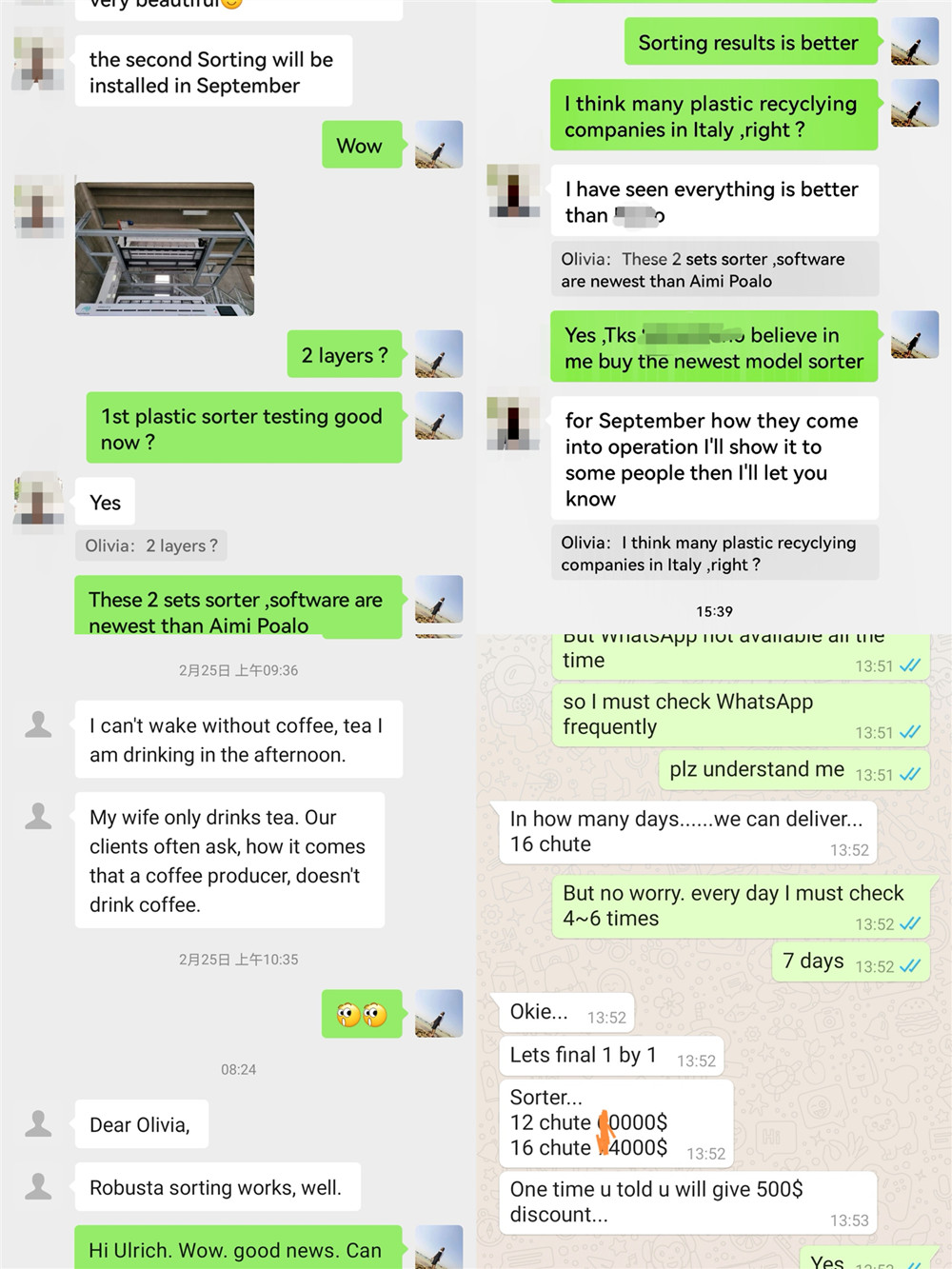

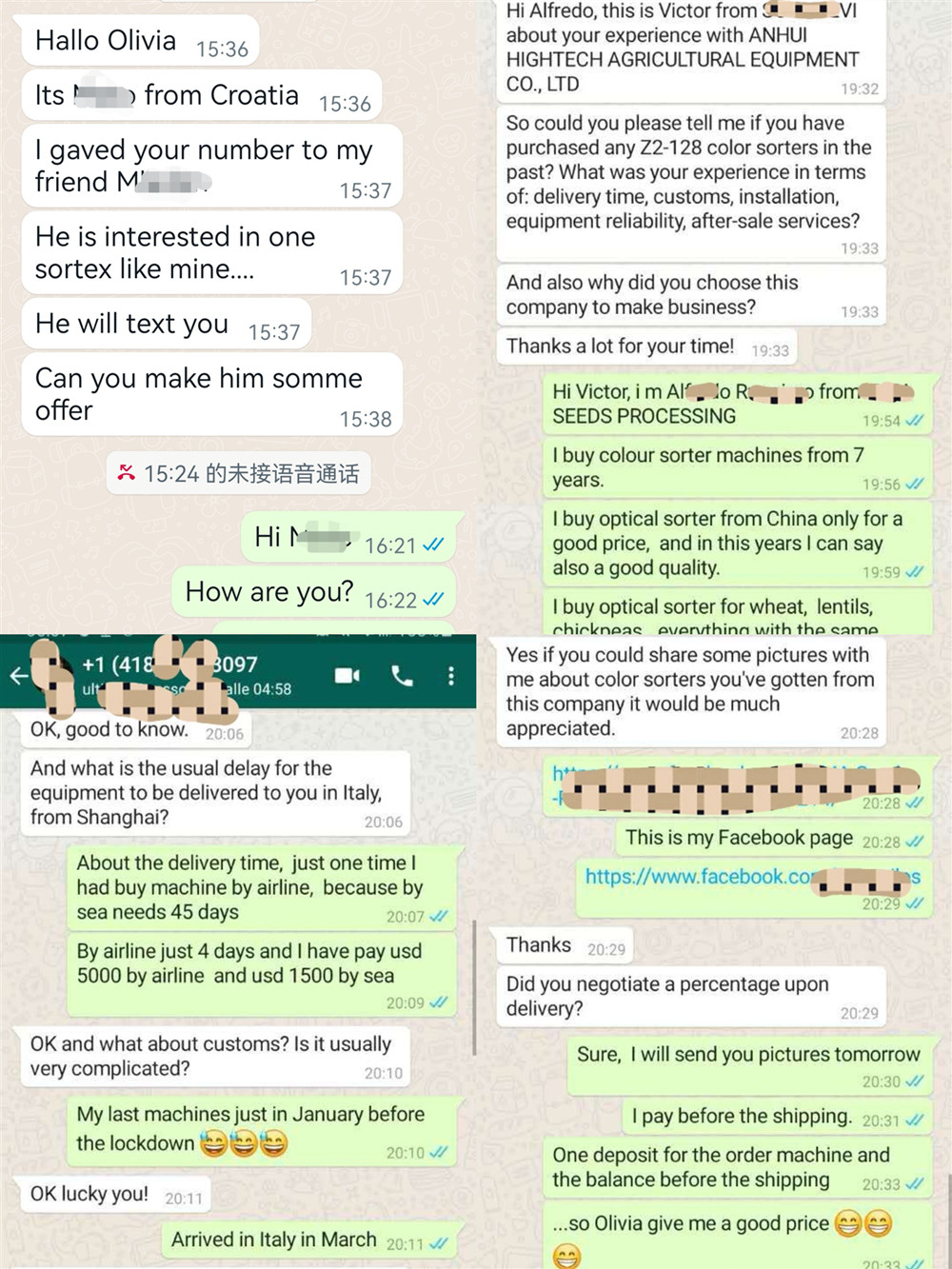

Customer feedback is the driving force behind our progress:

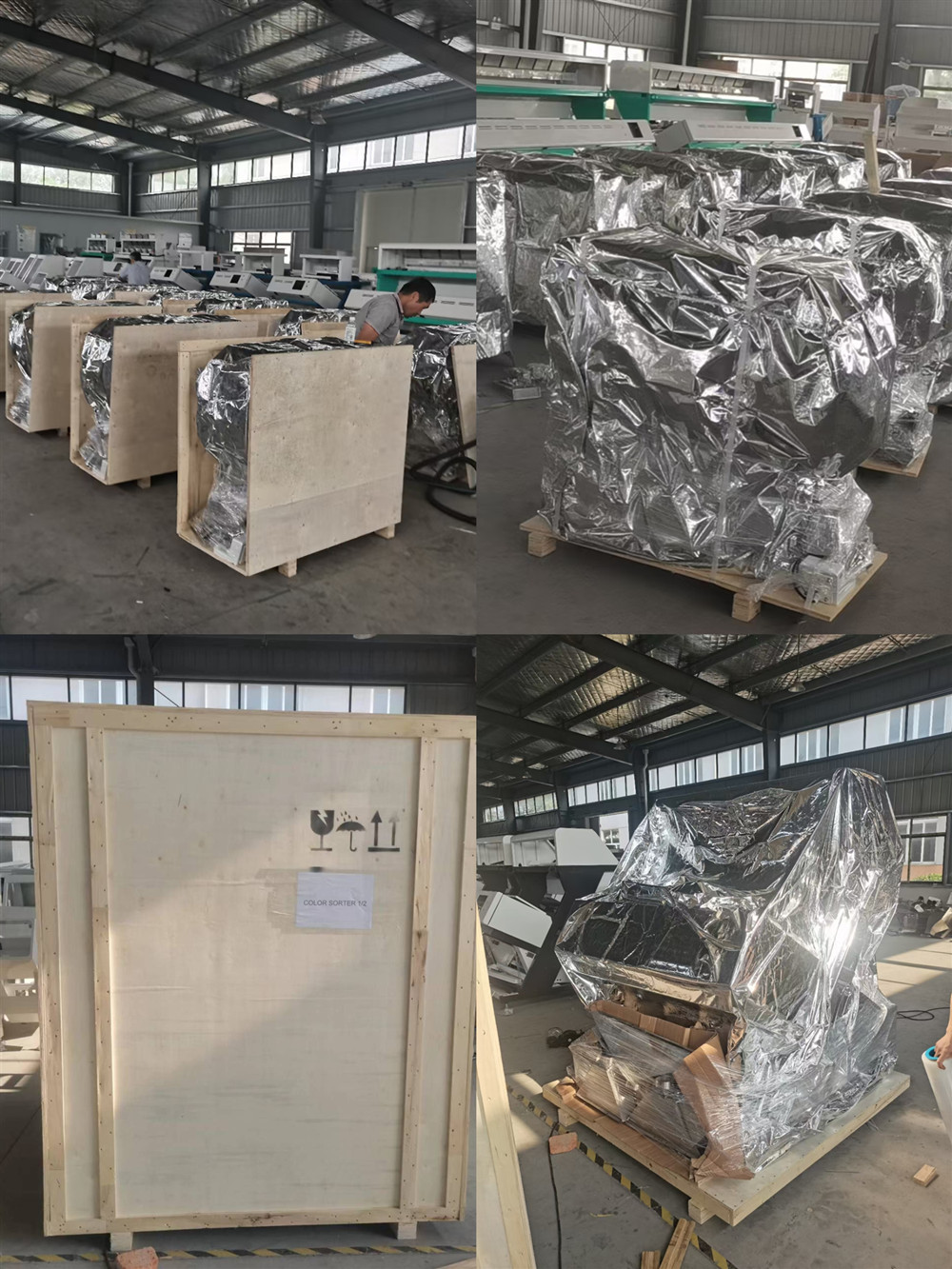

Plywood Case is Suitable for Sea/Road/Air Transport:
1. How to use the machine?
We will supply the Installation instructions and videos for guiding you how to set color sorter.
2. How long about the guarantee period?
Two years. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.
4. Is oversea service available?
Yes, we will send engineer go abroad when you need it.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.
6. If you have agent in our country?
We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.
We have many installation cases and working videos.Please contact us freely if you need.
