Order(MOQ):
1Goods Stock:
10Payment:
T/T,L/CProduct Origin:
Hefei,ChinaShipping Port:
Shanghai / NingboLead Time:
Within 7-20 daysProduct Name:
Plastic Pellet SortingWarranty:
2 yearsMachine Function:
Black point sorting ,color sortingCertificate:
CE
How Dose The Pellet Sorter Working ?
The OptiClear particle sorting system utilizes cutting-edge visible light sorting technology.
Capable of sorting various types of plastic particles (clear particles, opaque particles, semi-transparent particles).
Effectively handles sorting of oversized particles, irregularly shaped particles, and mixed-color particles.
Accurately identifies and separates particles with subtle color variations.
Supports the detection and sorting of minute black specks larger than 0.1MM.

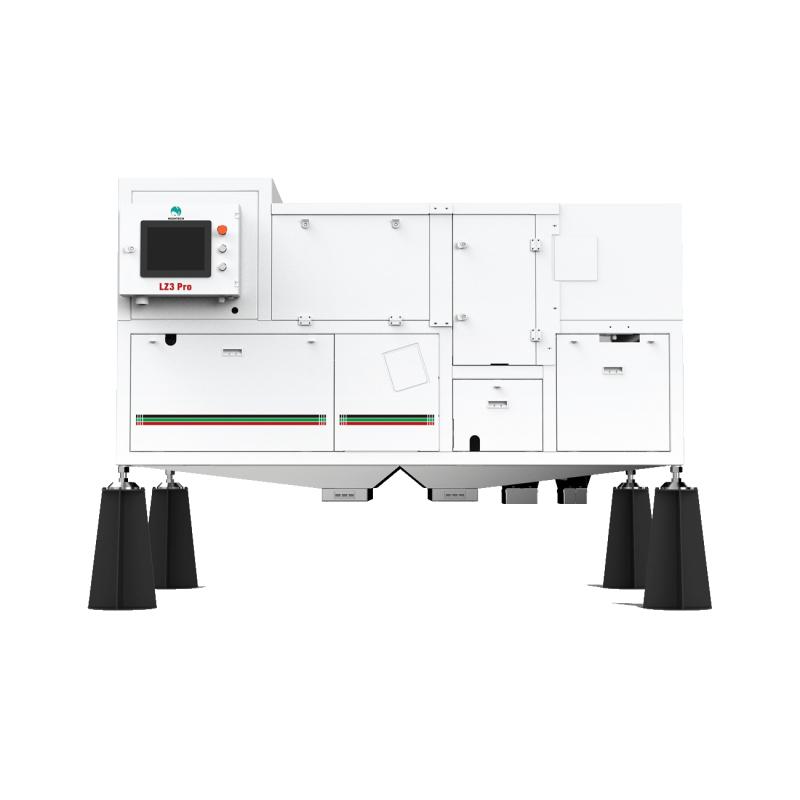

Intelligent Plastic Sorting Machine Technical Specifications
Model |
G-LZ1 |
G-LZ3 |
G-LZ6 |
Capacity(t/h) |
1-1.5 |
1.5-2.5 |
2.5-4 |
Number of Execution Units |
180 |
300 |
420 |
Size of Sorting(mm) |
2*2-30*30 |
2*2-30*30 |
2*2-30*30 |
Power(kw) |
1.8 |
2.4 |
3.5 |
Dimensions(L*W*H)(mm) |
1455*1597*2142 |
2075*1597*2142 |
2625*1597*2142 |
Weight(kg) |
940 |
1330 |
1650 |
Pellet Sorter For Advanced Plastic Purification
The plastic pellet sorter is specially engineered to remove unwanted plastic pellets, including those with small black spots (less than 1mm), varying colors, and irregular shapes, from transparent, opaque, and colored raw materials. It ensures maximum material purity while minimizing waste.
Key Features
• Expert in Transparent plastic pellets color sorter: Leveraging upgraded recognition technology from the G-LG series, the new G-LZ series incorporates shadowless ultra-clear cameras, eliminating reflection and refraction issues. This innovation significantly enhances sorting performance for extremely light-colored plastic pellets.
• High Throughput: Designed with anti-blocking mechanisms, durable high-frequency ejector valves, and a balanced feeding system, it offers large-scale sorting capacity and supports long-term unmanned operation, ensuring efficient production.
• Stable Operation: Equipped with an explosion-proof motor and ultra-wide soft conveyor belt, the machine ensures consistent material distribution, low bounce rates, and smooth transportation for optimal sorting efficiency.
• Exceptional Accuracy: High-speed sensors, advanced chips, and a precision “missile guidance” system enable sorting accuracy rates of up to 99%, guaranteeing the highest level of material quality.

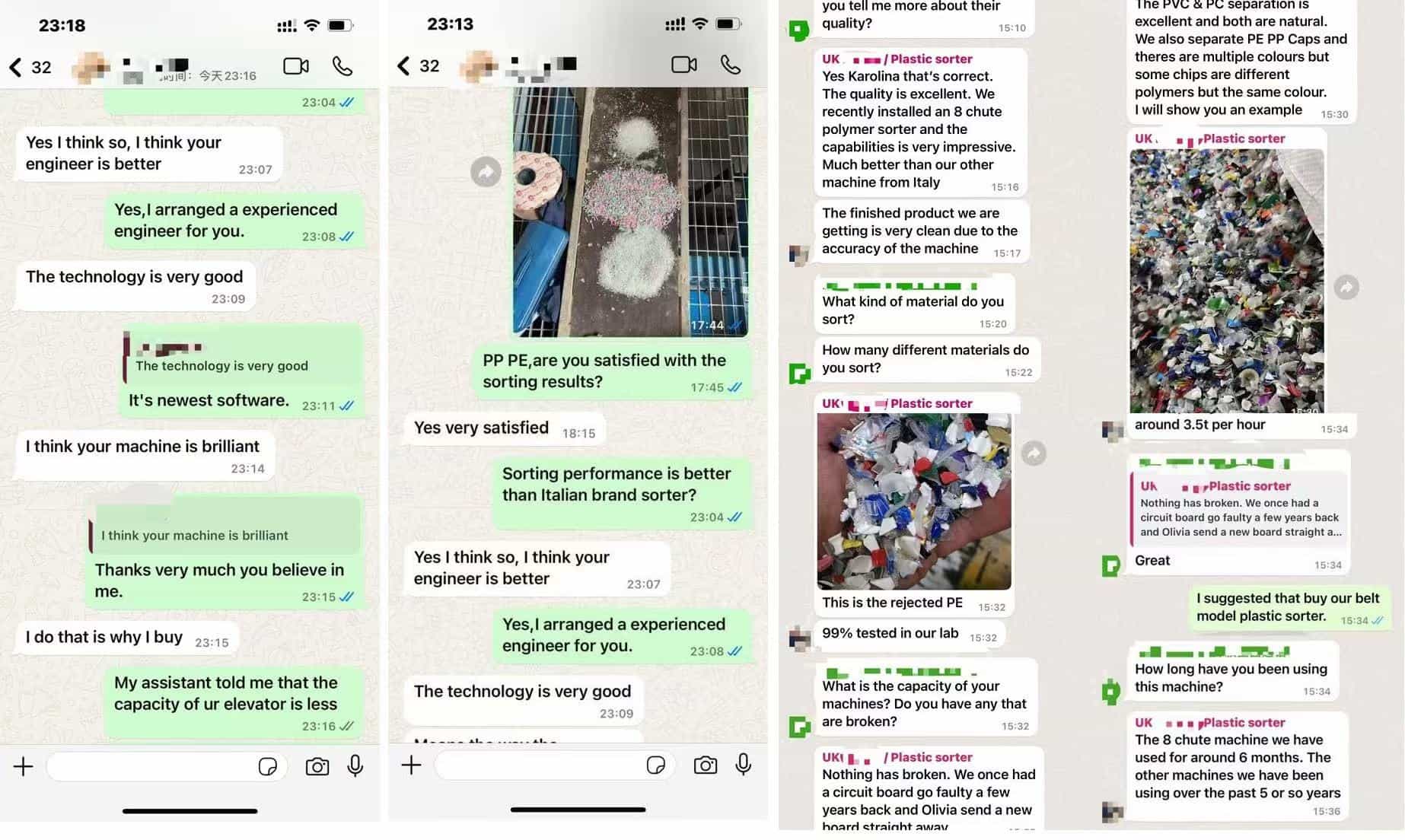

Sucessful Cases
Plywood Case Is Suitable For Sea/Road/Air Transport
Frequently Asked Questions By Customers
1. How to use the machine?
We will supply the Installation instructions and videos for guiding you how to set color sorter.
2. How long about the guarantee period?
Two years. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.
4. Is oversea service available?
Yes, we will send engineer go abroad when you need it.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.
6. If you have agent in our country?
We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.
