Payment:
T/T,L/CProduct Origin:
Hefei,ChinaShipping Port:
Shanghai / NingboLead Time:
Within 7-20 daysProduct Name:
Peanut sorting machineWarranty:
2 yearsMachine Function:
Color/material/shape/size sortingCertificate:

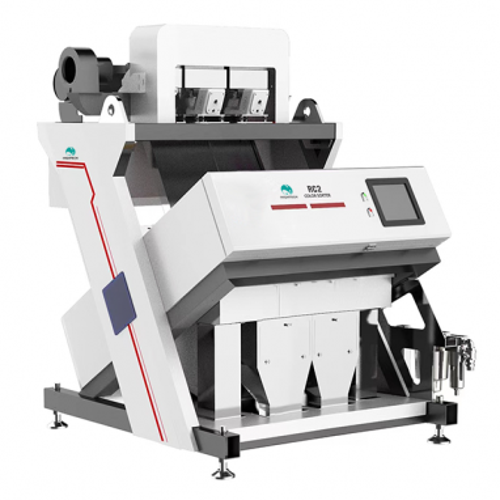

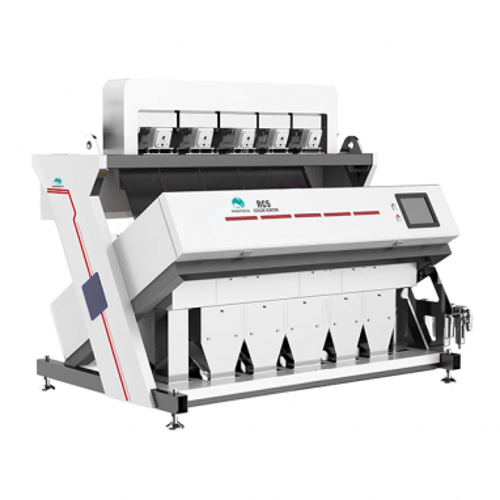

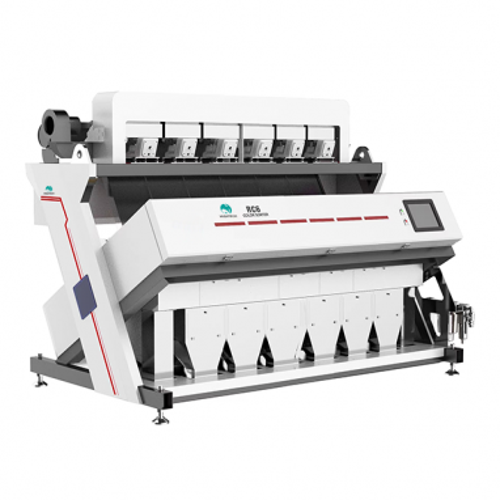

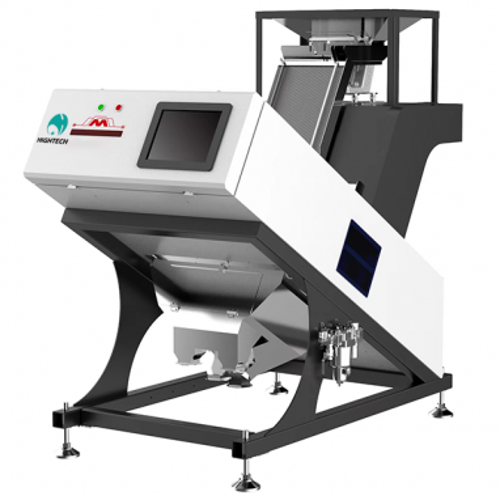

CEPeanut color sorting machine can sort all types of foreign material, including stalks ,glass, shell ,stones, stalks, stems and Johnsongrass as well as invisible to the human eye defects such as aflatoxin from good peanuts like white peanuts ,red peanuts,peeled peanuts and peanuts in shell .
Model |
Output(T/H) |
Carryover |
Power(KW) |
Voltage |
Weight(kg) |
Dimension(mm) |
MPS1 |
0.5-3 |
>10:1 |
0.3-0.5 |
220V/50HZ |
240 |
975*1550*1400 |
MPS2 |
1-6 |
>10:1 |
0.4-0.65 |
220V/50HZ |
500 |
1240*1705*1828 |
MPS3 |
1.5-9 |
>10:1 |
0.7-1.1 |
220V/50HZ |
800 |
1555*1707*1828 |
MPS4 |
2-12 |
>10:1 |
0.7-1.1 |
220V/50HZ |
1000 |
1869*1707*1828 |
MPS5 |
2.5-15 |
>10:1 |
0.7-1.1 |
220V/50HZ |
1100 |
2184*1707*1828 |
MPS6 |
3-18 |
>10:1 |
1.1-1.9 |
220V/50HZ |
1350 |
2500*1707*1828 |
MPS7 |
3.5-21 |
>10:1 |
1.1-1.9 |
220V/50HZ |
1350 |
2814*1707*1828 |
MPS8 |
2.5-15 |
>10:1 |
1.3-2.2 |
220V/50HZ |
1500 |
3129*1707*1828 |
MPS10 |
5-30 |
>10:1 |
1.4-2.3 |
220V/50HZ |
1750 |
3759*1710*1828 |
MPS12 |
4-25 |
>10:1 |
1.4-2.3 |
220V/50HZ |
1900 |
4389*1710*1828 |
From optical sorting to color vision sorting,and then to multidimensional fusion sorting. From computational intelligence to perceptual intelligence, and then to the iteration of cognitive intelligence, every technological revolution of HT is changing the world we are familiar with.
HT has grown for more than 20 years, and has gone deep into the processing industries such as beans, seeds,nuts, wheat and grains, focusing on advanced technical research on material sorting. HT' S new series of deep learning equipment brings multiple value experiences to customers for multi scenario applications.
New intelligent algorithm & communication architecture,AI deep self-learning
Hardware platform architecture,standardization, modularization,high stability and low failure rate
The effect is not trivial,output increased by 15%,the accuracy is increased by 10%,bring out ratio reduced by 20% .
Pure and extraordinary sorting performance
Expandable design can be equipped with multi-dimensional cameras.
Network cloud platform
Realize real-time data monitoring
Benefits Of Peanut Color Sorting Machine
1,Increased yield
2,Reduced labor requirements
3,Increased throughput
4,Consistent quality
The peanut sorting solutions boost throughput and availability while at the same time increasing yield,quality and food safety
Ejector
Independent developed intelligent magnetic control
high-frequency ejector has no air leakage problem thanks to
the replacement of intelligent lever flexible return technology
for traditional pressure return technology.
Cloud Interconnection System
Thanks to cloud service technical platform, remote control, operation, matainence , software
upgrade can be achieved and it can detect and solve the LED light, electronical,mechanical and adjustment problems.It also can provide real-time online tracking service for the machine operation
monitoring,data acquisition and online instruction.
One Key Intelligent Operation System

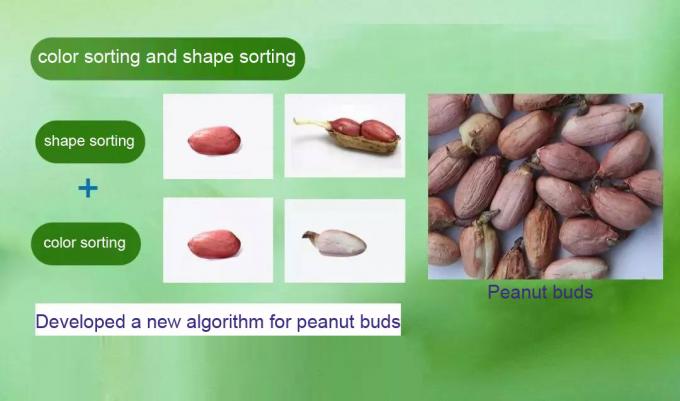

The users can set the area of the material color, shape, size and defect by themselves and confirm the rejected material, so the machine can automatically set the sorting solution of the material according to the independent calculating, intelligent recognition and intelligent sorting principles with one key intelligent control technology.
Intelligent Visual Image Capture System
It can realize the visual dynamic image capture system by adopting the high resolution full color CCD sensor .
Intelligent LED Light Control System
It can adjust the brightness of the LED automatically according to the material sorting requirements and environment changing due to advanced digital stepless automatic LED light adjustment technology. The best sorting performance will be achieved.
Components Suppliers:
Toshiba brand Full Color Camera CCD with 5400 pixel
Phoenix brand customized industrial lens
Intel and ATI brand DSP,FPGA and chips
Mean Well brand power supply
Advantec brand display
NEC brand touch screen
SMC brand filters
Schneider brand power switch.
In automatic re-pass versions, the sorted or rejected product is automatically conveyed to another section of the machine for undergoing an identical process,ensuring more accurate sorting of the grain and minimizing losses of the good product .

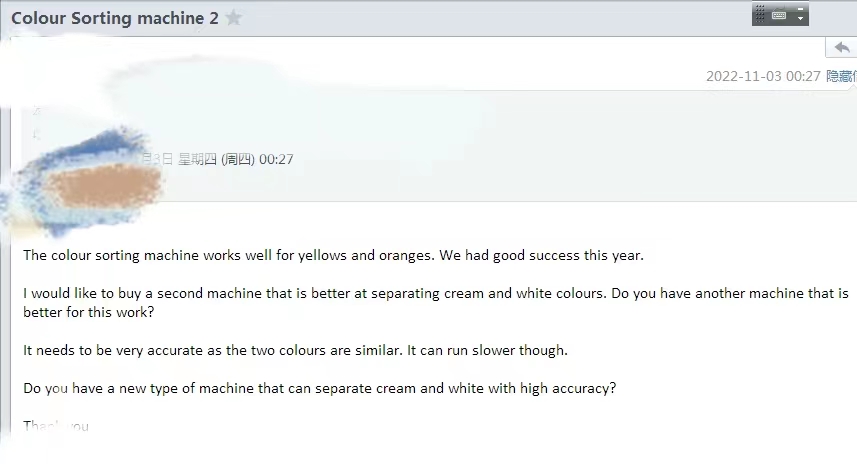

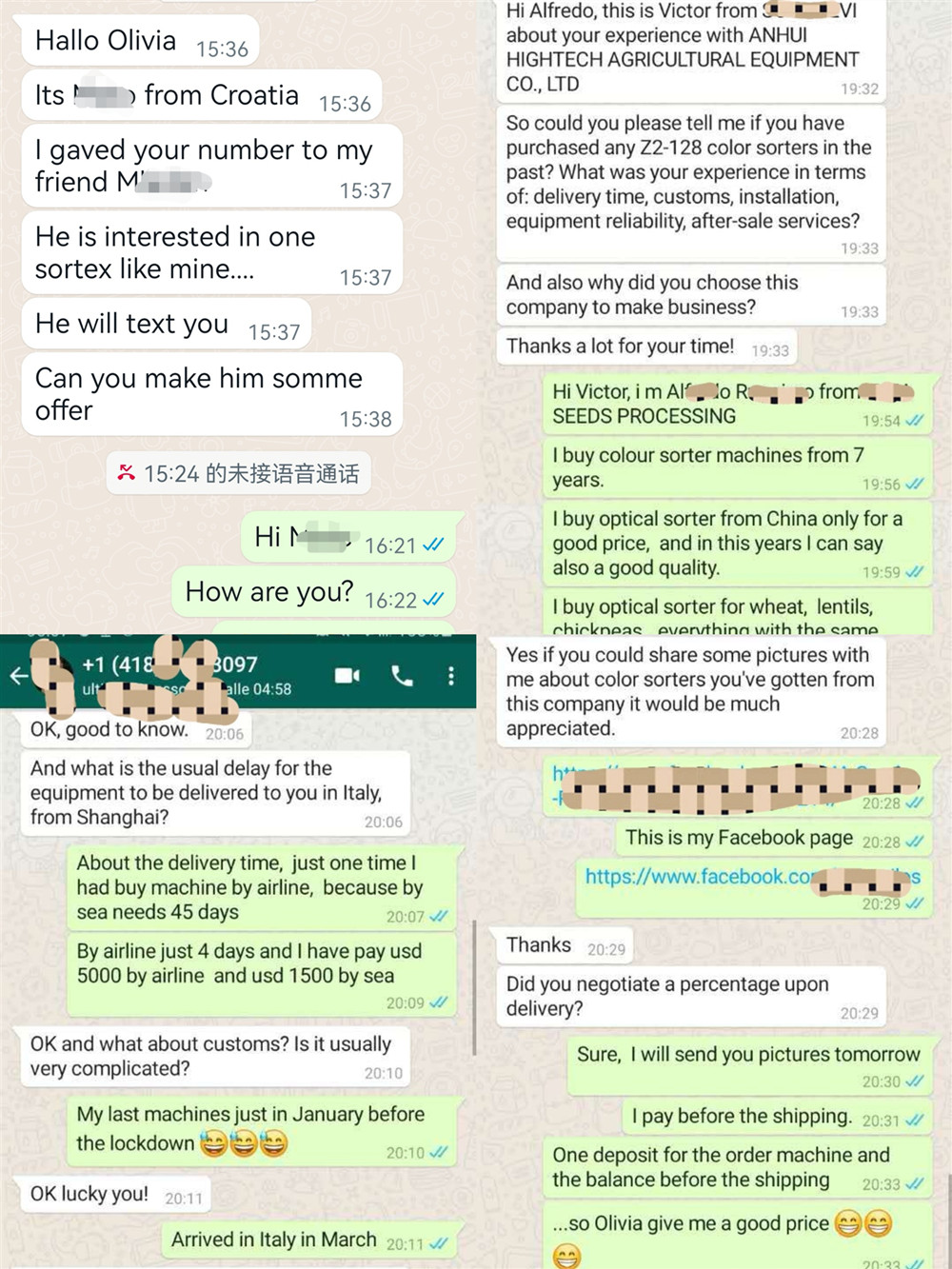

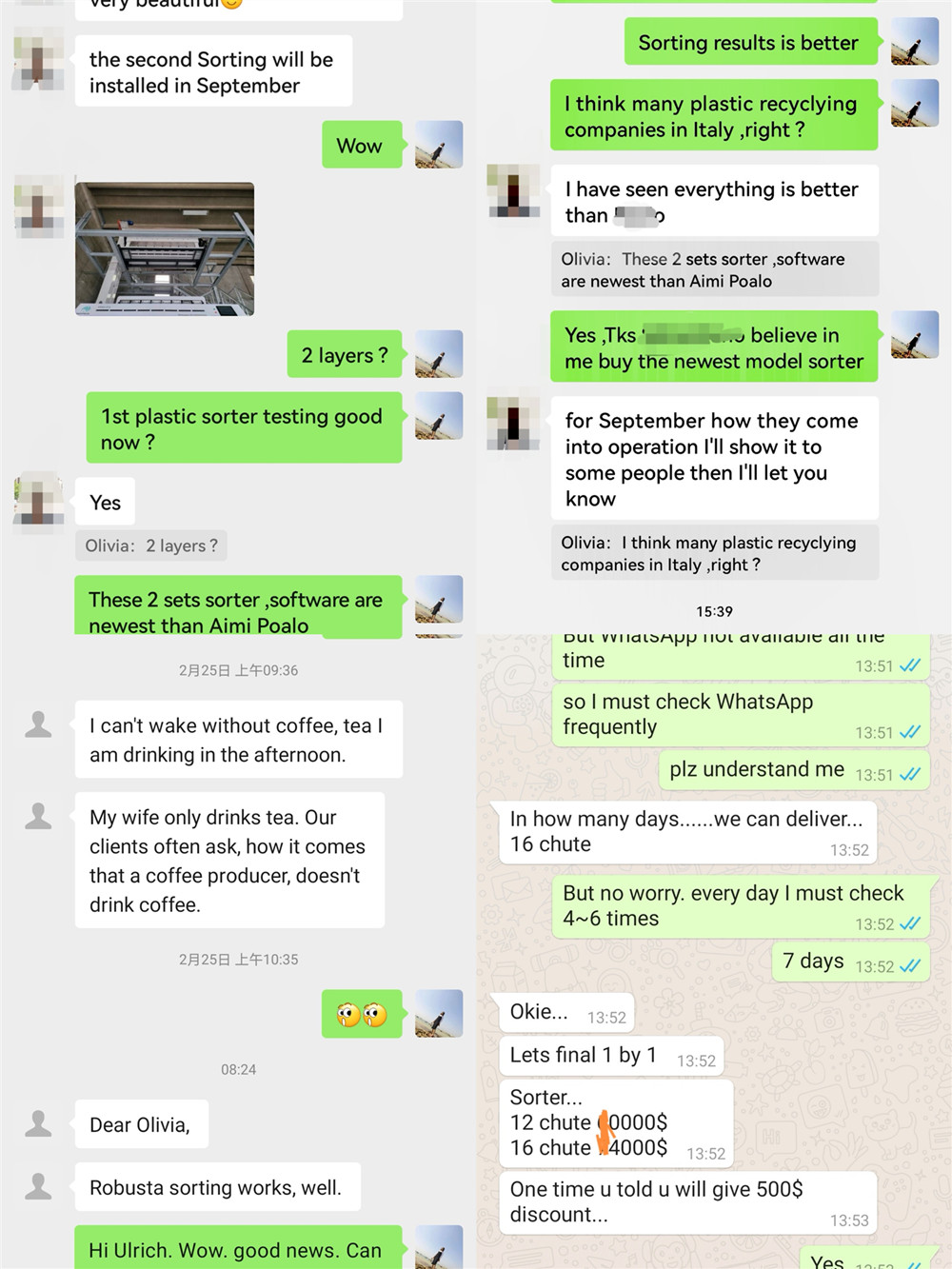

Customer Feedback Is The Driving Force Behind Our Progress:

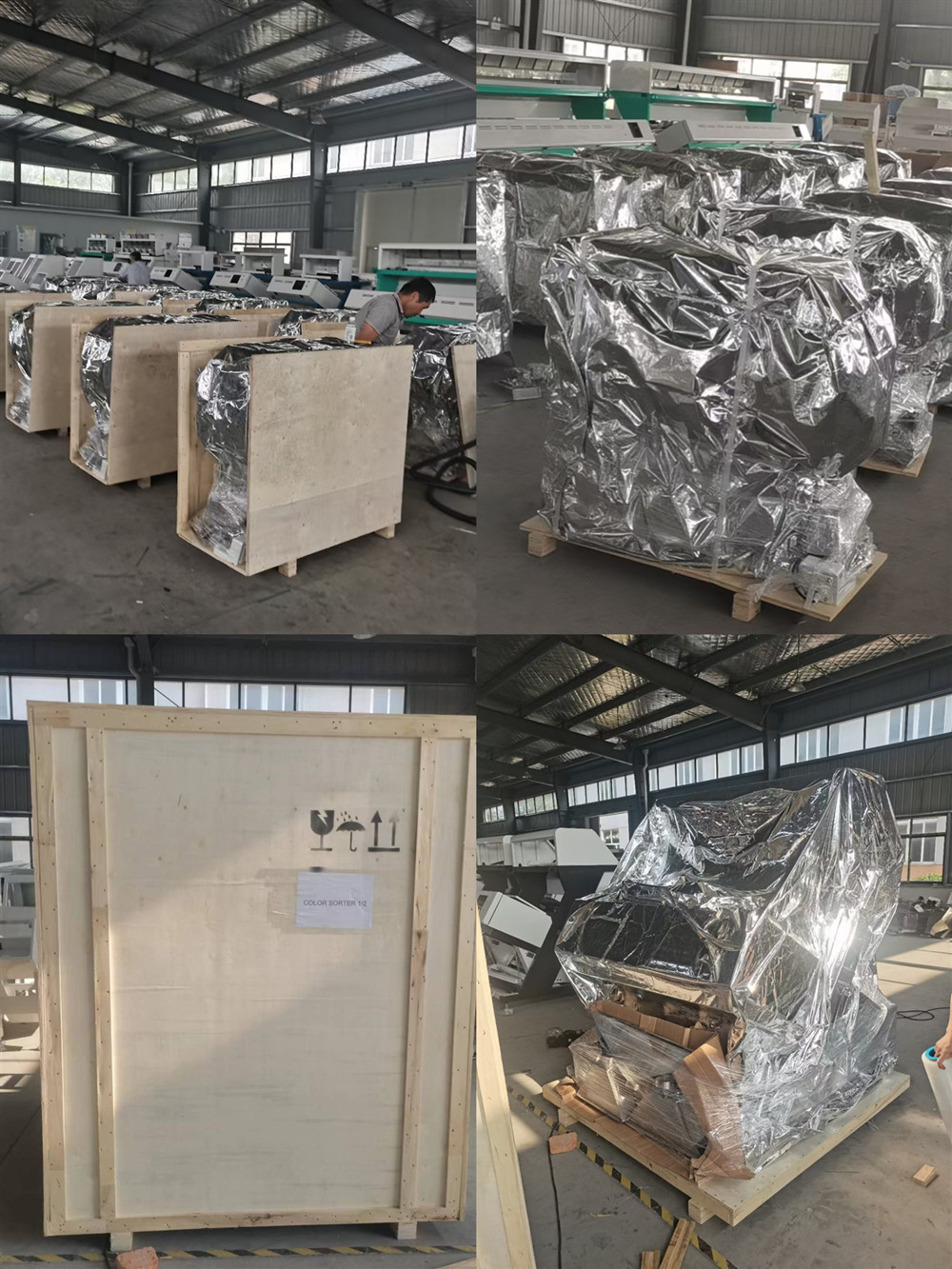

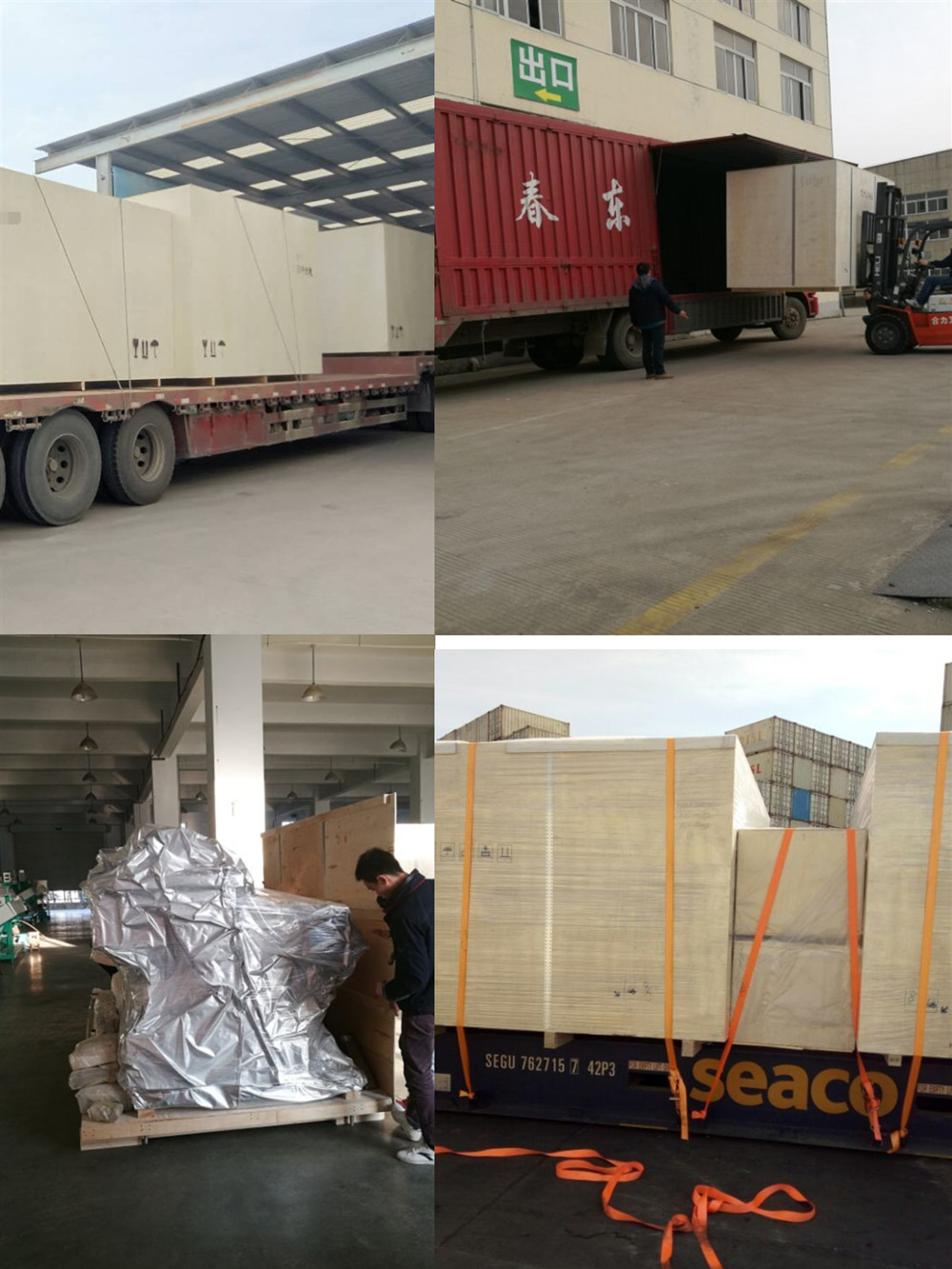

Plywood Case Is Suitable For Sea/Road/Air Transport:
1. How to use the machine?
We will supply the Installation instructions and videos for guiding you how to set color sorter.
2. How long about the guarantee period?
Two years. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.
4. Is oversea service available?
Yes, we will send engineer go abroad when you need it.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.
6. If you have agent in our country?
We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.
