Item NO.:
HT MiniOrder(MOQ):
1Payment:
T/T,L/CMarket Price:
$5000Product Origin:
Hefei,ChinaShipping Port:
Shanghai / NingboLead Time：
Within 7-20 daysProduct Name:
Mini Color Sorter MachineWarranty:
2 yearsMachine Function:
Color sorting, shape sorting ,size sorting,AI sortingCertificate:

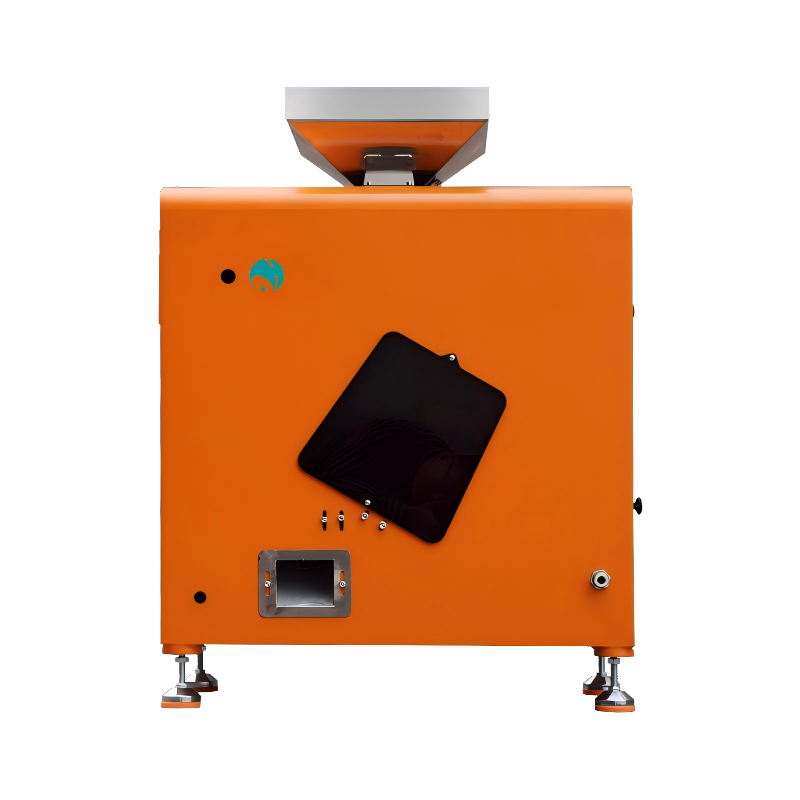

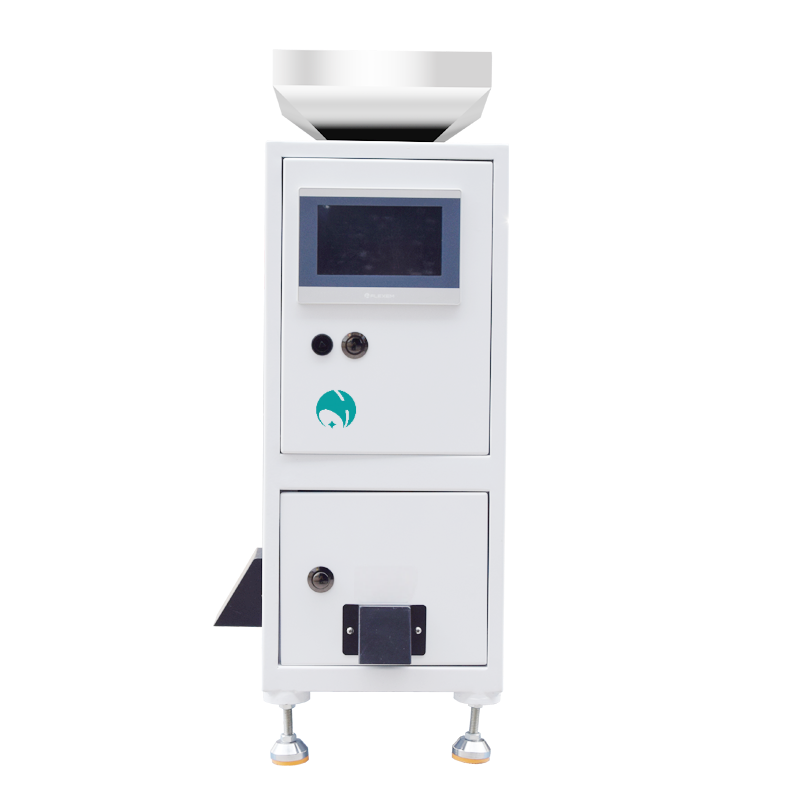

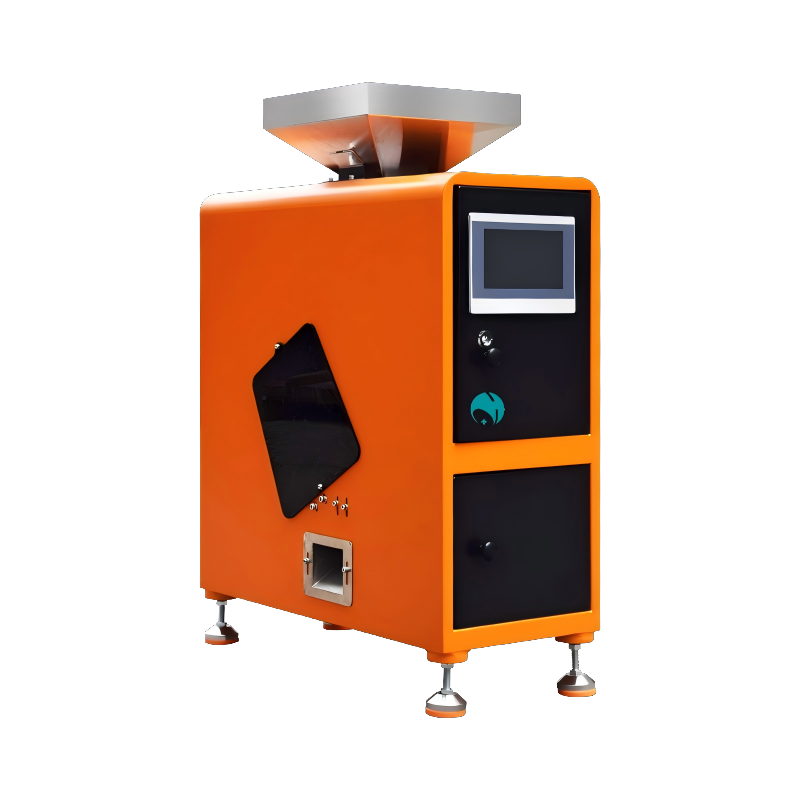

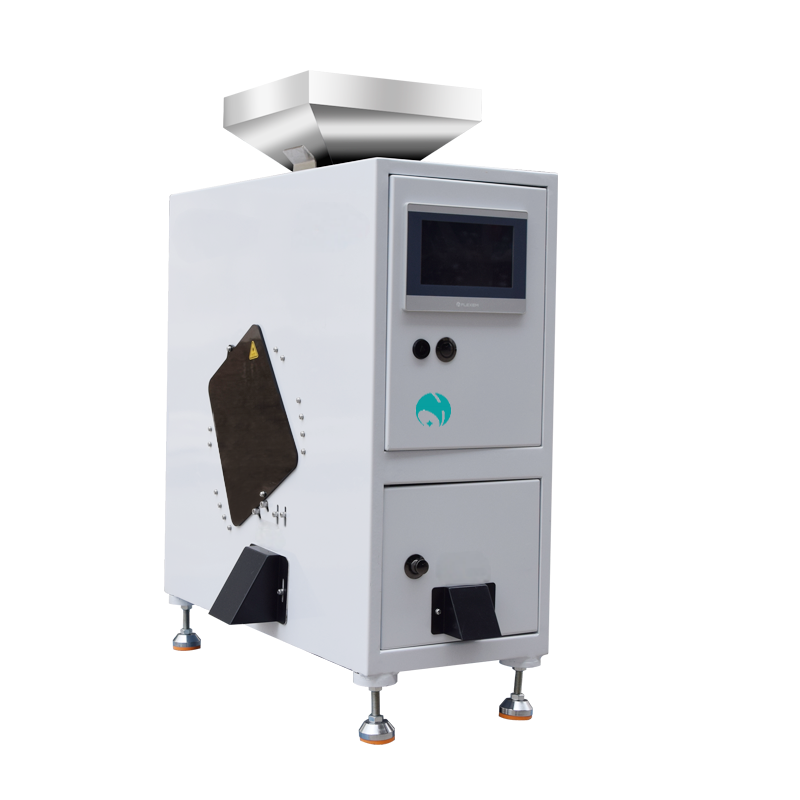

CEWhat Is Mini Color Sorter Machine?
The HT mini color sorter machine also called mini sorting machine or mini colour sorter, is a compact sorting machine that, combined with our advanced AI system, can quickly sort rice, grains, coffee beans, seeds, nuts, herbs, spices, etc. according to the differences in color, shape, polymer, mold, damaged, spoiled and other aspects. Our mini color sorter machine combines flexibility and economy.
As a leader of reliable manufacturer in China, HT mini color sorter machine, through the technology sinking, the industrial grade large volume color sorter machine is adapted to the small and medium scale production, very suitable for the pursuit of refinement and quality control of agricultural products processing and other small production volume needs of the industry. Small size, easy to move, with a variety of settings, flexible adjustment of output and precision, multi-faceted to meet your needs.
Our mini color sorter machine is a cost-effective choice for upgrading your traditional industry with intelligence and efficiency. We look forward to your inquiry.
What Is The Advantages Of HT Mini Color Sorter Machine?
1. AI Innovative Vision System

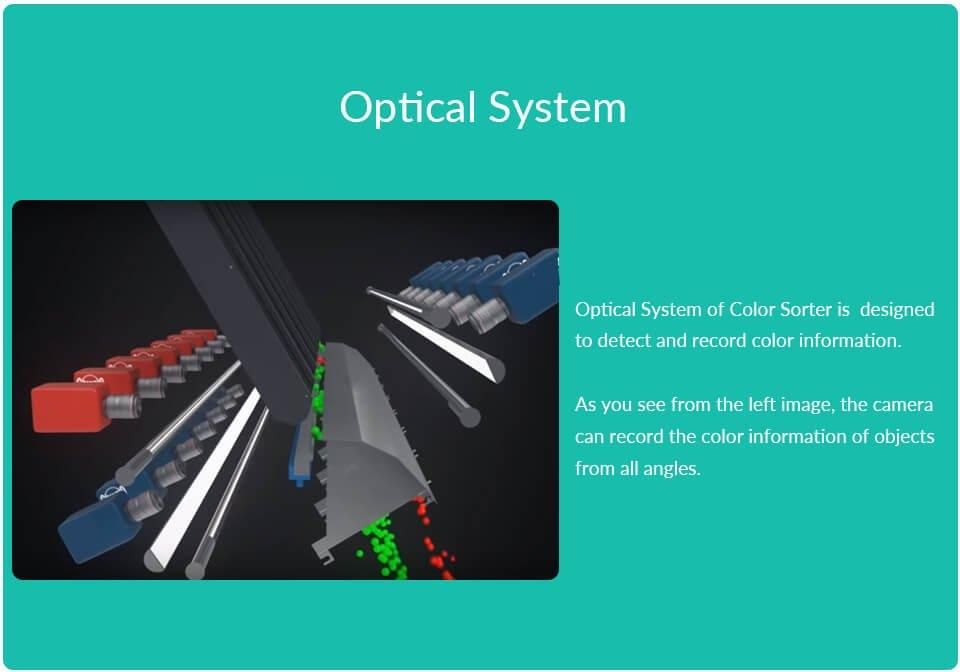

HT mini color sorter machine utilizes AI power advanced vision processing system combined with multi-spectral recognition system, such as visible light, infrared light and X-ray technology, to deeply analyze and sort materials, which is able to identify the material characteristics and accurately remove foreign materials from multiple dimensions, such as colors, shapes, polymer, ect.
2. Full Spectrum Lighting
The HT mini color sorter machine uses a natural light-like illumination system to display the true color of the material. Based on a full-range RGB lighting system, combined with multi-spectral detection technology, even the slightest difference in color or shape can be identified. The adjustable sorting background color can be selected according to the material characteristics, which further enhances the accuracy of sorting.
3. Easy Operating System
Simple operating system, with an intuitive, simple, and humanized operation layout. A friendly and interactive interface based on user experience supports multi-language settings, remote control, we can set your mini color sorter at our factory, and real-time monitoring of machine operation status. Whether or not you have a certain technical level of color sorter, you can easily operate and deeply utilize our HT mini color sorter machine.
Mini Color Sorter Machine Technical Data
|
Model |
Q16 |
Q32 |
Q64 |
|
Executive units |
16 |
32 |
64 |
|
Capacity |
60-150kg/h |
150-250kg/h |
300-600kg/h |
|
Accuracy |
≥99.99% |
≥99.99% |
≥99.99% |
|
Voltage |
110/220v-50/60HZ |
110/220v-50/60HZ |
110/220v-50/60HZ |
|
Power |
0.3kw |
0.4-0.8kw |
0.6kw |
|
Air supply pressure |
0.6-0.8Mpa |
0.5-0.8Mpa |
0.5-0.8Mpa |
|
Air consumption |
<250L/Min |
200-600L/Min |
300-600L/Min |
|
Weight |
70kg |
120kg |
180kg |
|
Dimension |
750*397*911mm |
520*1270*1310mm |
720*1500*1350mm |
Customer Feedback Is The Driving Force Behind Our Progress

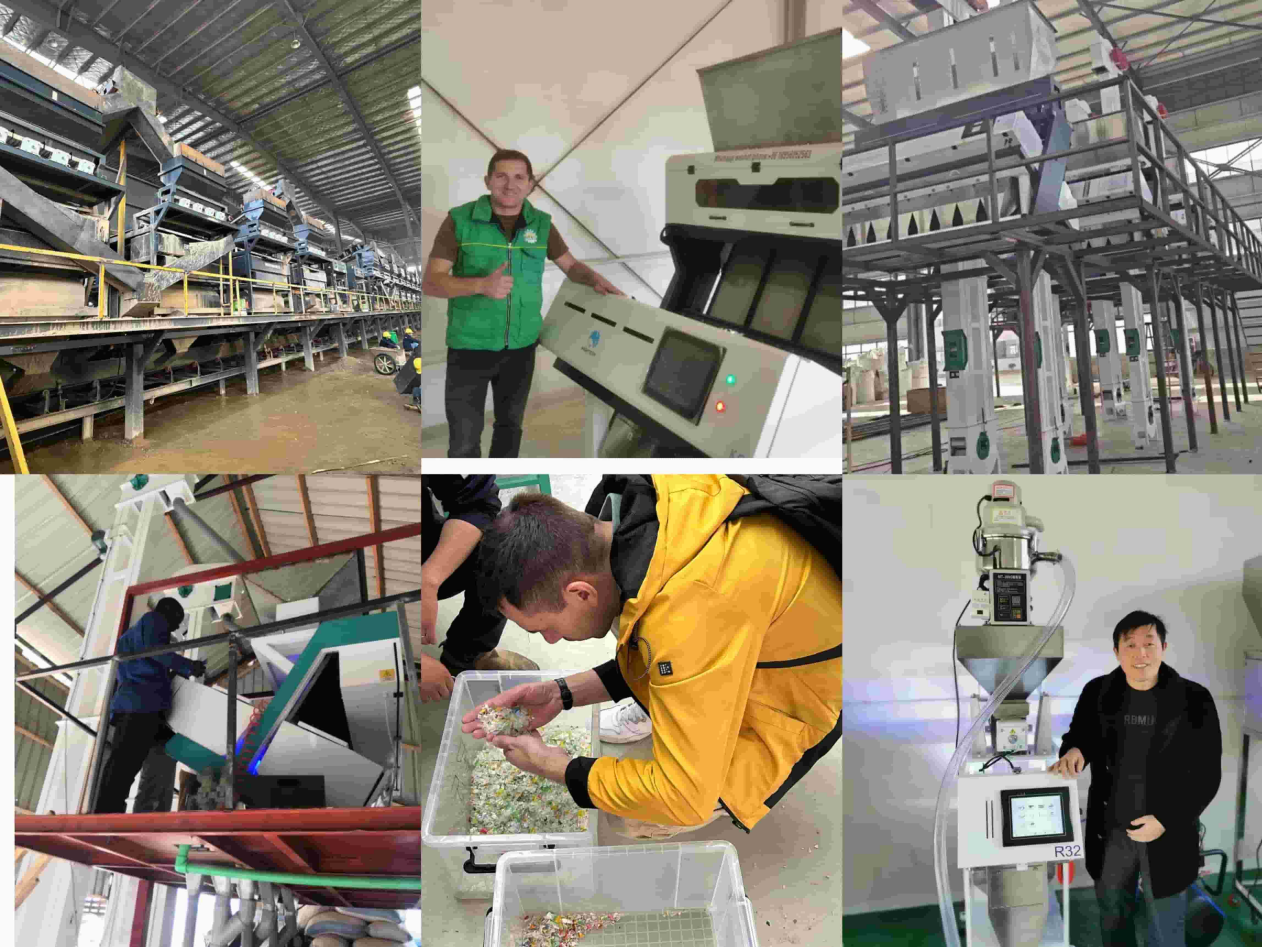

Successful Cases

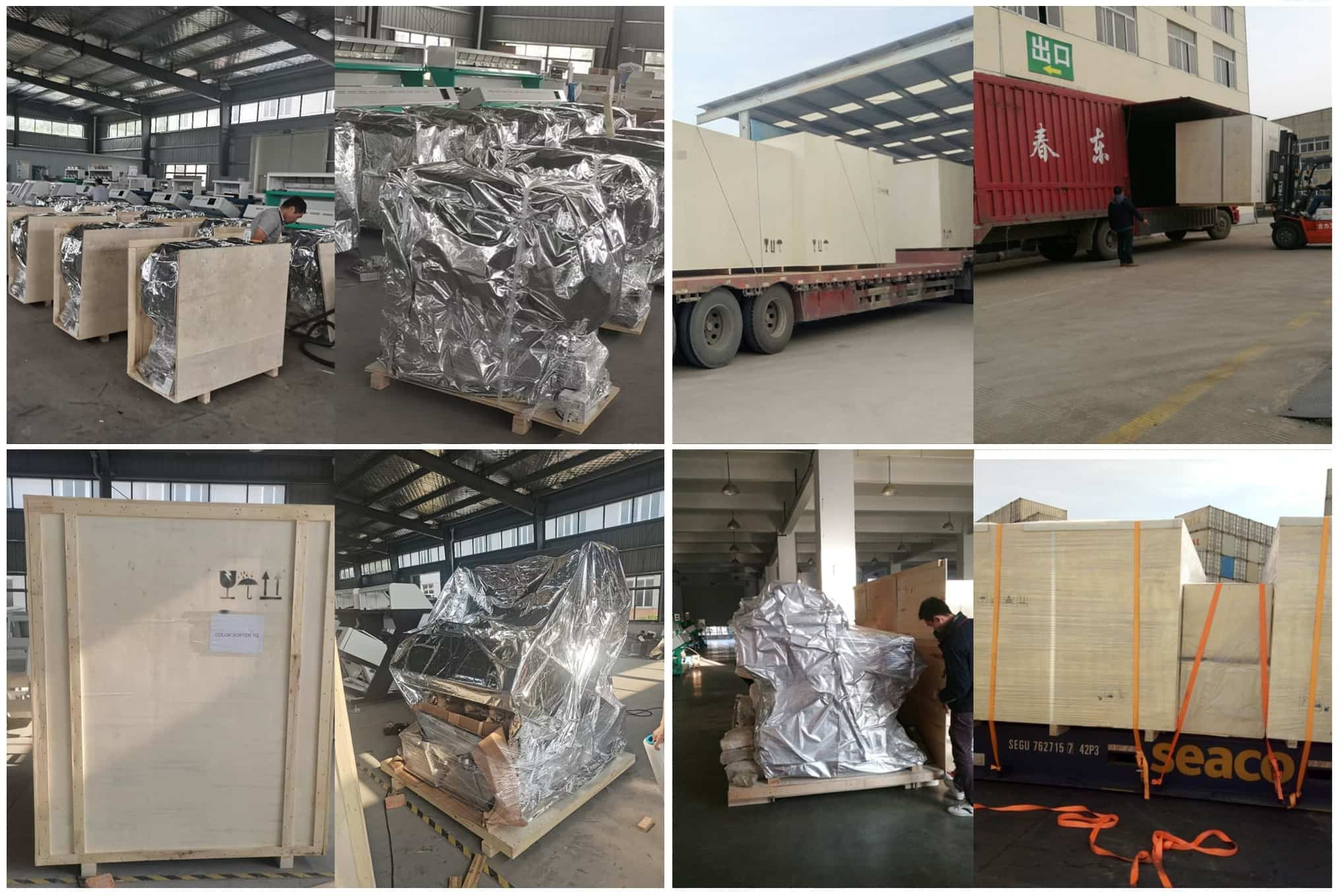

Plywood Case Is Suitable For Sea/Road/Air Transport
Frequently Asked Questions By Customers
1.How accurate is the HT mini color sorter machine?
HT mini color sorter machine adopts the combination of a UHD low distortion industrial grade lens: Detects impurities up to 1-pixel size; multi-spectrum vision inspection system: Sorting not only by color and shape but also by polymer and internal construction; and advanced AI intelligent technology: Smarter analysis and judgment of raw materials to achieve 99.99% sorting accuracy.
Even for the mini color sorter machine, we seek to achieve the standard of industrial grade color sorter.
Small-scale Ideal Choice
Specially designed for small and medium-sized production scale users, in-depth adaptation to small and medium-sized users face daily sorting materials, such as mini rice color sorter can more accurately remove discolored rice, stones, glass, and moldy rice.
Much Lower Cost, Saving Space
Cost lower, our mini color sorter machine has a very favorable price and also has a high performance. The design of the machine is more compact, with no need to reserve a large space to accommodate a mini color sorter machine.
Same Performance Compared to Industrial Grade Color Sorter
With our advanced AI power vision system and high-definition lens, our mini color sorter machine still maintains 99.99% sorting accuracy.
Yes, our HT mini color sorter maintenance is very simple. It passed 72 hours of aging test and 200 factory tests, customer test feedback contacts a running time of 2000 hours still without any failure, so you can rest assured to choose our mini color sorter machine.
This is our mini color sorter machine ,it can separate discoloured rejection from rice,coffee,beans, soybeans,sesame,plastic,nuts,barley,wheat,corn,dried shrimp etc .Capacity from 100-400kgs/h.
The HT mini coffee bean color sorter machine meets your small production volume. Lower cost, ultra-low space, while high efficiency, high accuracy, a 20+ years mini coffee sorter manufacturer is worthy of your trust.
We offer NIR plastic color sorter machines for plastic recycling services for a variety of waste polymers .Easily identify PET and non-PET materials, and accurately remove non-PET materials in PET, such as PVC/PVC plastic sheet / PC / alloy / PE / PP / ABS / PS / PA / PMMA /aluminum sheet and other impurities.Its can separate different materials plastic also.

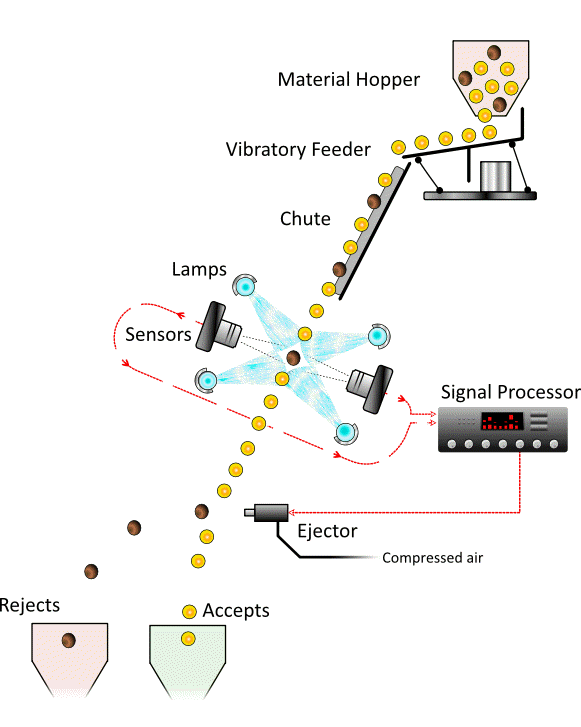

Rice solor sorter machine / rice color sorting machine, also named rice colour sorter, separates rice grains according to color differences in raw rice arising from anomalies like bits of stone, bad rice, black rice, half-husked rice, etc. A high-resolution CCD optical sensor drives a mechanical sorter to separate different granular materials, automatically sorting heterochromatic particles out of the batch of raw rice; removing such impurities in this process improves the quality of the rice.
RGB Multifunction Color sorter machine ,Lentils Color Sorter /Nuts Color Sorter/Seeds Color Sorter/Wheat Color Sorter/Maize Color Sorter/Coffee Beans Color Sorter/Mung Beans Color Sorter/Dal Chana Chickpea Color Sorter/Peanuts Color Sorter/Cereal Color Sorter/Dehydrated Vegetables Color Sorter/Dried Seafood Color Sorter/Ore Color Sorter/Tea Color Sorter /Plastic Color Sorter
We are a professional tea colour sorter manufacturer in China. We are the first Chinese company that utilizes CCD technology. Through years of development, we now have an independent machine finishing section and two color sorting assembly lines. In order to provide better quality products, we introduce 5000+ pixel CCD and high frequency ejector from renowned companies. As a result, our color sorters have achieved the internationally advanced level in terms of quality and reliability. Relying on our reliable quality and considerate quality, our color sorting machines including rice colour sorters, beans colour sorters, salt colour sorters, and plastic granule colour sorters are widely accepted by customers worldwide.
This pecan kernel color sorter can remove bad kernels like black one ,bug-bitten,broken one from good one .It has shape ,color,AI sorting function.It is not only sort pecan nuts kernel but also walnut,almond,cashewnut,pine nuts,hazelnut,peanut ,pistachio , macadamia ,pumpkin seeds,chestnut etc. Sorting capacity : 300kgs/h to 4000kgs/h .
Rice Color Sorter MachineA rice color sorting machine, also named rice colour sorter, separates rice grains according to color differences in raw rice arising from anomalies like bits of stone, bad rice, black rice, half-husked rice, etc. A high-resolution CCD optical sensor drives a mechanical sorter to separate different granular materials, automatically sorting heterochromatic particles out of the batch of raw rice; removing such impurities in this process improves the quality of the rice.
