Payment:
T/T,L/CProduct Origin:
Hefei,ChinaShipping Port:
Shanghai / NingboLead Time：
Within 7-20 daysProduct Name:
Tea color sorterWarranty:
2 yearsMachine Function:
Color/material/shape/size sortingCertificate:
CETea Color Sorter Technical Specifications
|
Model |
T4VS6 |
T3V1-6 |
T2-6A | HY-2A |
|
Output(kg/h) |
<800 |
<600 |
<450 | <50 |
|
Carryover(bad:good) |
>5:1 |
>5:1 |
>5:1 | >5:1 |
|
Accuracy(%) |
99% |
99% |
>99% | >99% |
|
Voltage(V/Hz) |
380/50 |
380/50 |
380/50 | 380/50 |
|
Power(Kw) |
2.4-4 |
2.1-3.5 |
2-4 | 0.6-0.8 |
|
Air pessure(Mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 | 0.7 |
|
Consumption(L/min) |
<5400 |
<5000 |
4500 | 1500 |
|
Weight(Kg) |
2800 |
2400 |
1800 | 200 |
|
Dimensions(mm) |
2676*2530*3432 |
2360*2424*1930 |
2529*1940*2111 | 1188*1475*1550 |
We are a professional tea colour sorter manufacturer in China. We are the first Chinese company that utilizes CCD technology. Through years of development, we now have an independent machine finishing section and two color sorting assembly lines. In order to provide better quality products, we introduce 5000+ pixel CCD and high frequency ejector from renowned companies. As a result, our color sorters have achieved the internationally advanced level in terms of quality and reliability. Relying on our reliable quality and considerate quality, our color sorting machines including rice colour sorters, beans colour sorters, salt colour sorters, and plastic granule colour sorters are widely accepted by customers worldwide.
We are looking forward to serving you. Welcome to contact for more information.

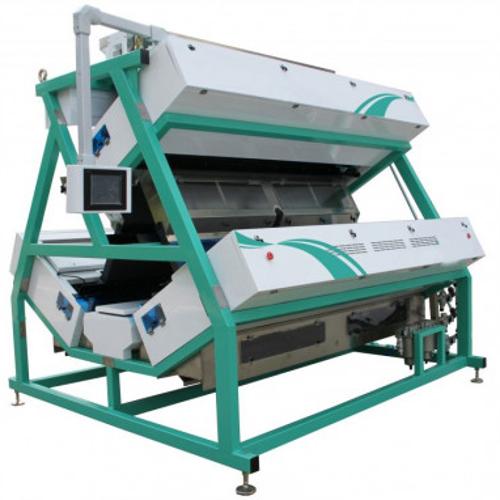

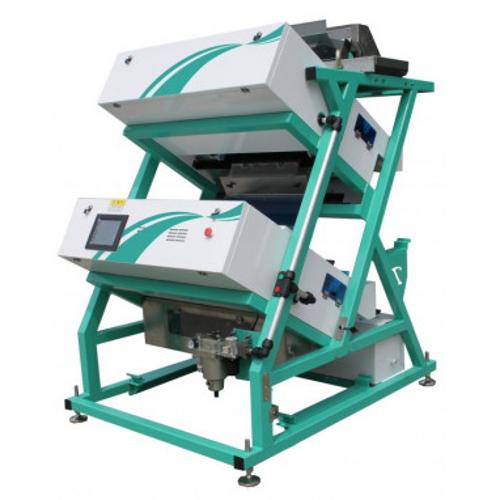

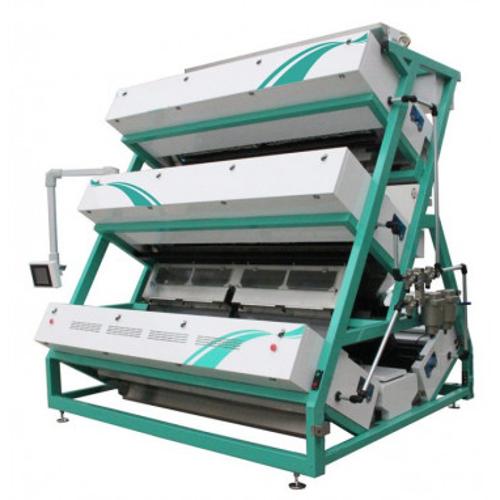

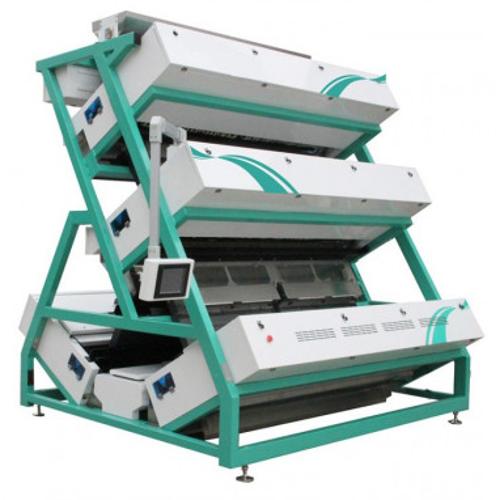

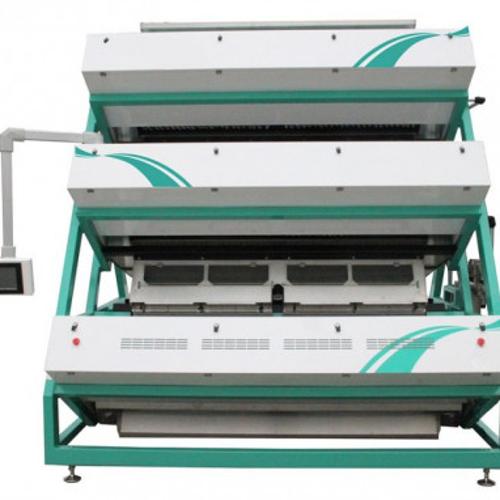

Our tea color sorter, a type of CCD color sorter, is specially designed to sort various tea. Some of its characteristics including:
1. Special mechanical design
Using double/three/four layer sorting system, our tea color sorter finishes material sorting at one stroke, which greatly reduces the damage rate of tea.
Specialized feed system is used to ensure the uniformity of materials and reduce damage rate.
2. High-speed, high-resolution CCD camera
Our tea color sorter uses high-speed linear array CCD image sensor (5000+ pixels) and high-accuracy lens to realize image acquisition. It can detect 0.04mm2 heterochromatic regions.
3. Specialized image processing algorithm
The algorithm based on the shape and color of tea enables our sorter to accurately separate defective materials.
4. High quality ejector
Imported ejector accurately controls the flow and direction of air, making the material rejection more accurate.
5. High flexibility, wide range of application
Our color sorter is suitable for color sorting of different tea, with various optimal working mode
Example of Sorting
Customer :
More information about color sorter
Separate Materials By Color
Color sorters are intensively effective in sorting materials of different colors. Rice, grains, millets, and cereals are examples you might need to sort based on colors.
Separate Materials By Sizes
It is prevalent to sort foods by size. In general, a color sorter can sort products by sizes of 0.1mm to 100mm.
Separate Materials By Shapes
Sorting by shape is very useful to classify food like tea leaves and seafood. You can set the parameters you want and let the machine do the work.
Separate Materials By Types
In some cases, you might need to sort materials like nuts, seeds, and beans by type. To classify them efficiently and pick only the healthy ones.

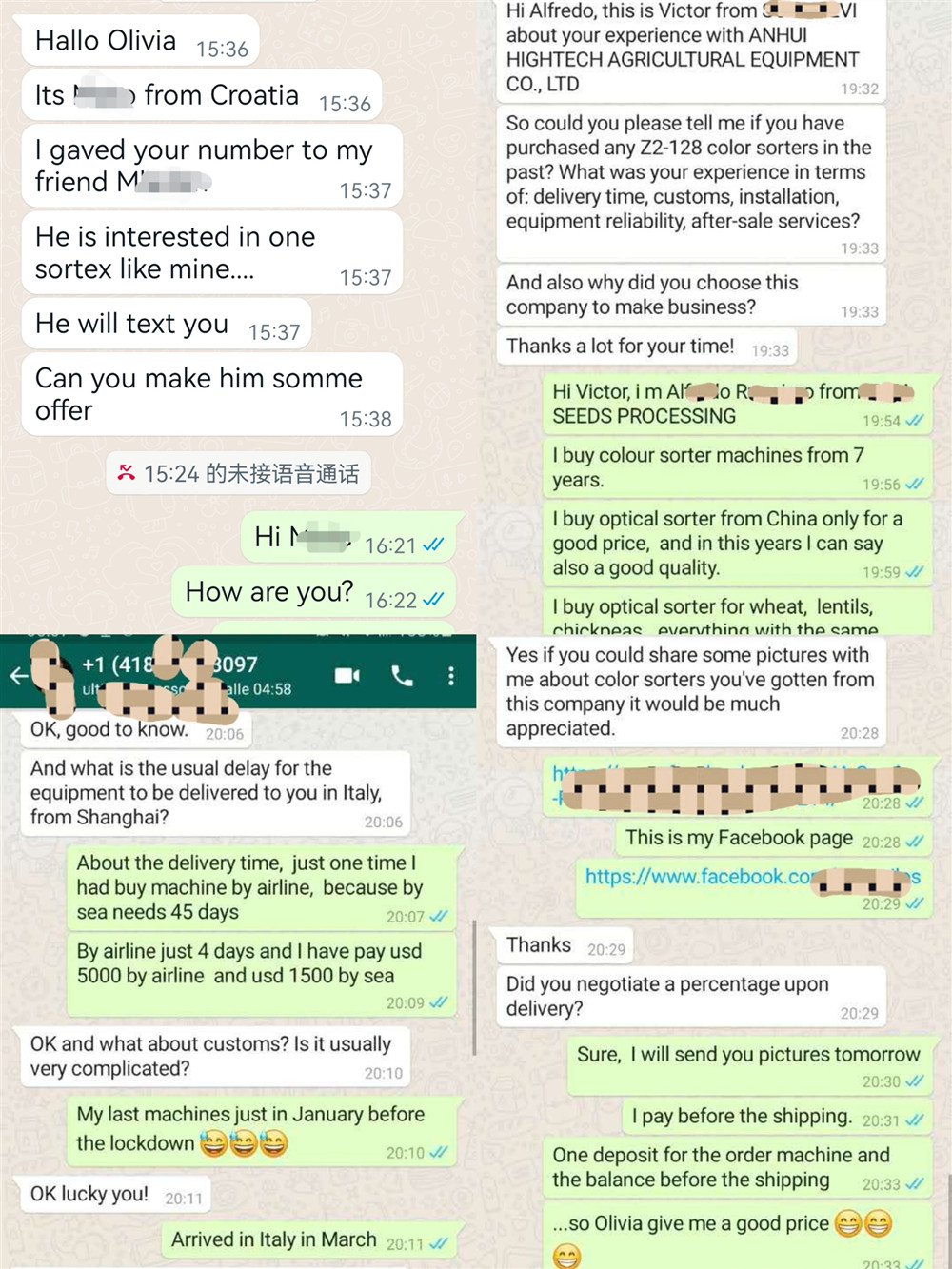

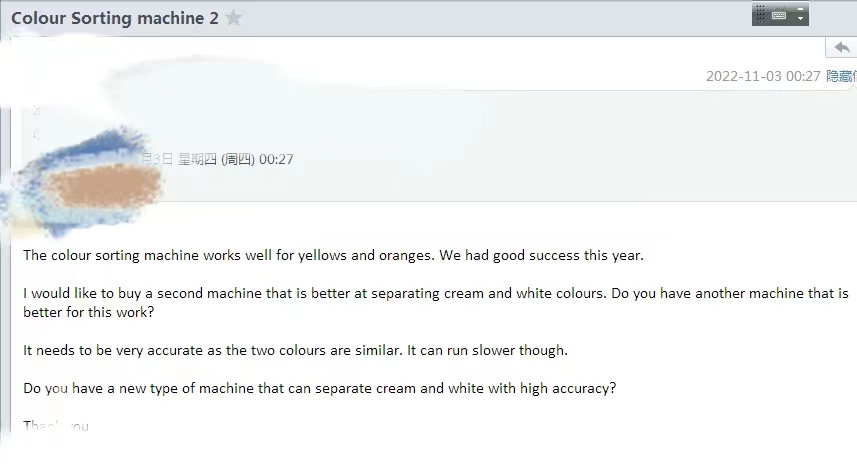

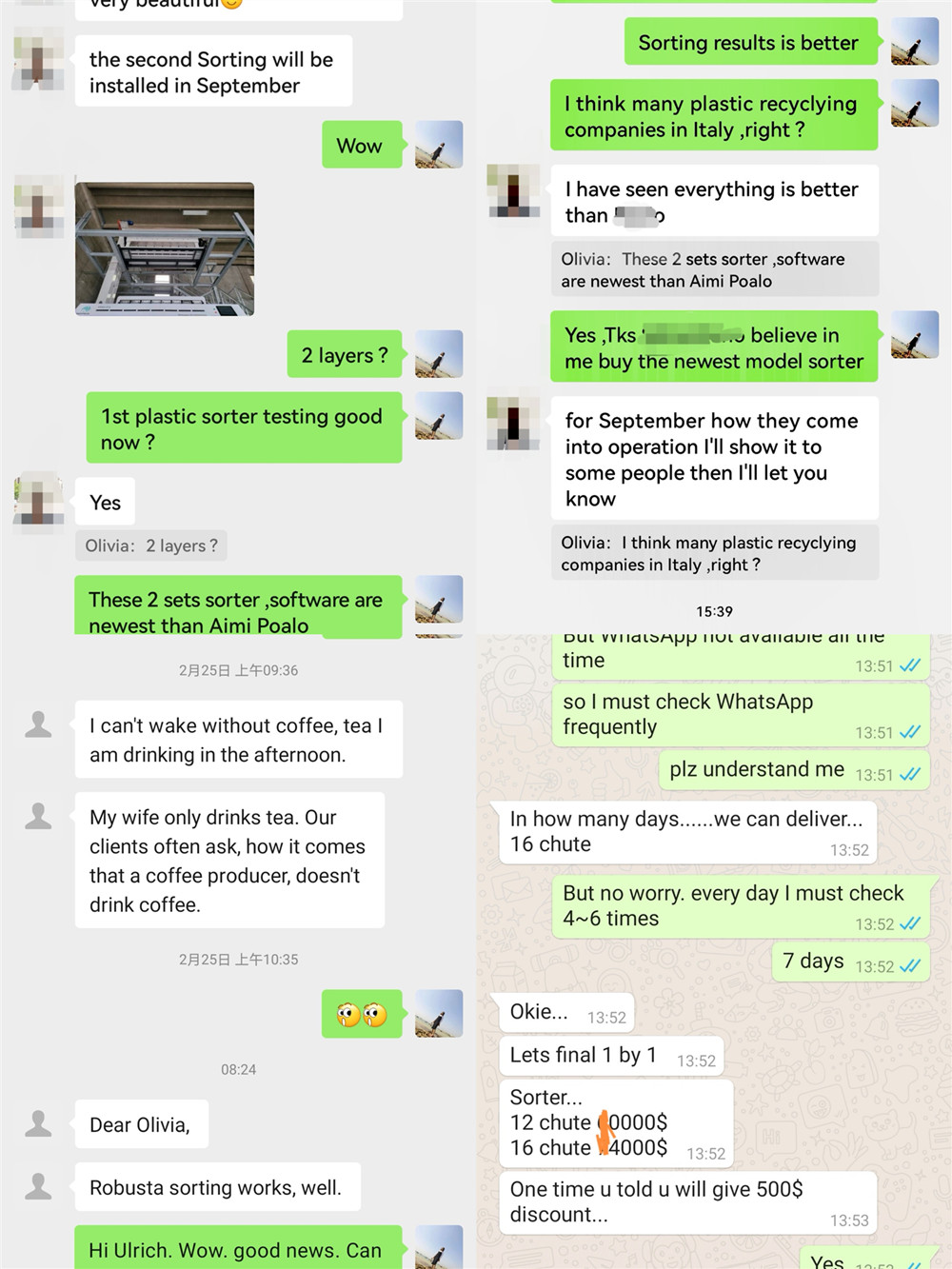

Customer Feedback Is The Driving Force Behind Our Progress:
Plywood Case Is Suitable For Sea/Road/Air Transport:
1. How to use the machine?
We will supply the Installation instructions and videos for guiding you how to set color sorter.
2. How long about the guarantee period?
Two years. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.
4. Is oversea service available?
Yes, we will send engineer go abroad when you need it.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.
6. If you have agent in our country?
We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.
We have many installation cases and working videos.Please contact us freely if you need.
Automatic CCD Tea Color Sorting Machine is a high-tech optoelectronic machinery and equipment, which is based on the color difference between tea stalk, yellow leaf and the accepted, using high resolution full-color CCD cameras to catch it.
Tea Color Sorter is specially designed for single tea, Pu'er tea, rock tea, green tea, black tea, black tea, and fragrant tea, licorice, Tieguanyin tea and other tea varieties ear design. Sorting Capacity : 0.5-4tons per hour .
Sorting cherry coffee beans is a crucial step in the post-harvest process. Coffee cherries are harvested with varying degrees of ripeness, and not all cherries are of the desired quality. Defective or unripe cherries can negatively impact the flavor and quality of the final coffee product. Therefore, it is essential to remove these unwanted cherries before further processing,the unwanted cherries beans including green one ,medium ripe ,not ripe enuogh one ,over ripe one etc.
Recycling plastic sorting machine is suitable for all kinds of plastics flakes, recycled plastics color sorter, also can be used to choose the white, yellow, black, red, green, blue and other colors of color selection. Can also apply to the PC, ABS, PA, PS, PET and PP separation of particles or material, etc.
Electrostatic separators of particles:Application to sorting mixed plastic scraps for the recycling purpose.Like PET/PVC, ABS/PMMA, PS/ABS, PVC/rubber, PVC/PE,HDPE/PP, PP/PS etc. Our Plastic Electrostatic Separators are designed to address the pressing challenges faced by plastic recycling companies, particularly the separation of difficult materials like black PP from PE. These machines are not only versatile—capable of handling mixed plastic scraps like PET/PVC, ABS/PMMA, PS/ABS, PVC/rubber, PVC/PE, HDPE/PP, and PP/PS—but also offer several competitive advantages: High Throughput: Our separators ensure large-scale sorting, making them suitable for operations requiring significant productivity without compromising efficiency. Low Carry-Out Ratio: The advanced technology minimizes the carry-over of unwanted materials, ensuring a cleaner output. High Sorting Accuracy: Precision sorting technologies ensure that even challenging materials like black PP and PE are separated with high efficiency. With these superior features, our separators significantly improve recycling efficiency and reduce operational costs, making them an ideal solution for recycling companies worldwide.
Peanut optical sorting machines-Aflatoxin removalPeanut color sorting machine can sort all types of foreign material, including stalks ,glass, shell ,stones, stalks, stems and Johnsongrass as well as invisible to the human eye defects such as aflatoxin from good peanuts like white peanuts ,red peanuts,peeled peanuts and peanuts in shell .
Seed sorters can sort all kinds of seeds including vegetable,herbage seeds etc .It can remove impurity and discolored out from good one .Seeds color sorter is suitable for both small and large -scale processing of field seeds and offer precision sorting to maximised yields and profits.
Mini rice color sorter can meet the needs of small production users.Small size can easy to install and move,low price with multi-function.Capacity from 100-300kgs per hour .
