Order(MOQ):
1Payment:
T/T,L/CProduct Origin:
Hefei,ChinaShipping Port:
Shanghai / NingboLead Time:
Within 7-20 daysProduct Name:
Plastic pellets color sorterWarranty:
2 yearsMachine Function:
Color/material/shape/size sortingCertificate:
CE
1. The selected materials like the plastic pellet enter the machine from the hopper at the top.With the vibration of the vibrator device,the selected materials are conveyed along the channels,enter the observation area of the sorting room, and passe between the sensor and the background plate.
2. Under the affect of the light,the system generates an output signal to drive the solenoid valve to blow out the different-colored particles to the waste hopper with the intensity of the light and the color change.And the good materials continue to fall into the finished hopper .
Main Applications
★
It is specifically designed to sort plastic particles and remove plastic pellets with small black spots(smaller than 1mm), different colors, shapes, etc. from transparent, opaque and colored original pellets,maximizing material purification and minimizing waste.
★
Excellent sorting performance for very light-colored granules, it is the best solution for high-end pellets puri fication.
HIGHLIGHTS:
Transparent Pellet Sorting Expert
Inheriting the excellent performance of G-LG series, our new G-LZ series machine has upgraded the recognition technology. The useof the shadowless ultra-clear camera can eliminate the reflection and refraction of transparent materials, and can greatly improve the sorting effect of extre mely light-colored plastic pellets.
High Throughput
Anti-blocking material design, durable & high frequency ejector valves, large throughput & balanced feeding system, support lon g-term un manned control work, fully meet your production needs.
Stable Operation
Explosion-proof motor and ultra-wide soft convey or belt ensure good material scatter, small bounce rate, stable transportation, high sorting efi ciency, ensure y our stable production.
High Accuracy
Hig h-speed sensors, chips and "missile guidance" systems ensure the sorting accuracy ratesas high as 99%.

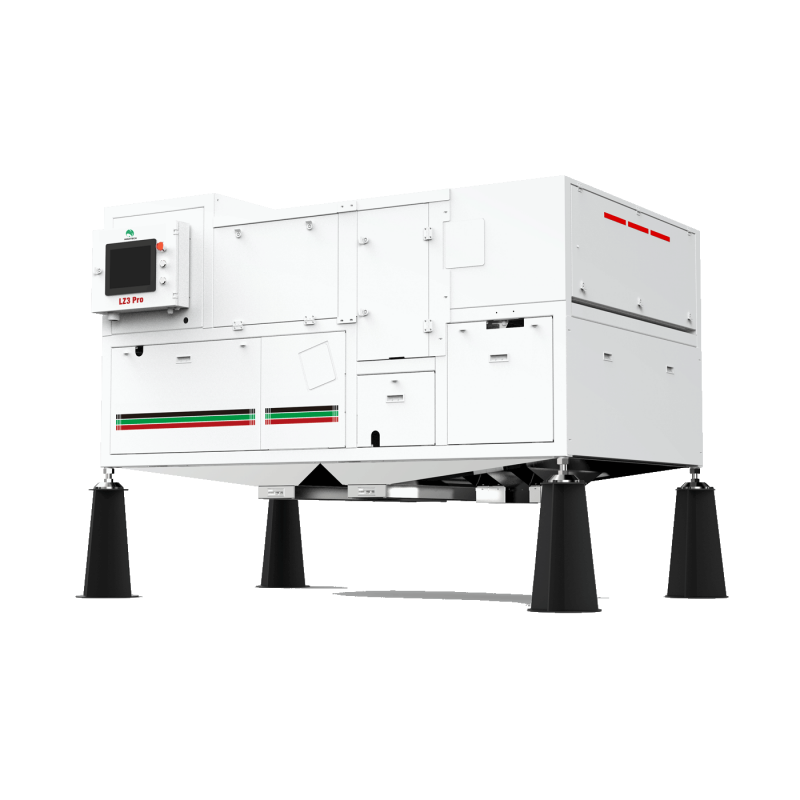

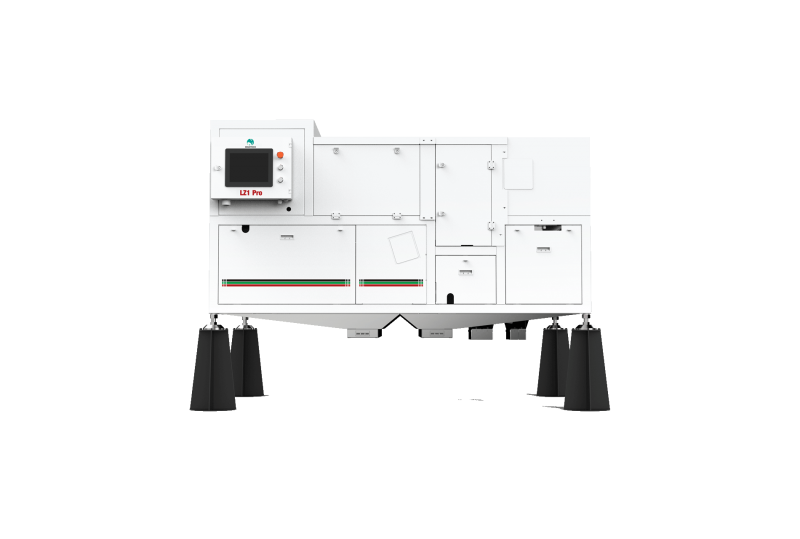

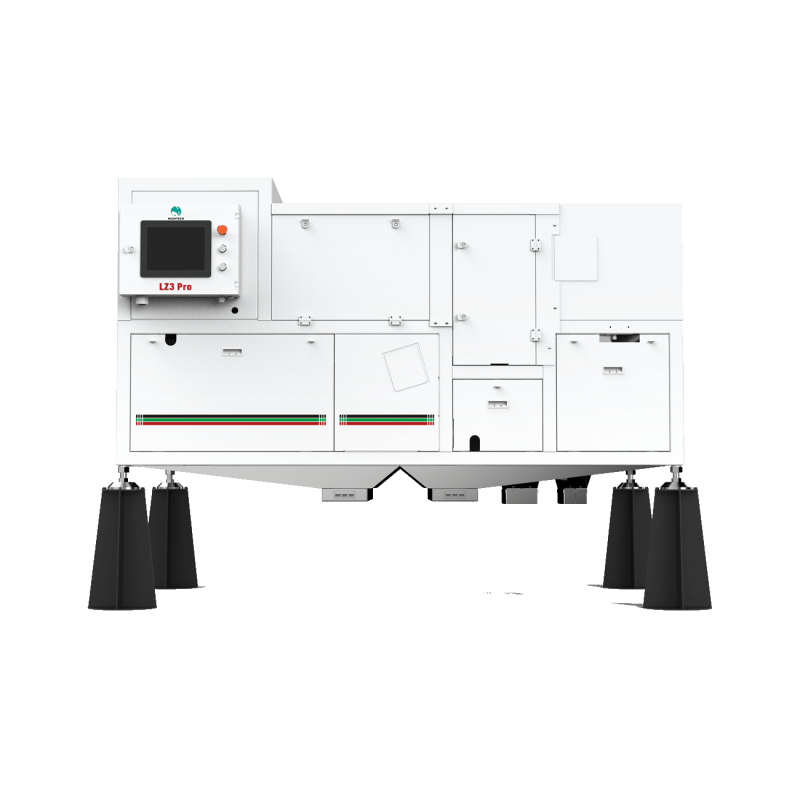

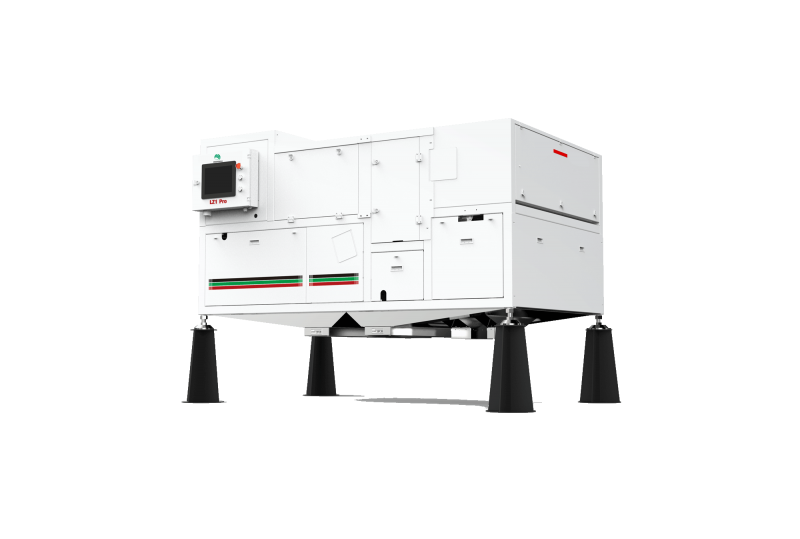

Intelligent Plastic Sorting Machine Technical Specifications
Model |
G-LZ1 |
G-LZ3 |
G-LZ6 |
Capacity(t/h) |
1-1.5 |
1.5-2.5 |
2.5-4 |
Number of Execution Units |
180 |
300 |
420 |
Size of Sorting(mm) |
2*2-30*30 |
2*2-30*30 |
2*2-30*30 |
Power(kw) |
1.8 |
2.4 |
3.5 |
Dimensions(L*W*H)(mm) |
1455*1597*2142 |
2075*1597*2142 |
2625*1597*2142 |
Weight(kg) |
940 |
1330 |
1650 |
Intelligent Plastic Sorter Device Characteristic
* Separate various colors;
* Efficiently sort needed material from rejected one;
* Adopts latest software, highly precise sorting, with low product loss;
* Strengthened spout and air jet design for high per-cent contaminated material, durable and dependent;
* Adopts high-resolution image sensor, equipped with high-speed automatic identifying and analysing system;
* New type touch-screen operation platform, big colorful screen and user-friendly operation interface, can easily change sorting precision to the best quality;
* Except for some traditional functions like double-face sorting and second-time sorting, it also has more intelligent functions, which simplify operation and handle.
Plywood Case is Suitable for Sea/Road/Air Transport:
1. How to use the machine?
We will supply the Installation instructions and videos for guiding you how to set color sorter.
2. How long about the guarantee period?
Two years. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.
4. Is oversea service available?
Yes, we will send engineer go abroad when you need it.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.
6. If you have agent in our country?
We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.
