Plastic color sorter machine / Plastic sorting machine

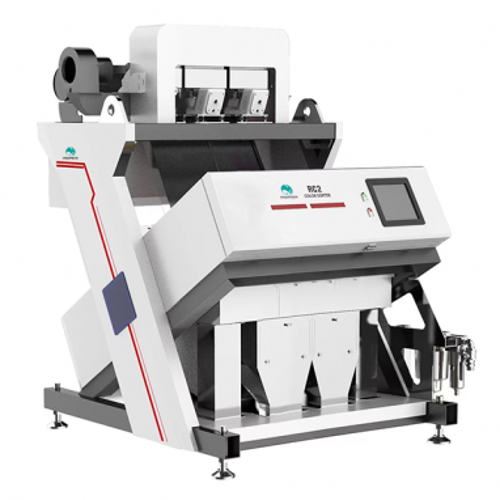

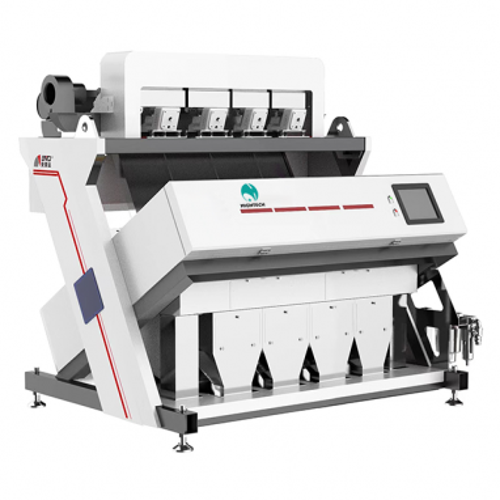

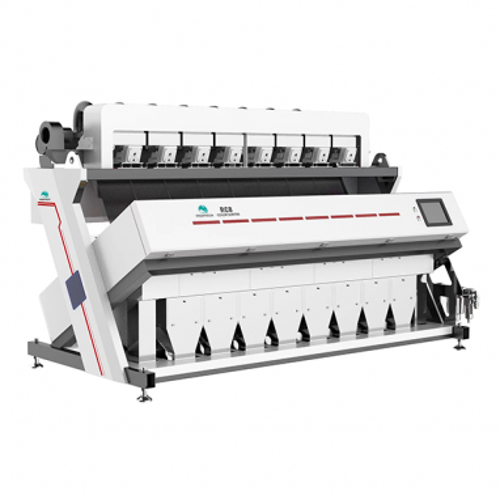

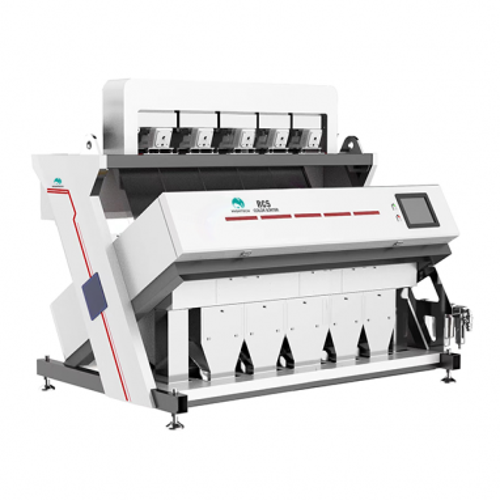

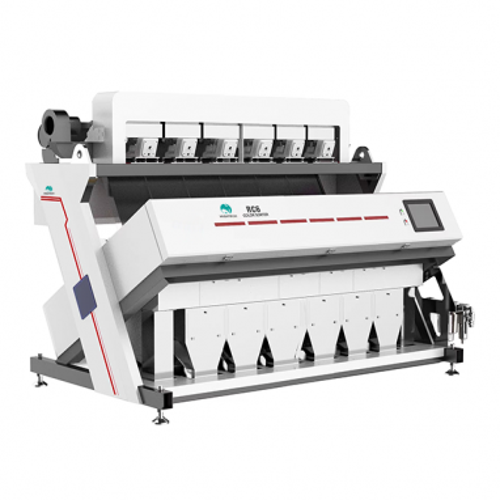

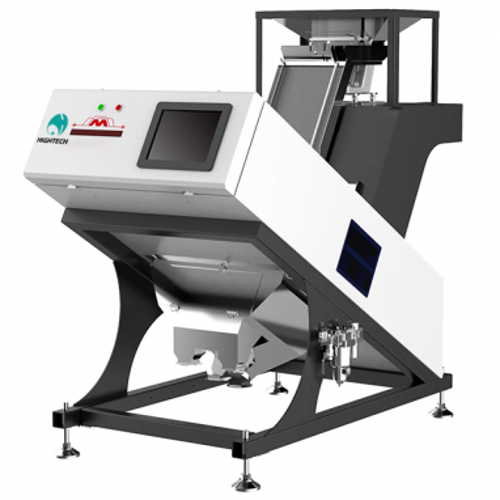

Optical Plastic Color Sorter
Optical Plastic Color Sorter
Optical Plastic Color Sorter
Optical Plastic Color Sorter
Optical Plastic Color Sorter
Optical Plastic Color Sorter
Optical Plastic Color Sorter

Plastic color sorter machine / Plastic sorting machine

Plastic color sorter can sort discoloured flakes,flakes with stickers,non-transparent materials,metals and other foreign materials from good one .
  • Payment:

    T/T,L/C
  • Product Origin:

    Hefei,China
  • Shipping Port:

    Shanghai / Ningbo
  • Lead Time:

    Within 7-20 days
  • Product Name:

    Plastic color sorter
  • Warranty:

    2 years
  • Machine Function:

    Color/material/shape/size sorting
  • Certificate:

    CE

Sorting solution for plastic recycling--Sorting creates regenerative value

How does plastic color sorter machine help you? Plastic flake color sorting machine will increase the value of your recycled plastic material.This cutting edge technology has been refined specifically for the plastic recycling sector. Recently manily PET recycling factory who need to sort transparent PET from light blue/light green/light yellow color PET.Its a good news for these plastic plants ,i recommend our newest model PET optical plastic sortex--- PET plastic colour sorting machine that sorts plastic packaging and other items by different colors into three distinct groups: Clear + Transparent light blue & cLear,transparent green, and other colors.

High efficiency in removal of unwanted colours,glued flakes and foreign material,resulting in the lowest contamination level.


Main Applications :

General color sorting includes single-sided color, double-sided color plastic flakes.

Detect and remove the opaque and multicolored flakes in 3A Grade transparent flakes, blue and white flakes.

Detect and remove the opaque and black flakes from the multicolored materials .

Detect and remove black materials from PC alloy, PC/PP/PS/ABS and other mixtures.

Separate red & yellow fakes, blue & green flakes, black flakes, multicolored flakes, transparent ,flakes and white flakesinPP/PE.



Core Technologies:

Optical plastic sorting machine for mixed color material Ideal for removing contamination and increasing recycling plastics value. Ability to programme and sort multi colors.

1.Large Database

The massive sorting application database is interactively stored in the cloud to provide you with a wide range of material solutions.

2.Optical system

The unique sensor, HT Wisdom DgS chip, and ARM work together to greatly improve the operating efficiency of the machine.

3.Conveying system

The thoughtful material conveying system design includes balanced feeding and anti-blocking material design to meet production stability.

4.Light source

The latest light source system with high brightness and high penetration can intelligently match material selection requirements and environmental changes.

Plastic color sorting machine application:PET bottle flakeHDPE/LDPE bottle flake/ABS/PS/PC engineering plastic.


Sorter specifications



Model Z1-64 Z2-128 Z2-192 Z4-256 Z5-320 Z6-384 Z7-448 Z10-640 Z12-768
Type 6SZM-64 6SZM-128 6SZM-192 6SZM-256 6SZM-320 6SZM-384 6SZM-448 6SZM-640 6SZM-768
Output(t/h) 0.5-1 1.5-4 3-6 5-10 6-10 7-12 8-15 13-24 18-30
Sorting Accuarcy(%) ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99
Optimized Carryover (Bad:Good) ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1
Weight (kg) 400 600 700 800 900 1000 1100 1400 1600
Resolution(mm2) 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04
Power(kw) 1.0 1.5 2.0 2.5 3.0 4.0 4.5 6.0 8.0
Dimensions (LxWxH)(mm) 1070*1650
x2010
1370x1650
x2010
1684x1650
x2010
1998x1650
x2010
2312x1650
x2010
2626x1650
x2010
2930x1650
x2010
4100x1650
x2010
2670x3000
x2010
Power Supply(V/Hz) 220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)

1. The above data is based on the 2% contamination, and real output depends on the material and its contamination.
2. If products update, no further notice. Please refer to the real machine.



Examples of sorting




More information about color sorter

Separate Materials By Color

Color sorters are intensively effective in sorting materials of different colors. Rice, grains, millets, and cereals are examples you might need to sort based on colors.

Separate Materials By Sizes

It is prevalent to sort foods by size. In general, a color sorter can sort products by sizes of 0.1mm to 100mm.

Separate Materials By Shapes

Sorting by shape is very useful to classify food like tea leaves and seafood. You can set the parameters you want and let the machine do the work.

Separate Materials By Types

In some cases, you might need to sort materials like pp,pe,Idpe,hdpe by type. To classify them efficiently and pick only the healthy ones.

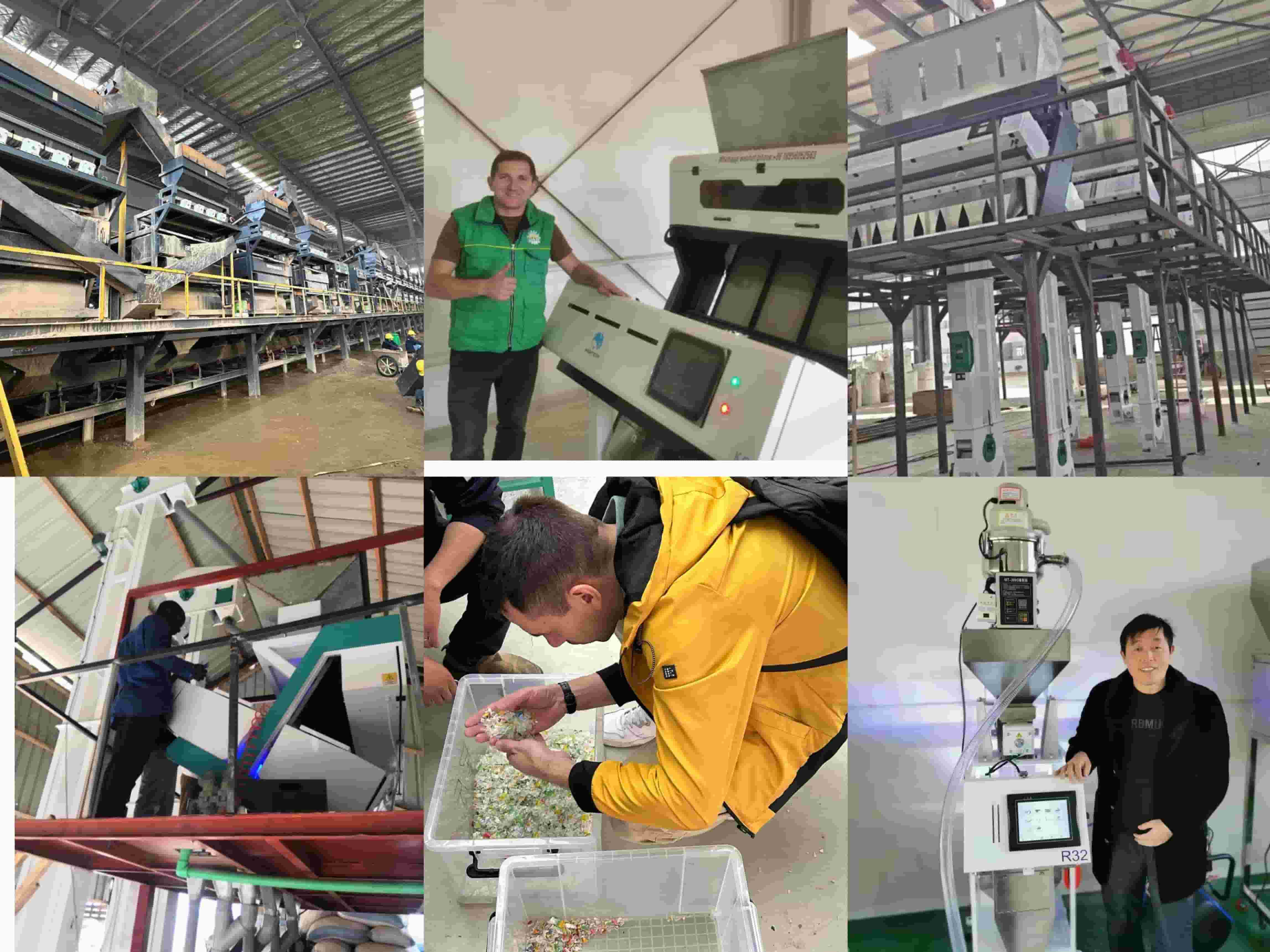

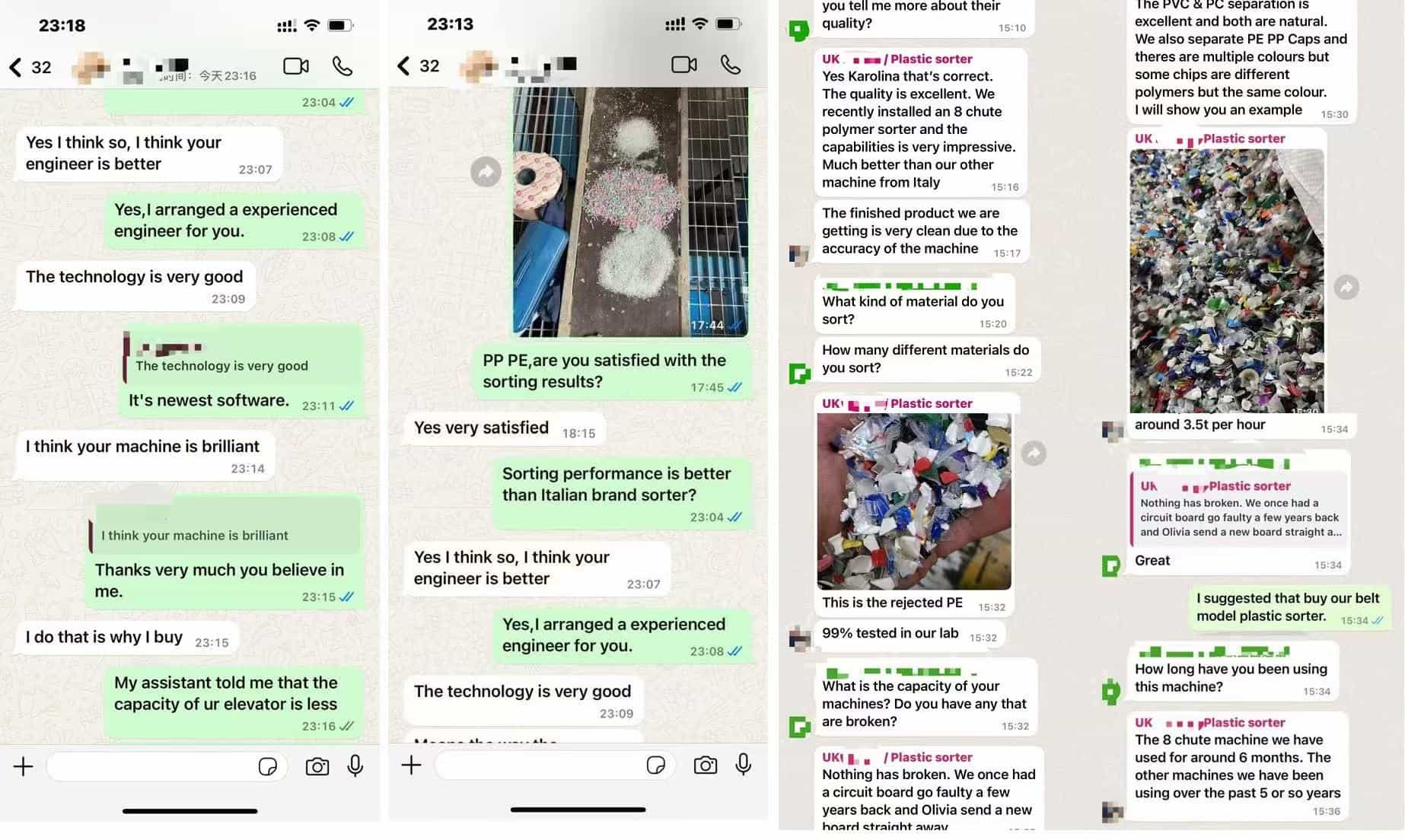

Customer feedback is the driving force behind our progress:

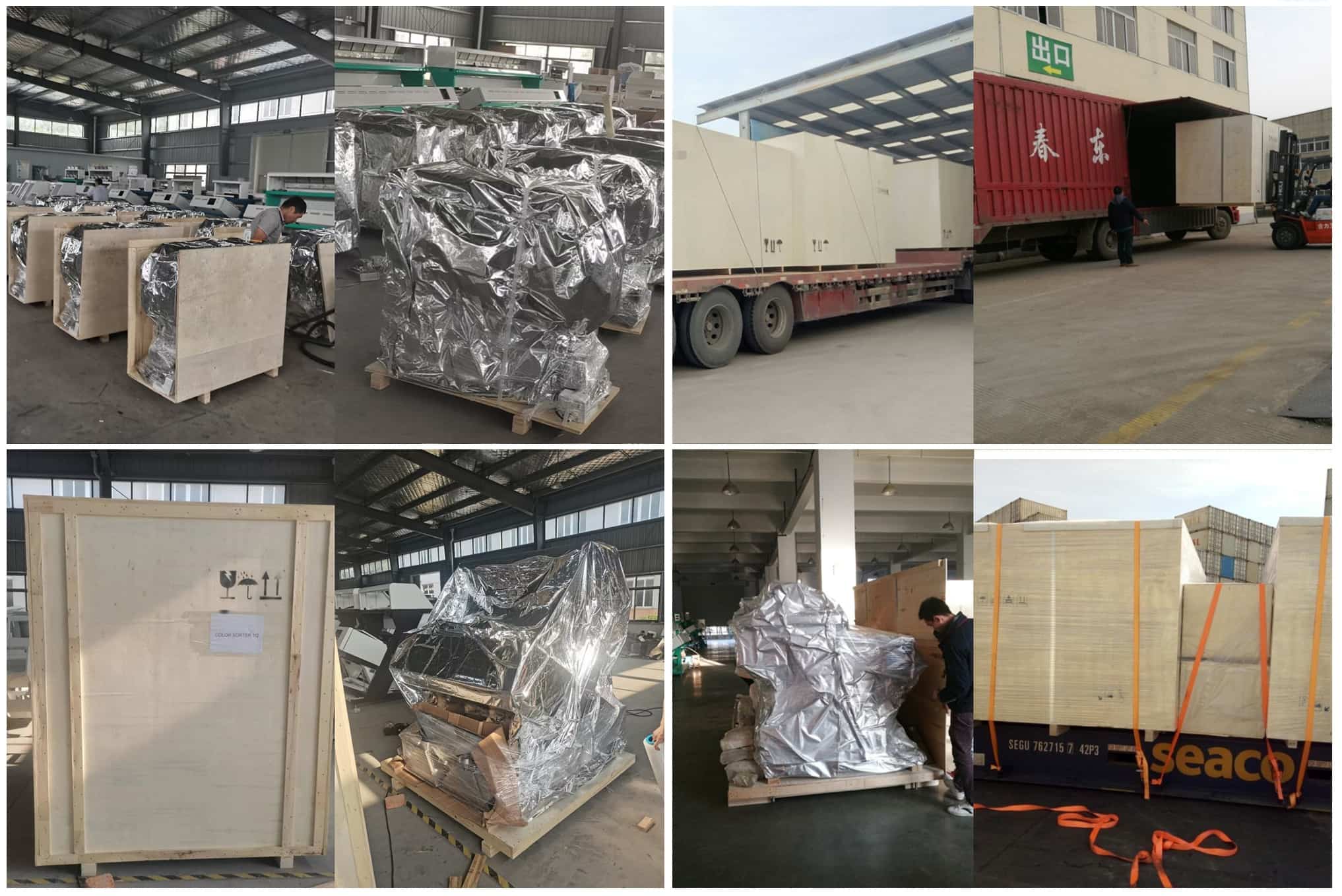

Plywood Case is Suitable for Sea/Road/Air Transport:

Frequently Asked Questions by Customers:

1. How to use the machine?

We will supply the Installation instructions and videos for guiding you how to set color sorter.



2. How long about the guarantee period?

Two years. And we supply lifelong software upgrade services for our customers.



3. Can you supply the air compressor, air tank and air filters?

Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.



4. Is oversea service available?

Yes, we will send engineer go abroad when you need it.



5.How to calculate Installation personnel cost?

On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.



6. If you have agent in our country?

We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.

We have many installation cases and working videos.Please contact us freely if you need.
