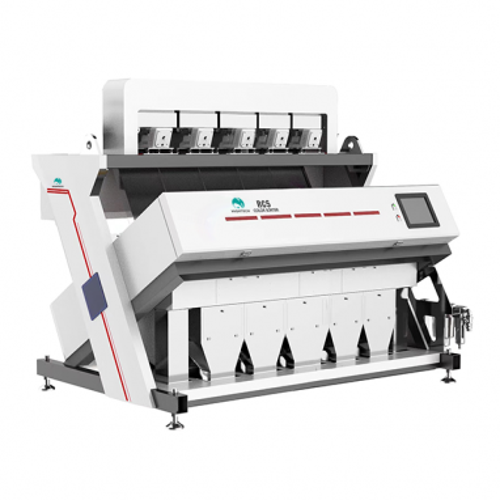

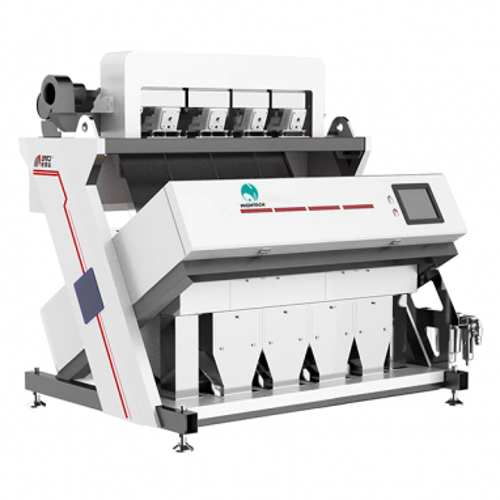

Plastic Flake Sorting Machine For Recycling

Separating different materials plastics and different colors plastics in the plastics recycling industry.Color and materials sorting ,all- in- one machine.



Main Applications:



Identify and separate impurities in PE bottle flakes and non-PE materials such as

PP/PET/PVC/PC/alloy/AB S/PS/PA/PMM A/aluminum, suitable for the purification of PE mixture, white brick,salt bleaching material and etc.



Identify and separate non-PET materials in PET flakes, such as PVC/PVC

sheet/PC/alloy/PE/PP/ABS/PS/PA/PMMA/aluminum and other impurities, which are applicable to the purification of high-quality 3A bottle flakes, blue and white fakes, variegated flakes etc.



Highlights

All-in-one Sorting Machine

Combining NIR technology, high-precision multi-spectral infrared camera with maintenance-free light source heat dissipation scheme and long-life infrared light source can purify plastic flakes according to color and material at the same time.



High And Stable Throughput

High-output vibrator, multi-stage vibration feeding device, anti-blocking material design, support long-term unmanned control work, fully meet your production needs.



Flexible Support

Supports single sorting, re-sorting, and 5-time sorting. Greatly reduce your energy consumption.Provide different solution configurations according to your personalized sorting needs.



High Accuracy

High-speed sensors, chips and "missile guidance" systems ensure the sorting accuracy rates as high as 99%.

Parameter Table

Model Z1-64 Z2-128 Z2-192 Z4-256 Z5-320 Z6-384 Z7-448 Z10-640 Z12-768
Type 6SZM-64 6SZM-128 6SZM-192 6SZM-256 6SZM-320 6SZM-384 6SZM-448 6SZM-640 6SZM-768
Output(t/h) 0.5-1 1.5-4 3-6 5-10 6-10 7-12 8-15 13-24 18-30
Sorting Accuarcy(%) ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99
Optimized Carryover (Bad:Good) ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1
Weight (kg) 400 600 700 800 900 1000 1100 1400 1600
Resolution(mm2) 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04
Power(kw) 1.0 1.5 2.0 2.5 3.0 4.0 4.5 6.0 8.0
Dimensions (LxWxH)(mm) 1070*1650
x2010
1370x1650
x2010
1684x1650
x2010
1998x1650
x2010
2312x1650
x2010
2626x1650
x2010
2930x1650
x2010
4100x1650
x2010
2670x3000
x2010
Power Supply(V/Hz) 220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)





1. The above data is based on the 2% contamination, and real output depends on the material and its contamination.
2. If products update, no further notice. Please refer to the real machine.

Examples Of Sorting

More information about color sorter

Separate Materials By Color

Color sorters are intensively effective in sorting materials of different colors. Rice, grains, millets, and cereals are examples you might need to sort based on colors.

Separate Materials By Sizes

It is prevalent to sort foods by size. In general, a color sorter can sort products by sizes of 0.1mm to 100mm.

Separate Materials By Shapes

Sorting by shape is very useful to classify food like tea leaves and seafood. You can set the parameters you want and let the machine do the work.

Separate Materials By Types

In some cases, you might need to sort materials like nuts, seeds, and beans by type. To classify them efficiently and pick only the healthy ones.

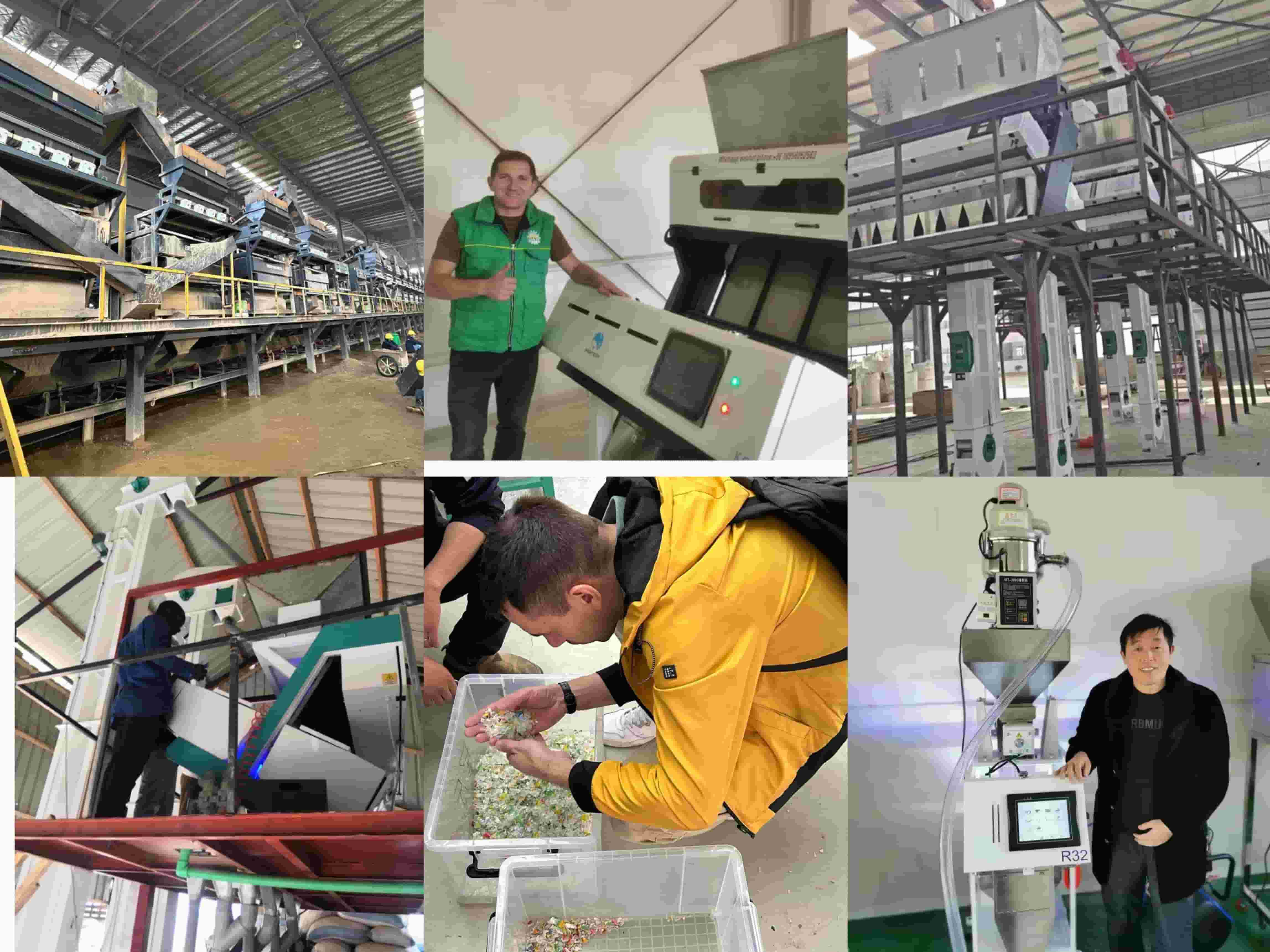

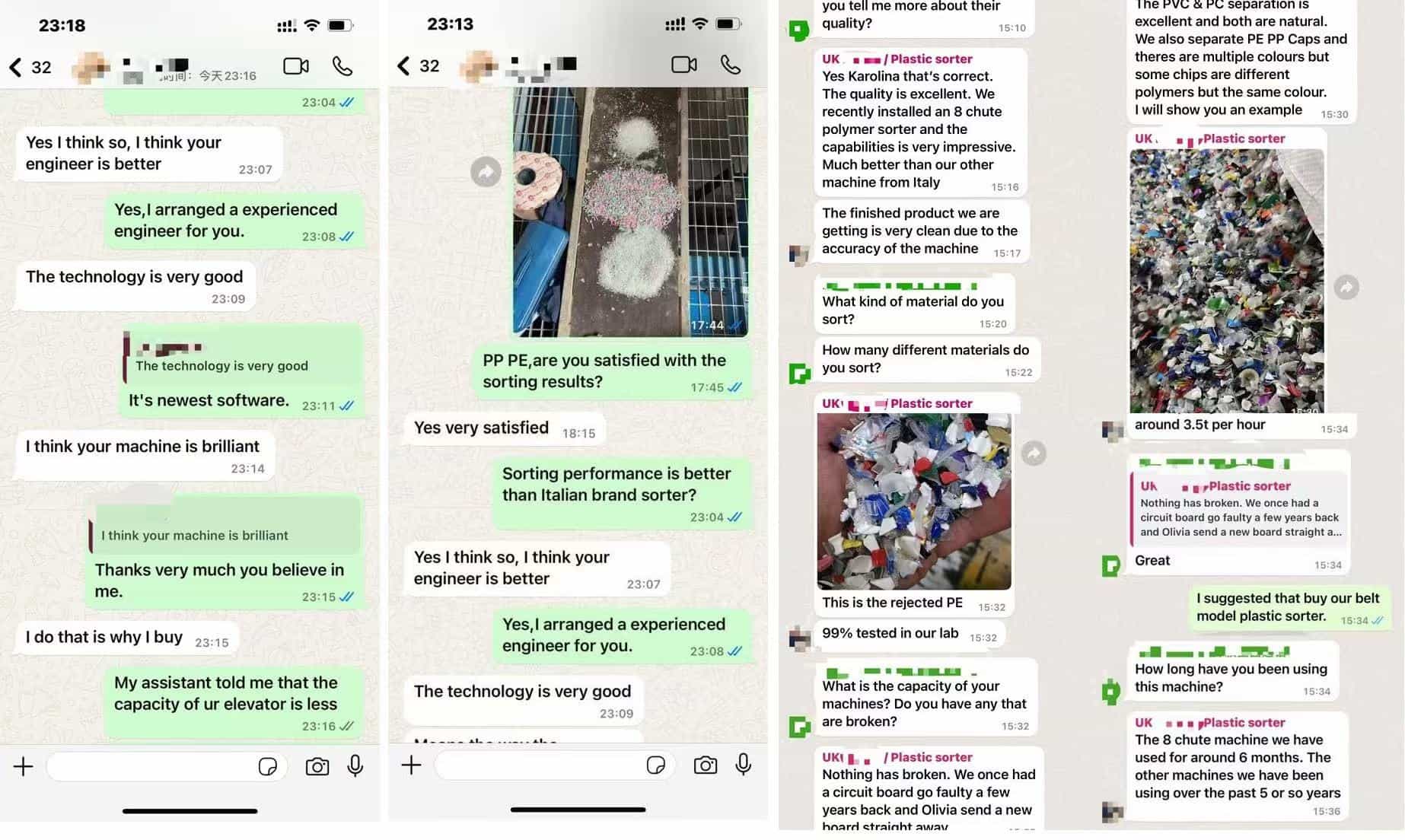

Customer feedback is the driving force behind our progress:

Plywood Case is Suitable for Sea/Road/Air Transport:

Frequently Asked Questions by Customers:

1. How to use the machine?

We will supply the Installation instructions and videos for guiding you how to set color sorter.



2. How long about the guarantee period?

Two years. And we supply lifelong software upgrade services for our customers.



3. Can you supply the air compressor, air tank and air filters?

Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.



4. Is oversea service available?

Yes, we will send engineer go abroad when you need it.



5.How to calculate Installation personnel cost?

On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.



6. If you have agent in our country?

We have agent in UK,NewZealand,Italy,Crotia,India,Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.

We have many installation cases and working videos.Please contact us freely if you need.
