Payment:
T/T,L/CProduct Origin:
Hefei,ChinaShipping Port:
Shanghai / NingboLead Time：
Within 7-20 daysProduct Name:
Pecan color sortingWarranty:
2 yearsMachine Function:
Color/material/shape/size sortingCertificate:
CEHT pecan nuts color sorter can sorting adhesive membrane, discoloured one ,foreign matter and especially for whitening process slight color defects caused lby extracting snacks. So to keep first class quality for operations product.
Products Features
1) The min. identify can be up to 0.04 mm2 , makes color sorting reach a new high level, meets demand of accurate sorting.
2) Advanced and Reasonable optics design guarantees accurate sorting.
3) Double sorting process guarantees final ideal sorting result.
4) Reasonable channel assigns suitable for sorting grain with various size.
5) Advanced production equipments from Germany and strict management under ISO9001:2008 guarantees machines' precision.
6) Great Data transferring Bandwidth guarantees the data transferred rapidly, makes machine perform consistently and stably.
7) Latest Patented technology of image processing algorithm upgrades the accuracy, and accelerates the operation speed.
8) Several sorting modes meet various requirements.
9) Advanced system design with China Patent guarantees machine run stably for a long time.
10) Concise touch panel from Japan helps customer operate easily.
Parameter Table
| Model | Z1-64 | Z2-128 | Z2-192 | Z4-256 | Z5-320 | Z6-384 | Z7-448 | Z10-640 | Z12-768 |
| Type | 6SZM-64 | 6SZM-128 | 6SZM-192 | 6SZM-256 | 6SZM-320 | 6SZM-384 | 6SZM-448 | 6SZM-640 | 6SZM-768 |
| Output(t/h) | 0.5-1 | 1.5-4 | 3-6 | 5-10 | 6-10 | 7-12 | 8-15 | 13-24 | 18-30 |
| Sorting Accuarcy(％) | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
| Optimized Carryover (Bad:Good) | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 |
| Weight (kg) | 400 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1400 | 1600 |
| Resolution(mm2) | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 |
| Power(kw) | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 4.5 | 6.0 | 8.0 |
| Dimensions (LxWxH)(mm) | 1070*1650 x2010 |
1370x1650 x2010 |
1684x1650 x2010 |
1998x1650 x2010 |
2312x1650 x2010 |
2626x1650 x2010 |
2930x1650 x2010 |
4100x1650 x2010 |
2670x3000 x2010 |
| Power Supply(V/Hz) | 220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
From optical sorting to color vision sorting,and then to multidimensional fusion sorting. From computational intelligence to perceptual intelligence, and then to the iteration of cognitive intelligence, every technological revolution of HT is changing the world we are familiar with.
HT has grown for more than 20 years, and has gone deep into the processing industries such as beans, seeds,nuts, wheat and grains, focusing on advanced technical research on material sorting. HT' S new series of deep learning equipment brings multiple value experiences to customers for multi scenario applications.
New intelligent algorithm & communication architecture,AI deep self-learning
Hardware platform architecture,standardization, modularization,high stability and low failure rate
The effect is not trivial,output increased by 15%，the accuracy is increased by 10%，bring out ratio reduced by 20% .
Pure and extraordinary sorting performance
Expandable design can be equipped with multi-dimensional cameras.
Network cloud platform
Realize real-time data monitoring

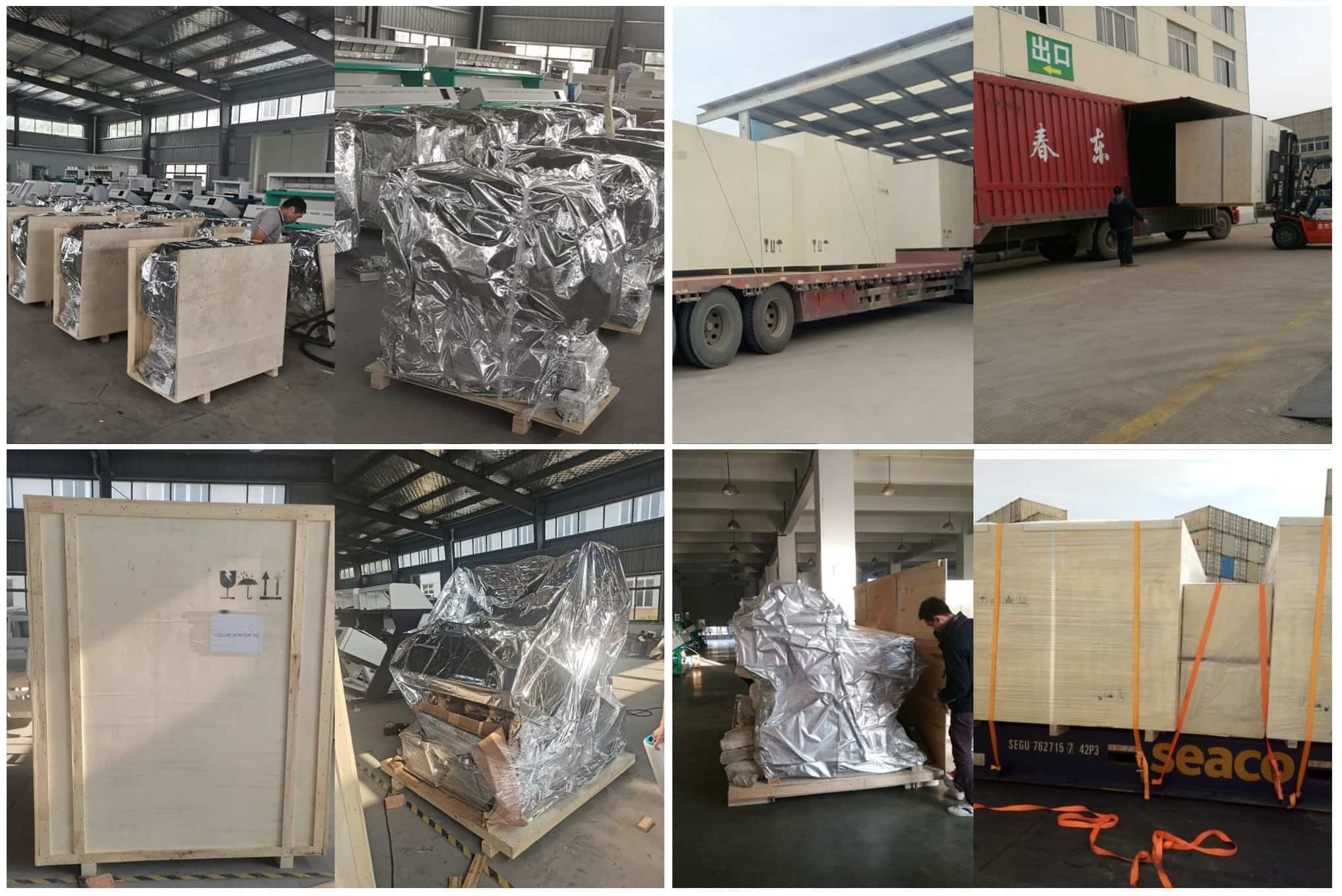

Packaging & Shipping
Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.
Delivery Time: 10- 20 Days after order confirmed.
Payment Terms: TT, Letter of Credit.
Commissioning and Installation
1. On Site Installation and Training Service by our professional engineer ;
2. Study and Learn the Machine Operation in Our Factory.
3. Responsive in 24 hours: Telephone, Email, Video or On Site Solutions by our Technical Experts.
More information about color sorter
Separate Materials By Color
Color sorters are intensively effective in sorting materials of different colors. Rice, grains, millets, and cereals are examples you might need to sort based on colors.
Separate Materials By Sizes
It is prevalent to sort foods by size. In general, a color sorter can sort products by sizes of 0.1mm to 100mm.
Separate Materials By Shapes
Sorting by shape is very useful to classify food like tea leaves and seafood. You can set the parameters you want and let the machine do the work.
Separate Materials By Types
In some cases, you might need to sort materials like nuts, seeds, and beans by type. To classify them efficiently and pick only the healthy ones.

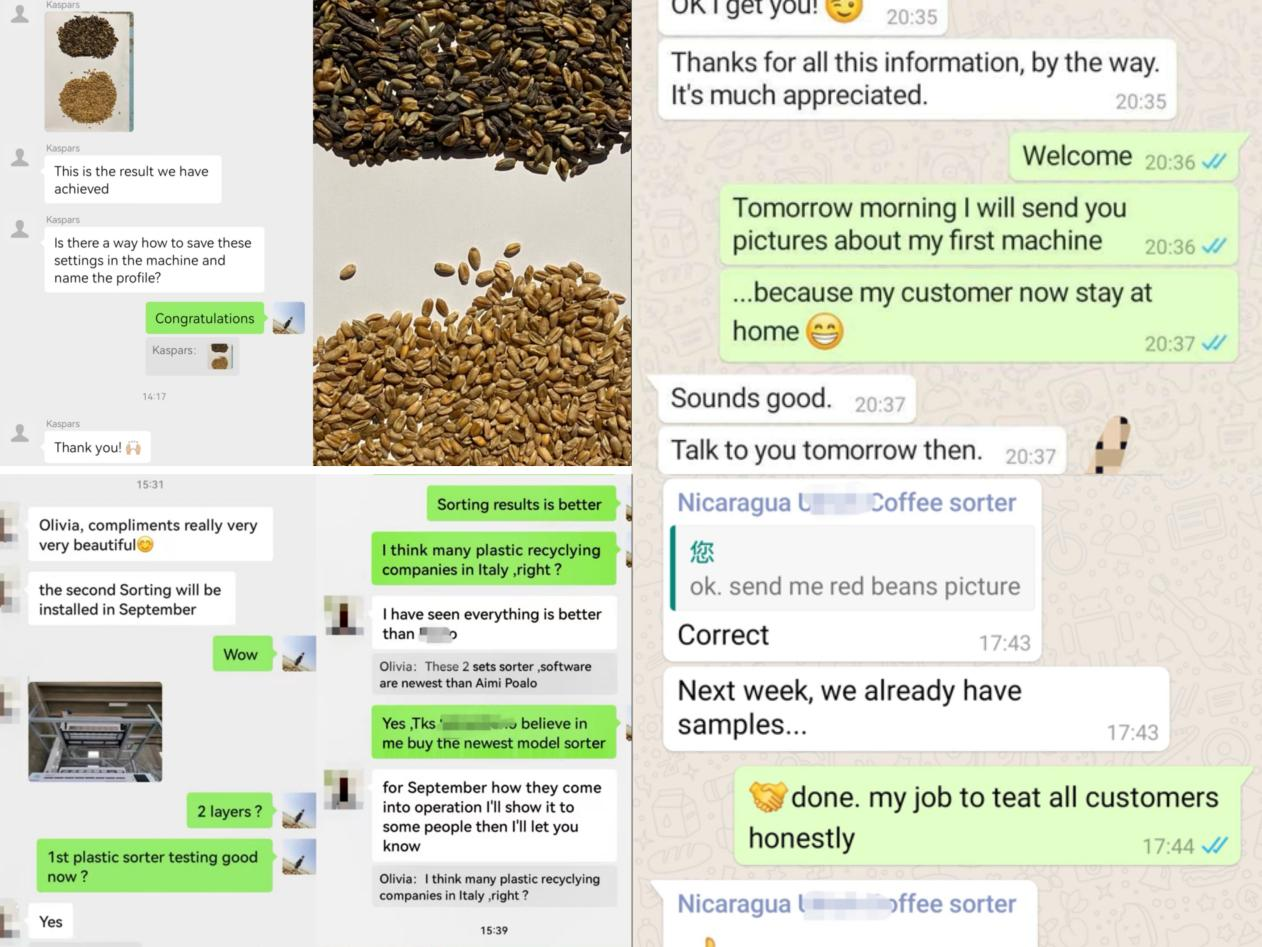

Customer feedback is the driving force behind our progress:
Plywood Case is Suitable for Sea/Road/Air Transport:
1. How to use the machine?
We will supply the Installation instructions and videos for guiding you how to set color sorter.
2. How long about the guarantee period?
Two years. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.
4. Is oversea service available?
Yes, we will send engineer go abroad when you need it.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.
6. If you have agent in our country?
We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.

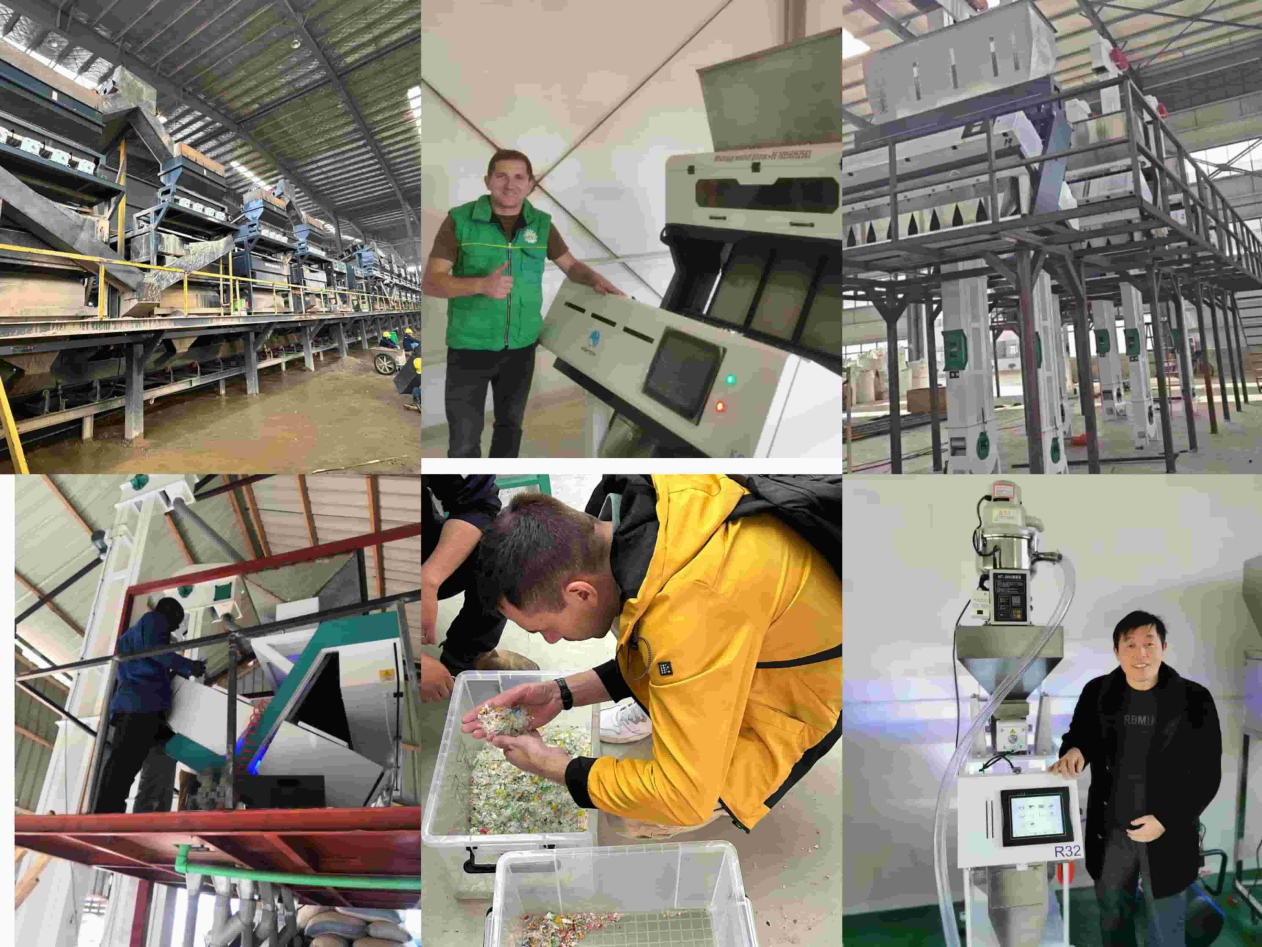

We have many installation cases and working videos.Please contact us freely if you need.
Get your solutions with HT color sorter : www.htcolorsorter.com !
HIGHTECH CCD Peanut Color Sorting is designed in accordance with most exacting standards of food hygiene and excel in the most difficult of food sorting applications where the strictest levels of food quality and safety are demanded.
HT hazelnuts color sorter can separate hazelnut by different colors and grades,it is including roasted,natural and blanched one .HT nut colour sorting machine can remove colored defects such as dark,discolored,shrivelled and rotten hazelnuts,as well as foreign material such as shell,wood and sticks delivering a safe and defect-free nuts.
As a manufacturer of almond color sorters, you offer a solution to a common problem that plagues the almond industry - the need to sort shell pieces from the kernels. Almonds are a highly valuable commodity, and ensuring the highest quality product is essential for maximizing profits.
Peanuts are a popular crop grown in many parts of the world, but sorting them by hand can be a time-consuming and labor-intensive process. Fortunately, peanut color sorters provide a more efficient and cost-effective way to sort peanuts based on their color and quality. In this article, we'll discuss how peanut color sorters work and how they can help farms increase their profits.
Peanut optical sorting machines-Aflatoxin removalPeanut color sorting machine can sort all types of foreign material, including stalks ,glass, shell ,stones, stalks, stems and Johnsongrass as well as invisible to the human eye defects such as aflatoxin from good peanuts like white peanuts ,red peanuts,peeled peanuts and peanuts in shell .
What is cashew nuts color sorter?Cashew nuts color sorter can sort walnuts, pecans, peanuts, pistachios, macadamias, pine nuts,cashew nuts and many other varieties of nuts, HT Cashew Nuts Color Sorting machine can remove of shells and all types of foreign material such as glass, stones (including Quartz), sticks, hull, rot, wood, plastic, metal and aflatoxin. Our multifunctional optical cashew nuts color sorting can also detect and reject defects based on color, shape size, structural differences and biometric characteristics.
Macadamia nut color sorting machine;Queensland nut; macadamia nut color sorter;macadamia nuts color sorting machine .This machine is used to separate the kernel from the shells and remove the most challenging defects to improve the macadamia quality .
Pistachio nut color sorter machine can remove discoloured,broken,worm-bitten, mildewed one from good .It is designed for pistachio,walnut,pecan nut,almond,pine nut,walnut etc .Our newest model nut sorting not only has color sorting ,but also has shape,size ,AI sorting function.For example ,pistachio without or with shells ,both can be sorted well.
