Payment:
T/T,L/CProduct Origin:
Hefei,ChinaShipping Port:
Shanghai / NingboLead Time:
Within 7-20 daysProduct Name:
Peanut color sorterWarranty:
2 yearsMachine Function:
Color/material/shape/size sortingCertificate:

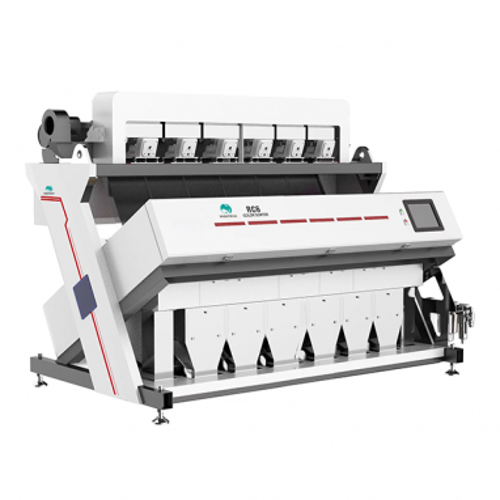

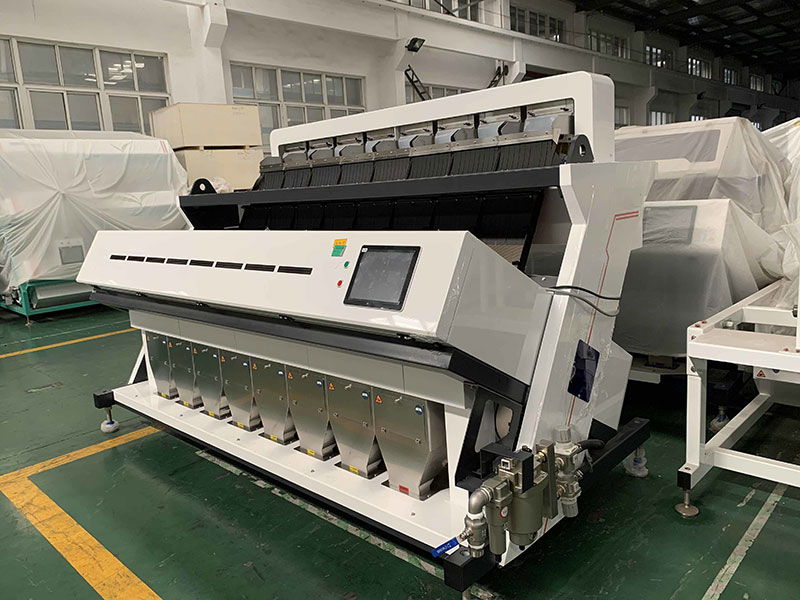

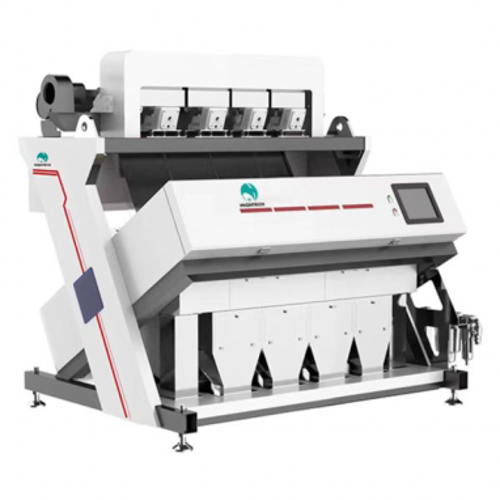

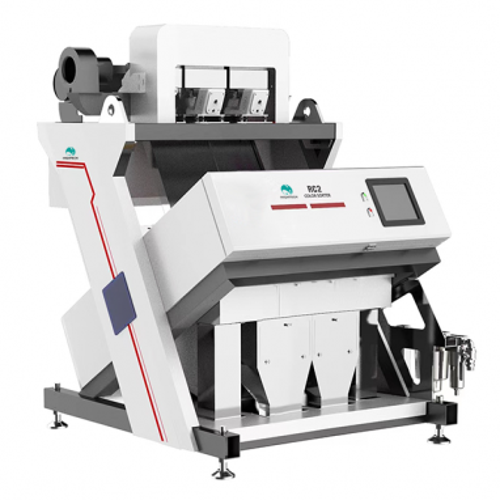

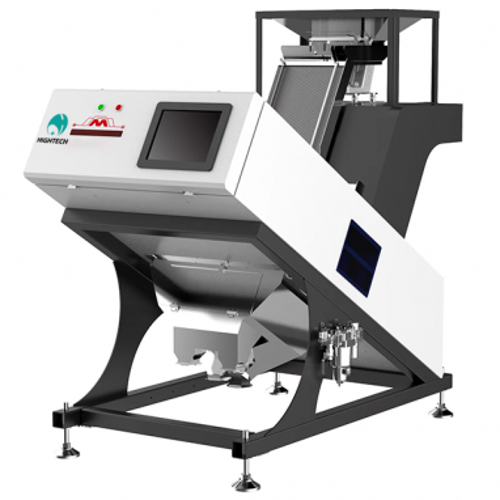

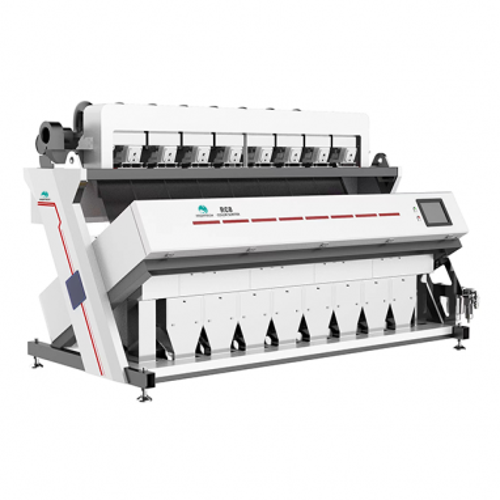

CEHIGHTECH CCD Peanut Color Sorter is designed in accordance with most exacting standards of food hygiene and excel in the most difficult of food sorting applications where the strictest levels of food quality and safety are demanded.
HIGHTECH CCD Peanut Color Sorter is able to sort white peanuts ,red peanuts ,peeled peanuts and peanut in shell,raw,balanced and roasted peanuts.

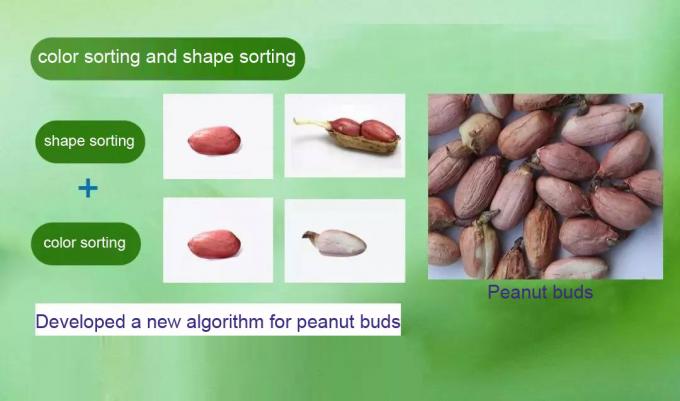

The optical sorting of bud has always been a problem that the industry needs to overcome, especially the bud below 3mm. The traditional color sorter has a certain recognition ability to recognize more than 3mm and colored long buds, but it is almost not selected for short buds of the same color below 3mm. HIGHTECH CCD pioneered the intelligent quality selection technology of bud, high-dimensional image acquisition and fusion positioning analysis, combined with the cloud brain integrated algorithm, to accurately select all kinds of same color and different color bud heads.
The CCD Peanut Color Sorter can detect and remove visible defects such as stones,grass,nut grass,stalks,stems,raisins,shells,
discoloration,soy,bones,wood,corn,glass,and in shell as well as invisible to the human eye defects such as aflatoxin.

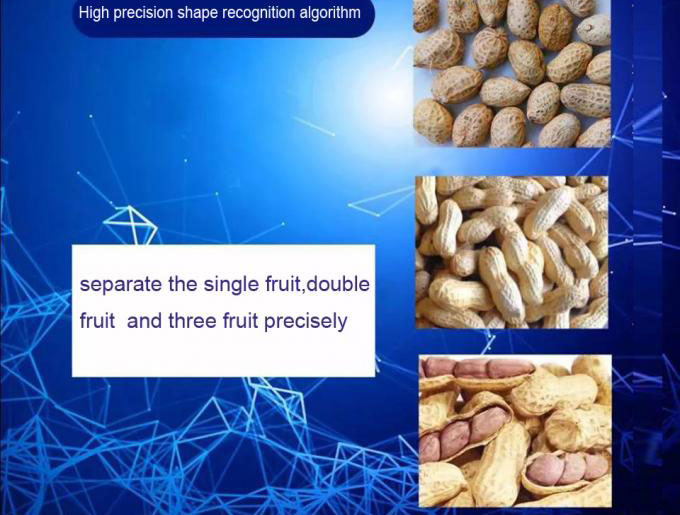

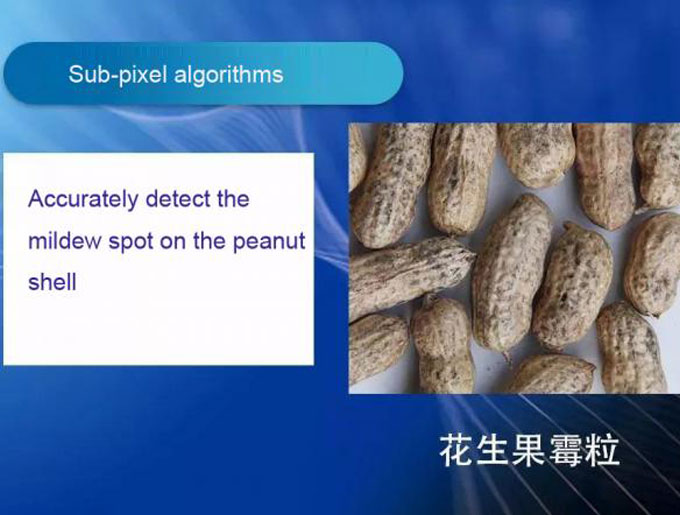

Bionic four-color recognition technology, intelligently identify moldy, yellow rust, gray rust, insect erosion, frozen, diseased and other bad products; intelligent shape selection recognition technology, easy to classify the same diameter oval, length, size , Thickness, fat and thin peanuts of different shapes.
High-dimensional three-dimensional material fingerprint fingerprint sensing technology, high-dimensional holographic collection and analysis of the characteristic fingerprint information of the selected material, ultra-precise removal of glass, plastic, stone, soil, straw, animal feces, shells, slag and other malignant impurities, comprehensive protection of finished products quality.
Model |
Output(T/H) |
Carryover |
Power(KW) |
Voltage |
Weight(kg) |
Dimension(mm) |
MPS1 |
0.5-3 |
>10:1 |
0.3-0.5 |
220V/50HZ |
240 |
975*1550*1400 |
MPS2 |
1-6 |
>10:1 |
0.4-0.65 |
220V/50HZ |
500 |
1240*1705*1828 |
MPS3 |
1.5-9 |
>10:1 |
0.7-1.1 |
220V/50HZ |
800 |
1555*1707*1828 |
MPS4 |
2-12 |
>10:1 |
0.7-1.1 |
220V/50HZ |
1000 |
1869*1707*1828 |
MPS5 |
2.5-15 |
>10:1 |
0.7-1.1 |
220V/50HZ |
1100 |
2184*1707*1828 |
MPS6 |
3-18 |
>10:1 |
1.1-1.9 |
220V/50HZ |
1350 |
2500*1707*1828 |
MPS7 |
3.5-21 |
>10:1 |
1.1-1.9 |
220V/50HZ |
1350 |
2814*1707*1828 |
MPS8 |
2.5-15 |
>10:1 |
1.3-2.2 |
220V/50HZ |
1500 |
3129*1707*1828 |
MPS10 |
5-30 |
>10:1 |
1.4-2.3 |
220V/50HZ |
1750 |
3759*1710*1828 |
MPS12 |
4-25 |
>10:1 |
1.4-2.3 |
220V/50HZ |
1900 |
4389*1710*1828 |
From optical sorting to color vision sorting,and then to multidimensional fusion sorting. From computational intelligence to perceptual intelligence, and then to the iteration of cognitive intelligence, every technological revolution of HT is changing the world we are familiar with.
HT has grown for more than 20 years, and has gone deep into the processing industries such as beans, seeds,nuts, wheat and grains, focusing on advanced technical research on material sorting. HT' S new series of deep learning equipment brings multiple value experiences to customers for multi scenario applications.
New intelligent algorithm & communication architecture,AI deep self-learning
Hardware platform architecture,standardization, modularization,high stability and low failure rate
The effect is not trivial,output increased by 15%,the accuracy is increased by 10%,bring out ratio reduced by 20% .
Pure and extraordinary sorting performance
Expandable design can be equipped with multi-dimensional cameras.
Network cloud platform
Realize real-time data monitoring
1,Increased yield
2,Reduced labor requirements
3,Increased throughput
4,Consistent quality
Our peanut sorting solutions boost throughput and availability while at the same time increasing yield,quality and food safety
