Coffee Bean Sorter / Coffee Color Sorter

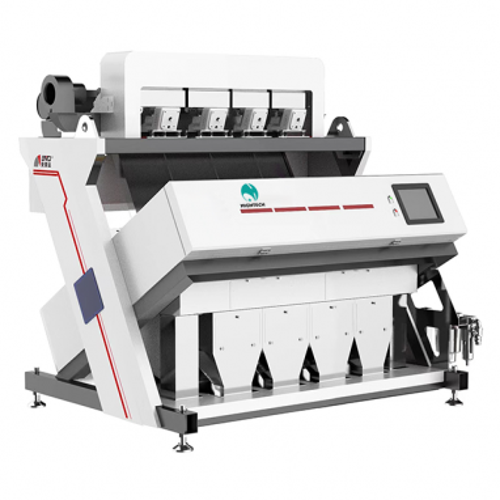

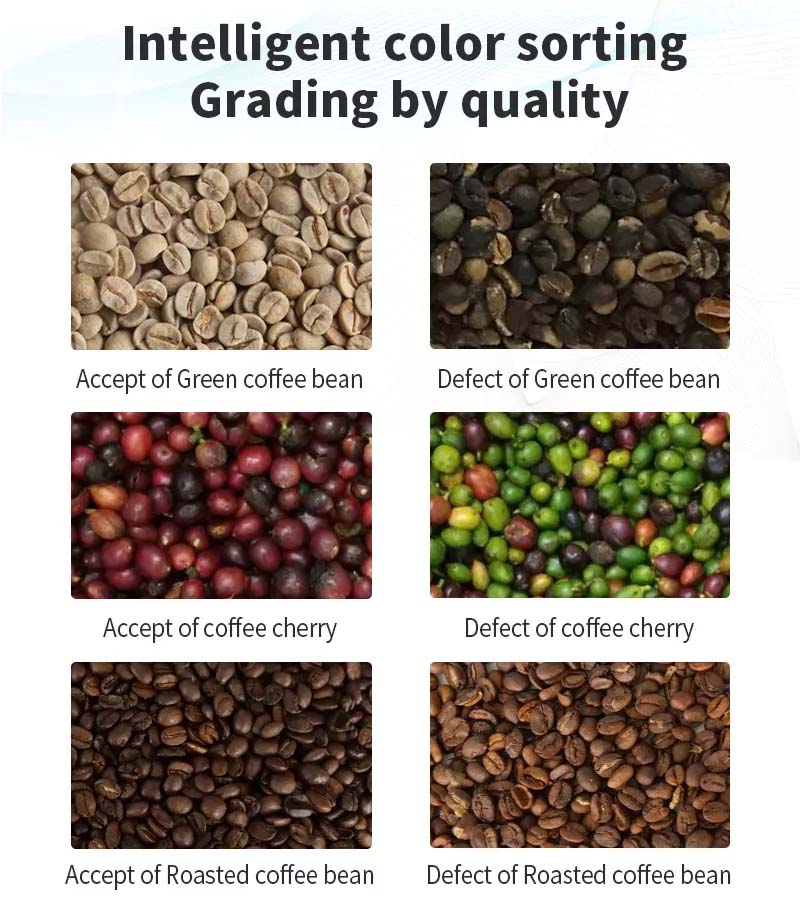

Coffee beans sortex also called coffee beans color sorter or coffee beans optical sorter which can remove the impurities such as sand, broken coffee beans, and mildewed coffee beans on their color difference or over toasted beans and under-toasted coffee beans.

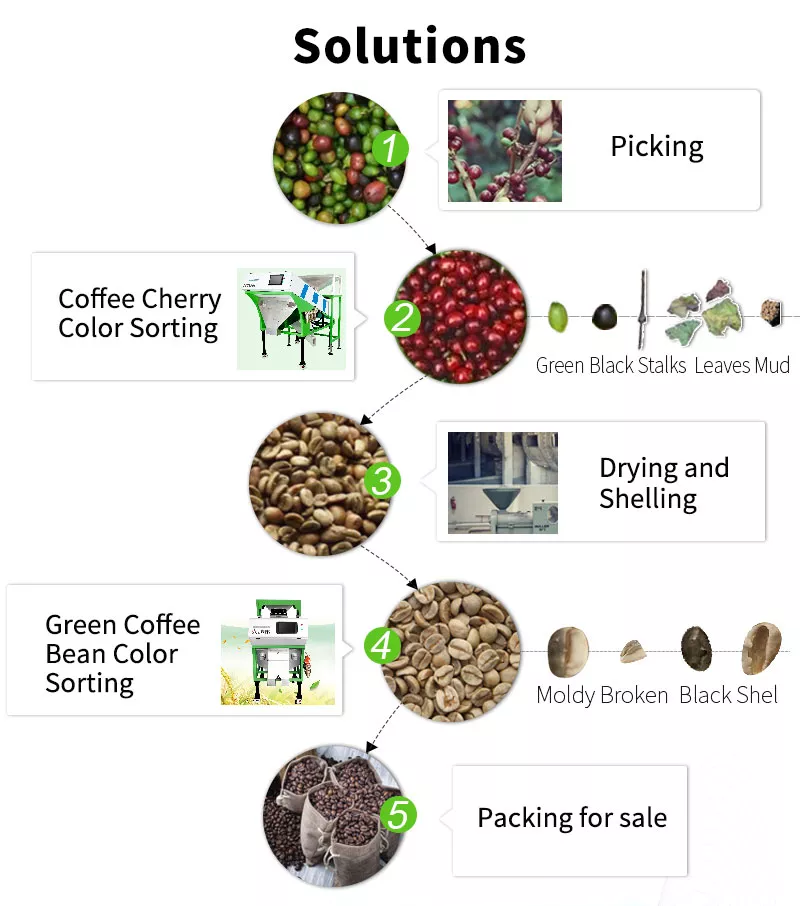

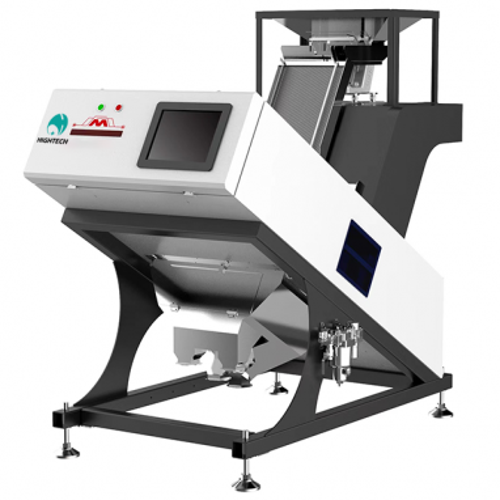

This is a newest modle coffee bean sorting machine which can sort roasted coffee beans and green coffee bean.As one of the coffee machines ,it is popular in the coffee bean process line .We have sold many coffee beans sorting machine so Nicaragua,Ethiopia ectsince last 10 years.We have mini color sorter machine capacity around 100-200kgs/h which is cost-effective and suitable for coffee bean farmers.


Parameter Table

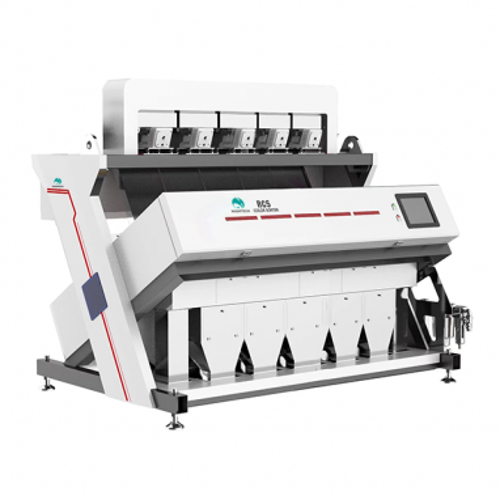

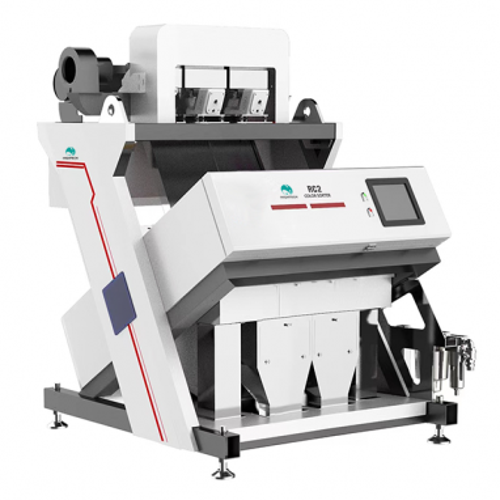

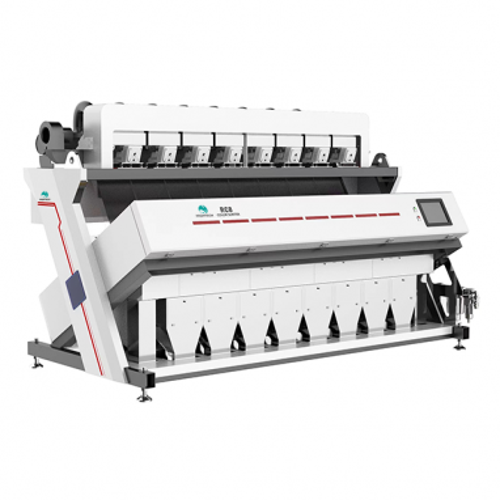

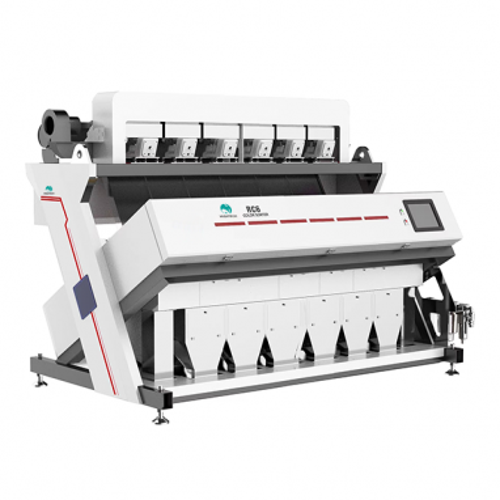

Model Z1-64 Z2-128 Z2-192 Z4-256 Z5-320 Z6-384 Z7-448 Z10-640 Z12-768
Type 6SZM-64 6SZM-128 6SZM-192 6SZM-256 6SZM-320 6SZM-384 6SZM-448 6SZM-640 6SZM-768
Output(t/h) 0.5-1 1.5-4 3-6 5-10 6-10 7-12 8-15 13-24 18-30
Sorting Accuarcy(%) ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99 ≥99.99
Optimized Carryover (Bad:Good) ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1 ≥20:1
Weight (kg) 400 600 700 800 900 1000 1100 1400 1600
Resolution(mm2) 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04
Power(kw) 1.0 1.5 2.0 2.5 3.0 4.0 4.5 6.0 8.0
Dimensions (LxWxH)(mm) 1070*1650
x2010
1370x1650
x2010
1684x1650
x2010
1998x1650
x2010
2312x1650
x2010
2626x1650
x2010
2930x1650
x2010
4100x1650
x2010
2670x3000
x2010
Power Supply(V/Hz) 220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)
220/50
(110/60)

1. The above data is based on the 2% contamination, and real output depends on the material and its contamination.
2. If products update, no further notice. Please refer to the real machine.

From optical sorting to color vision sorting,and then to multidimensional fusion sorting. From computational intelligence to perceptual intelligence, and then to the iteration of cognitive intelligence, every technological revolution of HT is changing the world we are familiar with.

HT has grown for more than 20 years, and has gone deep into the processing industries such as beans, seeds,nuts, wheat and grains, focusing on advanced technical research on material sorting. HT' S new series of deep learning equipment brings multiple value experiences to customers for multi scenario applications.

New intelligent algorithm & communication architecture,AI deep self-learning

Hardware platform architecture,standardization, modularization,high stability and low failure rate

The effect is not trivial,output increased by 15%the accuracy is increased by 10%bring out ratio reduced by 20% .

Pure and extraordinary sorting performance

Expandable design can be equipped with multi-dimensional cameras.

Network cloud platform

Realize real-time data monitoring

More information about color sorter

Separate Materials By Color

Color sorters are intensively effective in sorting materials of different colors. Rice, grains, millets, and cereals are examples you might need to sort based on colors.

Separate Materials By Sizes

It is prevalent to sort foods by size. In general, a color sorter can sort products by sizes of 0.1mm to 100mm.

Separate Materials By Shapes

Sorting by shape is very useful to classify food like tea leaves and seafood. You can set the parameters you want and let the machine do the work.

Separate Materials By Types

In some cases, you might need to sort materials like nuts, seeds, and beans by type. To classify them efficiently and pick only the healthy ones.

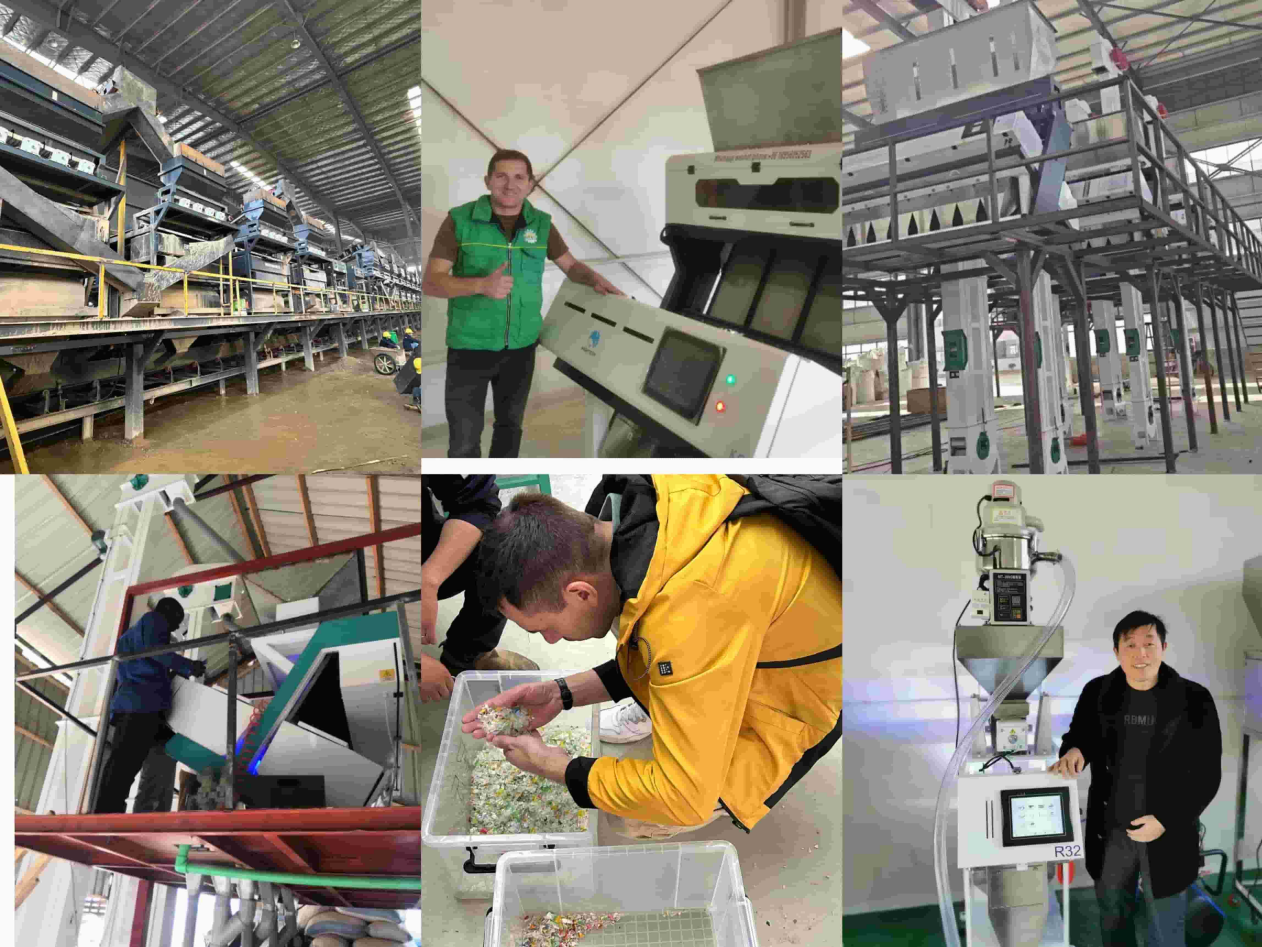

Customer feedback is the driving force behind our progress:

Plywood Case is Suitable for Sea/Road/Air Transport:





Frequently Asked Questions by Customers:

1. How to use the machine?

We will supply the Installation instructions and videos for guiding you how to set color sorter.



2. How long about the guarantee period?

Two years. And we supply lifelong software upgrade services for our customers.



3. Can you supply the air compressor, air tank and air filters?

Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.



4. Is oversea service available?

Yes, we will send engineer go abroad when you need it.



5.How to calculate Installation personnel cost?

On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.



6. If you have agent in our country?

We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.

We have many installation cases and working videos.Please contact us freely if you need.
