Payment:
T/T,L/CProduct Origin:
Hefei,ChinaShipping Port:
Shanghai / NingboLead Time：
Within 7-20 daysProduct Name:

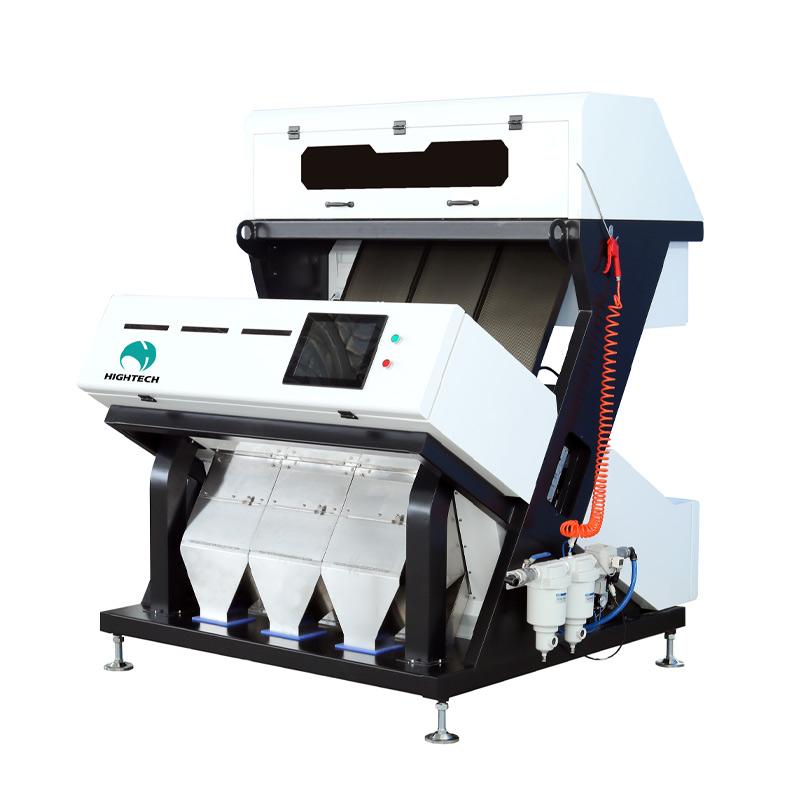

Sesame Color SorterWarranty:
2 yearsMachine Function:
Color/material/shape/size sortingCertificate:
CE
Sesame Color Sorter Products Features
1) The min. identify can be up to 0.04 mm2 , makes color sorting reach a new high level, meets demand of accurate sorting.
2) Advanced and Reasonable optics design guarantees accurate sorting.
3) Double sorting process guarantees final ideal sorting result.
4) Reasonable channel assigns suitable for sorting grain with various size.
5) Advanced production equipments from Germany and strict management under ISO9001:2008 guarantees machines' precision.
6) Great Data transferring Bandwidth guarantees the data transferred rapidly, makes machine perform consistently and stably.
7) Latest Patented technology of image processing algorithm upgrades the accuracy, and accelerates the operation speed.
8) Several sorting modes meet various requirements.
9) Advanced system design with China Patent guarantees machine run stably for a long time.
10) Concise touch panel from Japan helps customer operate easily.
Parameter Table
| Model | Z1-64 | Z2-128 | Z2-192 | Z4-256 | Z5-320 | Z6-384 | Z7-448 | Z10-640 | Z12-768 |
| Type | 6SZM-64 | 6SZM-128 | 6SZM-192 | 6SZM-256 | 6SZM-320 | 6SZM-384 | 6SZM-448 | 6SZM-640 | 6SZM-768 |
| Output(t/h) | 0.5-1 | 1.5-4 | 3-6 | 5-10 | 6-10 | 7-12 | 8-15 | 13-24 | 18-30 |
| Sorting Accuarcy(％) | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
| Optimized Carryover (Bad:Good) | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 |
| Weight (kg) | 400 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1400 | 1600 |
| Resolution(mm2) | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 |
| Power(kw) | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 4.5 | 6.0 | 8.0 |
| Dimensions (LxWxH)(mm) | 1070*1650 x2010 |
1370x1650 x2010 |
1684x1650 x2010 |
1998x1650 x2010 |
2312x1650 x2010 |
2626x1650 x2010 |
2930x1650 x2010 |
4100x1650 x2010 |
2670x3000 x2010 |
| Power Supply(V/Hz) | 220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
1. The above data is based on the 2% contamination, and real output depends on the material and its contamination.
2. If products update, no further notice. Please refer to the real machine.
From optical sorting to color vision sorting,and then to multidimensional fusion sorting. From computational intelligence to perceptual intelligence, and then to the iteration of cognitive intelligence, every technological revolution of HT is changing the world we are familiar with.
HT has grown for more than 20 years, and has gone deep into the processing industries such as beans, seeds,nuts, wheat and grains, focusing on advanced technical research on material sorting. HT' S new series of deep learning equipment brings multiple value experiences to customers for multi scenario applications.
New intelligent algorithm & communication architecture,AI deep self-learning
Hardware platform architecture,standardization, modularization,high stability and low failure rate
The effect is not trivial,output increased by 15%，the accuracy is increased by 10%，bring out ratio reduced by 20% .
Pure and extraordinary sorting performance
Expandable design can be equipped with multi-dimensional cameras.
Network cloud platform
Realize real-time data monitoring
Examples Of Sorting
Packaging & Shipping
Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.
Delivery Time: 10- 20 Days after order confirmed.
Payment Terms: TT, Letter of Credit.
Commissioning and Installation
1. On Site Installation and Training Service by our professional engineer ;
2. Study and Learn the Machine Operation in Our Factory.
3. Responsive in 24 hours: Telephone, Email, Video or On Site Solutions by our Technical Experts.
More information about color sorter
Separate Materials By Color
Color sorters are intensively effective in sorting materials of different colors. Rice, grains, millets, and cereals are examples you might need to sort based on colors.
Separate Materials By Sizes
It is prevalent to sort foods by size. In general, a color sorter can sort products by sizes of 0.1mm to 100mm.
Separate Materials By Shapes
Sorting by shape is very useful to classify food like tea leaves and seafood. You can set the parameters you want and let the machine do the work.
Separate Materials By Types
In some cases, you might need to sort materials like nuts, seeds, and beans by type. To classify them efficiently and pick only the healthy ones.
We have many installation cases and working videos.Please contact us freely if you need.
Customer feedback is the driving force behind our progress:
Plywood Case is Suitable for Sea/Road/Air Transport:
1. How to use the machine?
We will supply the Installation instructions and videos for guiding you how to set color sorter.
2. How long about the guarantee period?
Two years. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.
4. Is oversea service available?
Yes, we will send engineer go abroad when you need it.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.
6. If you have agent in our country?
We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.
Seed sorters can sort all kinds of seeds including vegetable,herbage seeds etc .It can remove impurity and discolored out from good one .Seeds color sorter is suitable for both small and large -scale processing of field seeds and offer precision sorting to maximised yields and profits.
Buckwheat color sorter machine can sort buckwheat,oats,rye,quinoa etc by different colors and sizes.It can remove the foreign materials from good one alos.As a buckwheat color sorter manufacturer based in China, you are offering a high-quality product that can help businesses sort buckwheat quickly and efficiently. With advanced technology and exceptional performance, your buckwheat color sorter offers many benefits that can help your potential customers increase their productivity, save time, and reduce waste.
Our newest intelligent barley color sorter can sort wheat,buckwheat,oats,rye,sorghum etc .It can remove discolored and unwanted foreign materials.Barley is an important cereal crop that is grown all around the world. However, the quality of barley can vary greatly depending on factors such as the location of the farm, the climate, and the level of care taken during harvesting and processing. That's where a barley color sorting machine comes in - it can help ensure that only high-quality barley grains make it to market.
Corn optical color sorter can remove the discolored and unwanted one out from good one .Like the black spot ,foreign materials etc.Maize, also known as corn, is one of the most widely grown crops in the world. Its quality is a critical factor for both farmers and consumers. However, traditional sorting methods for maize can be slow, inconsistent, and labor-intensive.
Sesame seeds are a valuable crop, used in many food products and culinary dishes. However, their small size and dark color can make it difficult to separate high-quality seeds from defective or impure ones. That's where sesame seed color sorting machines come in. These machines use advanced imaging technology to sort sesame seeds based on their color and quality, resulting in a higher-quality product that is more desirable to buyers. In this article, we'll discuss how sesame seed color sorting machines work and the advantages they offer for sesame seed processing.
Sunflower seeds optical sorter can sort all types of foreign shelled sunflower seeds ,including the white color, yellow color, dark color shelled seeds and sunflower seeds in kernel, to get rid of the dark seeds/worm bited seeds.
Ore sorting is used in the early stages of mineral processing and essentially involves separating high-grade from low-grade materials. The technology behind ore sorting has evolved, meaning the process can now operate at higher throughputs and accuracy. Given these advances in technology, the question is: is ore sorting suited to your operation?How dose ore sorting help you ?
X-ray colour sorting machine for foreign object is a new generation machine developed by the company based on the latest X-ray imaging and image processing technology. It is fully compatible with European standards and is suitable for bulk materials such as nuts,beans, kernels,cereals,grain, dehydrated vegetables. The detection can identify and eliminate the malignant impurities such as glass, metal, stone and calcified bone mixed in the product, and further protect the product quality of the food enterprise.
