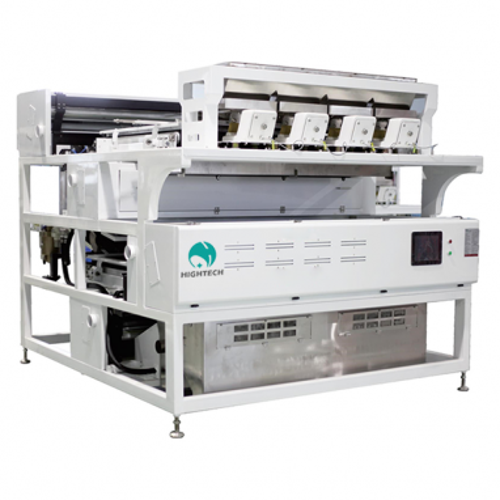

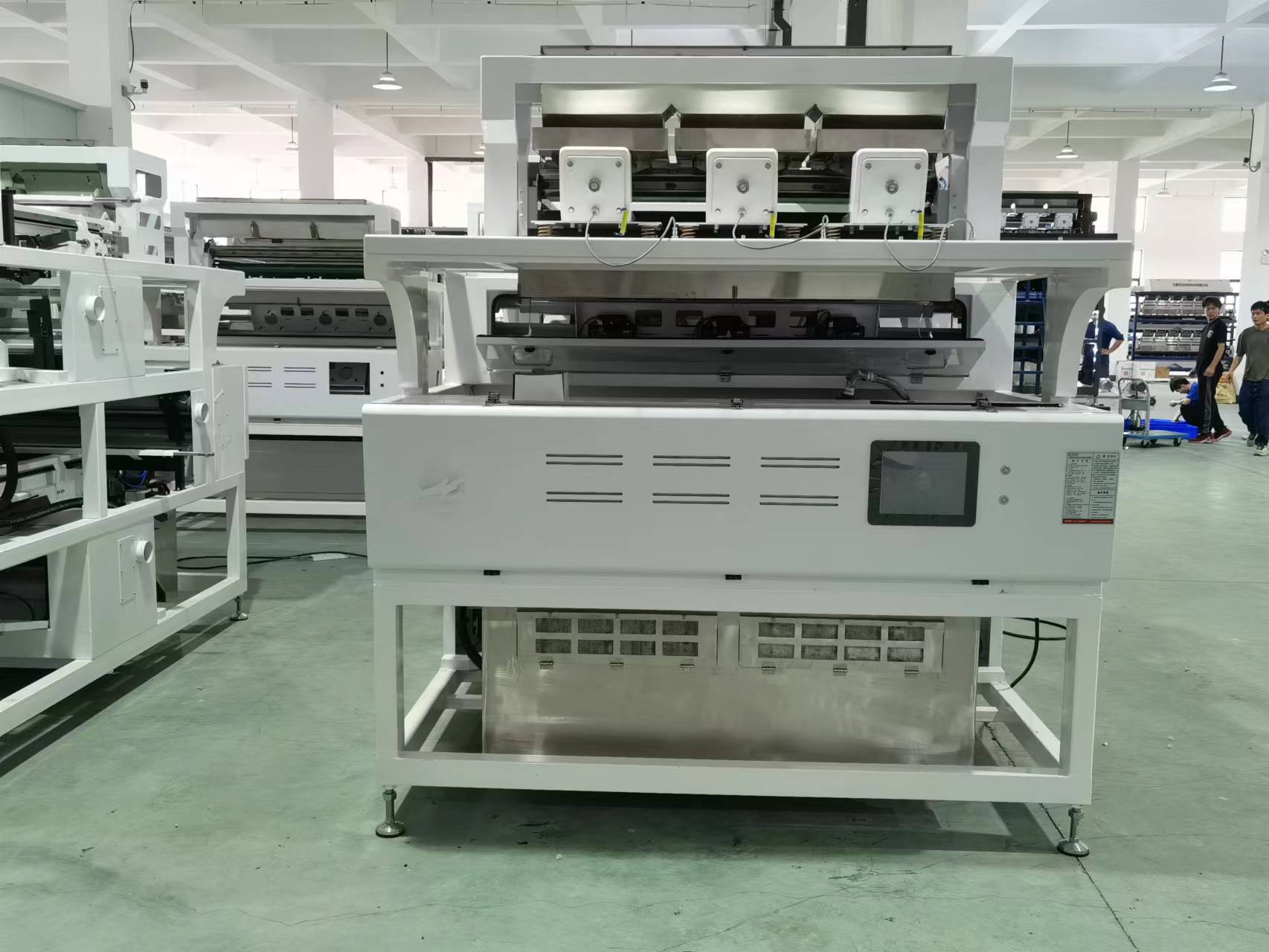

Ore Color Sorter Machine / Ore Sorting

Quartz ore sorting has been widely used in intelligent separation and supporting services of industrial raw materials such as lithium,ore, plate quartz sand ,mineral etc, and has been widely praised by customers.It can identity discoloured rejected quartz like black ,yellow ,grey out from good one.

Ore grits color sorter machine

Ore sorting color sorter can identifying and removing waste & un-wanted & colorbelow-grade ore to preconcentrate the process plant feed.

HT has been developed for sorting different kinds of quartz, ores and gemstones such as talc,magnesite,calcite/dolomite, nickel,  manganese, ore etc.It can sorting quartz fully automatically on the basis of their different colour, shape,brightness or the material itself.

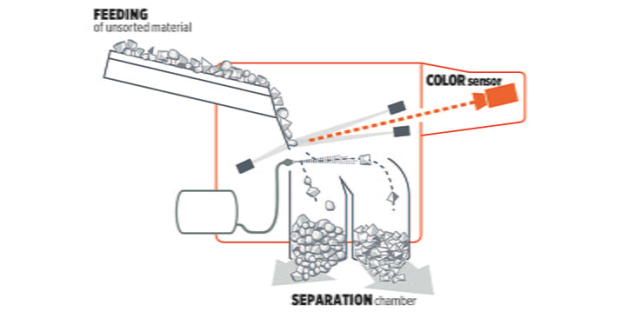

The ore color sorting machine is an equipment that uses photoelectric detection technology to automatically sort out the heterochromatic particles in the granular material according to the difference in the optical properties of the material. After color separation, the ore has high purity and uniform color, which greatly improves the utilization rate of the mineral and doubles its value,the sorting range is 1-40mm.

The mining industry consumes 2%-3% of the world’s energy. That’s the same amount of energy used by the entire airline industry. Our ore sorting machine  can reduce that energy consumption by 15%.

With the help of high-resolution full-color CCD, the quartz color sortex machine of HT has high definition and can recognize subtle color differences and tiny defects. Moreover, the high-speed parallel data processing chip and the real-time and efficient image acquisition and processing system greatly improve the working efficiency of the color sorter, reduce the material take-out ratio and reduce unnecessary losses for customers,image recognition and AI algorithm technology.



 Depending on the application of optical sorting plants following advantages arise:

• Replacement of selective mining of deposits

• Replacement of manual sorting

• Achievement of higher qualities

• Higher recovery of the mine, longer lifetime

• Early separation of impurities in the sorting treatment process, cost-effective

• Processing of dumped material



Model

BTDKS1200-A

Power(KW)

8



Capacity(T/H)

40(6cm≦d≦10cm)



Air Pressure(Mpa)

0.6(6cm≦d≦10cm)

20(3cm≦d≦6cm)

0.5(3cm≦d≦6cm)

12(1cm≦d≦3cm)

0.4(1cm≦d≦3cm)

8(d≦1cm)





0.3(d≦1cm)

Sorting accuracy(%)

≧99.9

Consumotion(L/min)

≦5000

Optimized carryover rate

≧30:1

Weight(kg)

3500

Power Supply

AC220V 50HZ

Dimension(LxWxH:mm)

4800*3352*2660

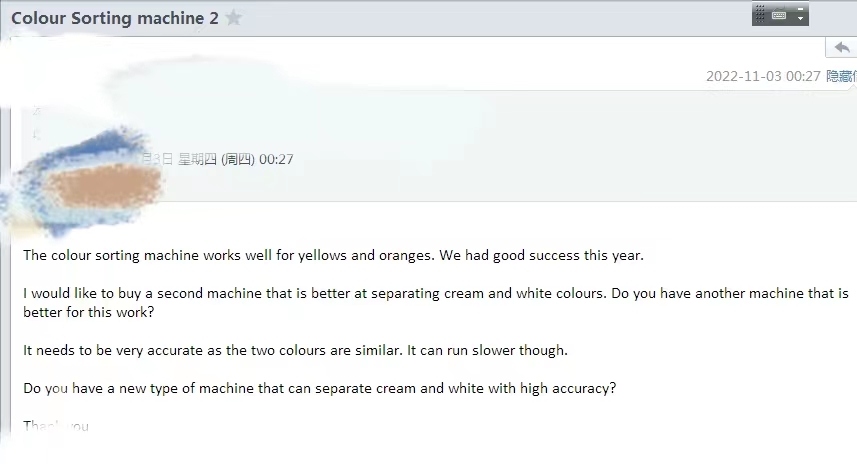

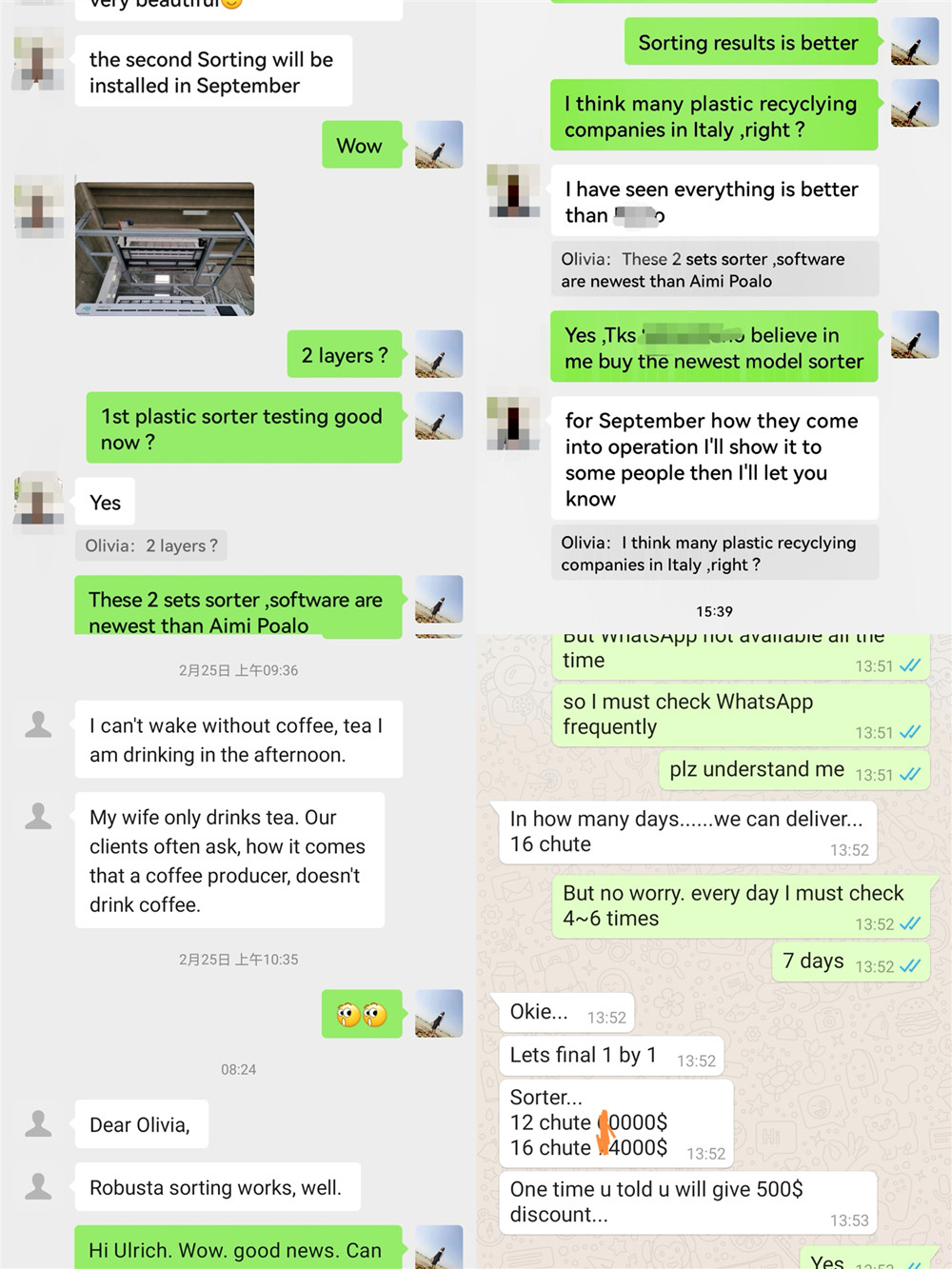

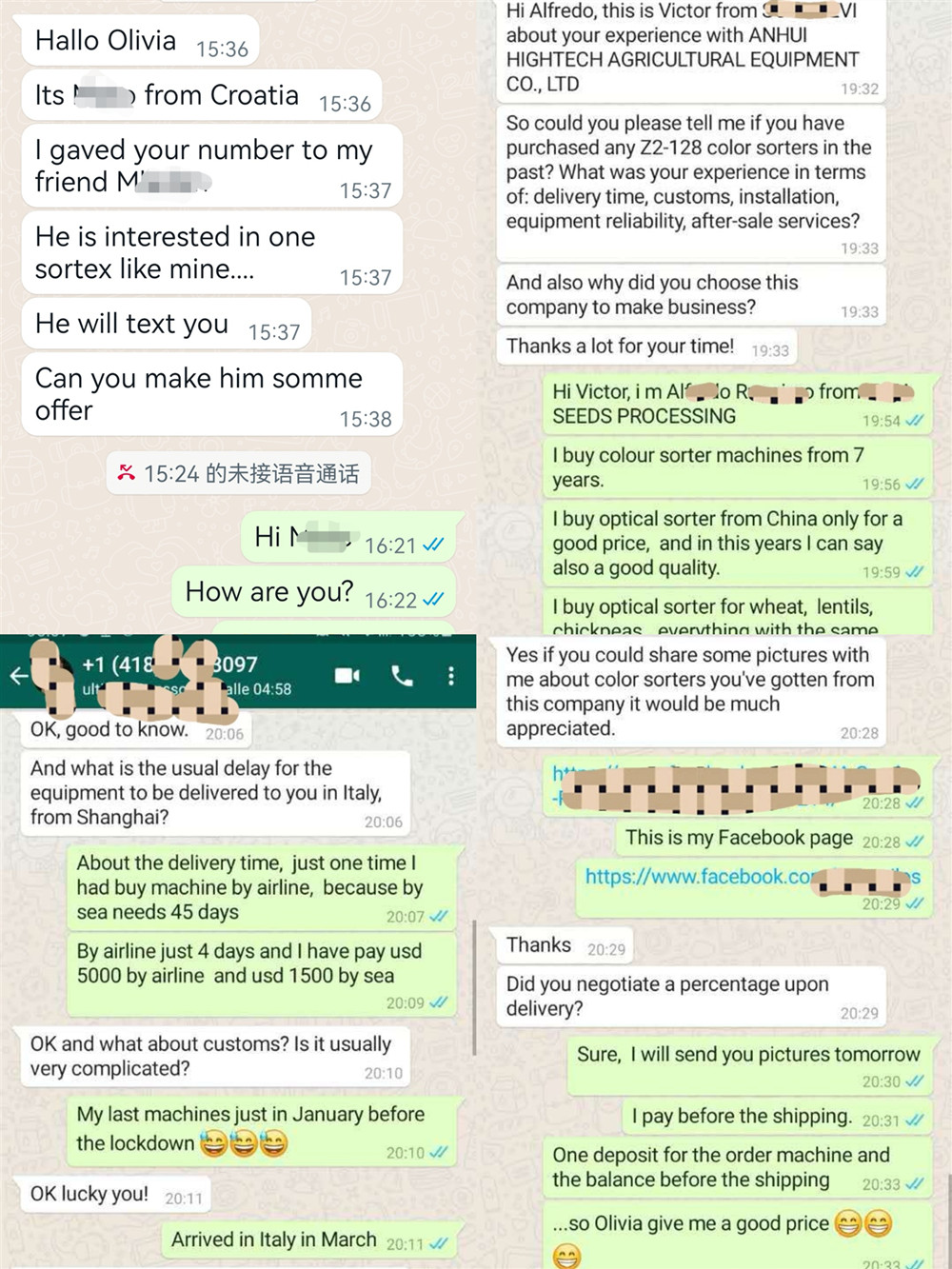

Customer feedback is the driving force behind our progress:

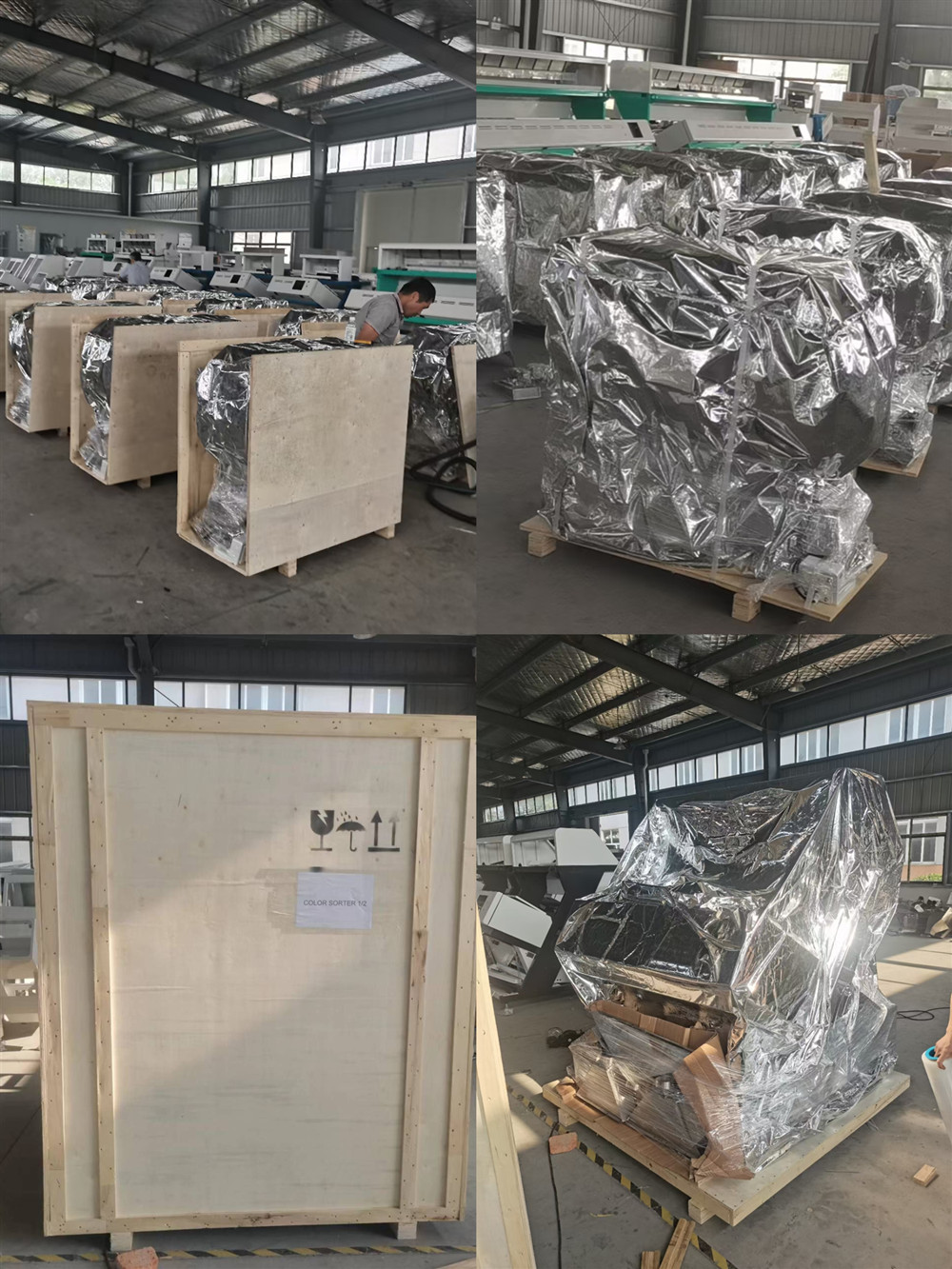

Plywood Case is Suitable for Sea/Road/Air Transport:

Frequently Asked Questions by Customers:

1. How to use the machine?

We will supply the Installation instructions and videos for guiding you how to set color sorter.



2. How long about the guarantee period?

Two years. And we supply lifelong software upgrade services for our customers.



3. Can you supply the air compressor, air tank and air filters?

Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.



4. Is oversea service available?

Yes, we will send engineer go abroad when you need it.



5.How to calculate Installation personnel cost?

On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.



6. If you have agent in our country?

We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.

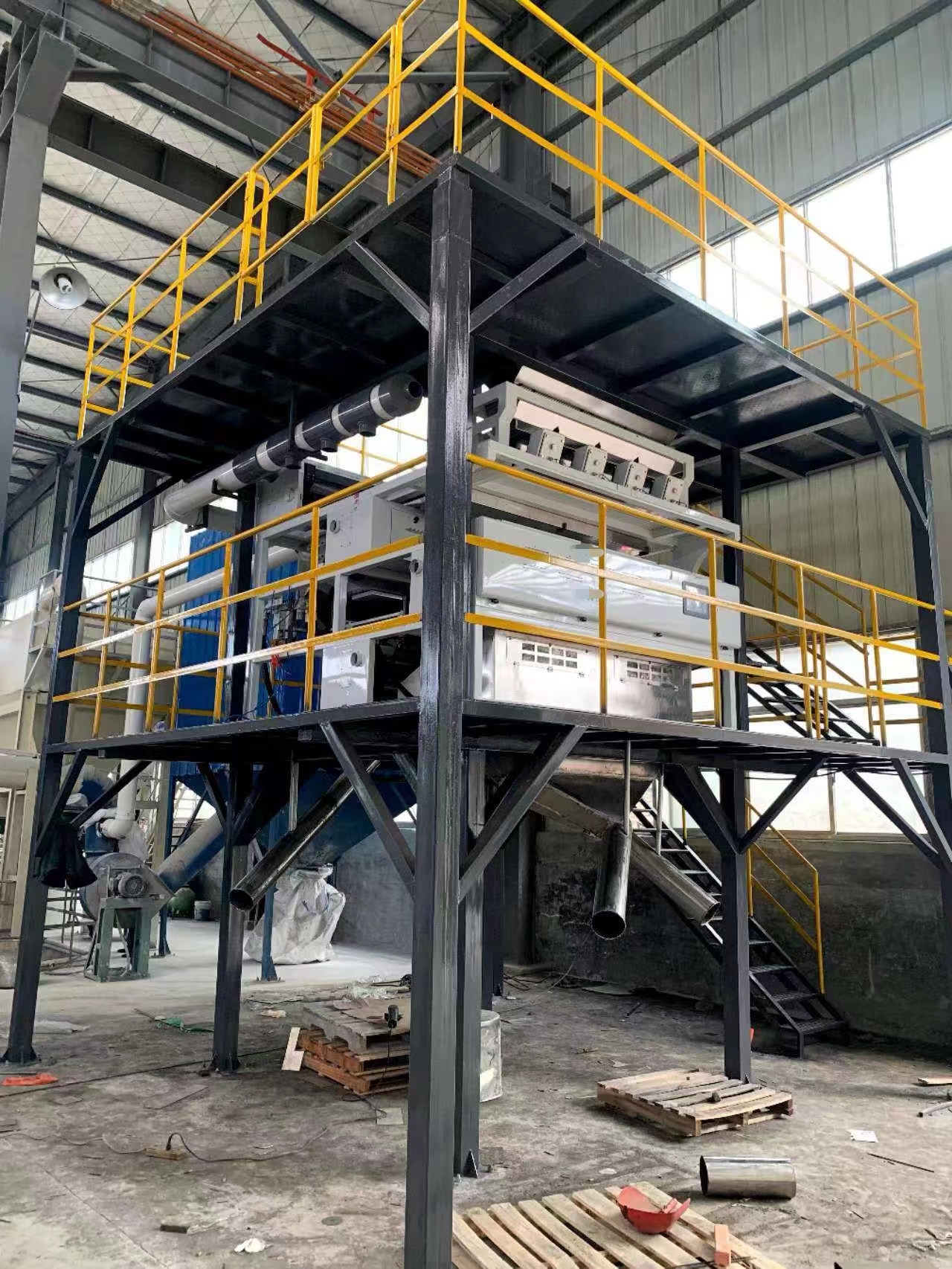

We have many installation cases and working videos.Please contact us freely if you need.
